Remove/Install LED Headlamp Range Adjustment Control Unit - AR82.10-P-4661S

Model 223

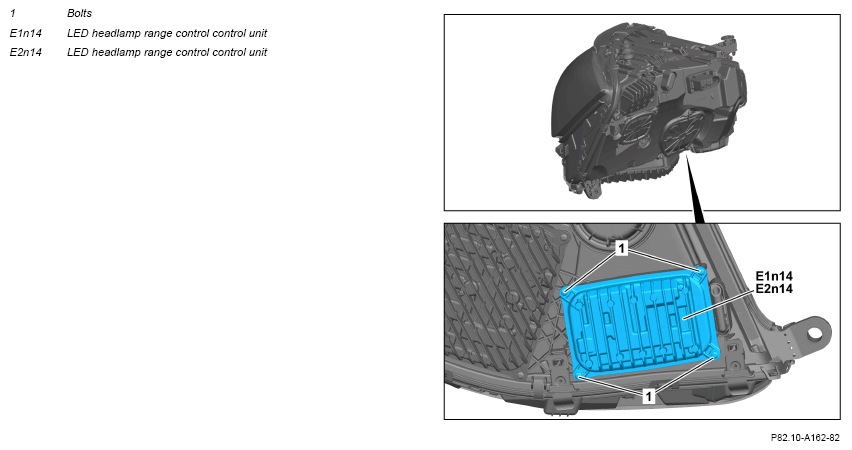

Fig 1: LED Headlamp Range Adjustment Control Unit Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove corresponding front lamp unit.		AR82.10-P-4733S
2	Remove bolts (1).
3	Pull out LED headlamp range control, control unit (E1n14, E2n14) far enough until electrical connectors can be disconnected.	Ensure that seal is correctly seated.
4	Release and disconnect electrical connectors and remove LED headlamp range control, control unit (E1n14, E2n14).
5	Install in the reverse order.
6	Commission LED headlamp range control, control unit (E1n14, E2n14).
			AD00.00-P-2000-06FR
