Remove/Install Front Sound Generator - AR82.27-P-0003SE
Model 223 with engine 256
with code ME10 (Hybrid vehicle (plug-in, PHEV))
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove bottom front engine compartment lining. | AR61.20-P-1105S | |

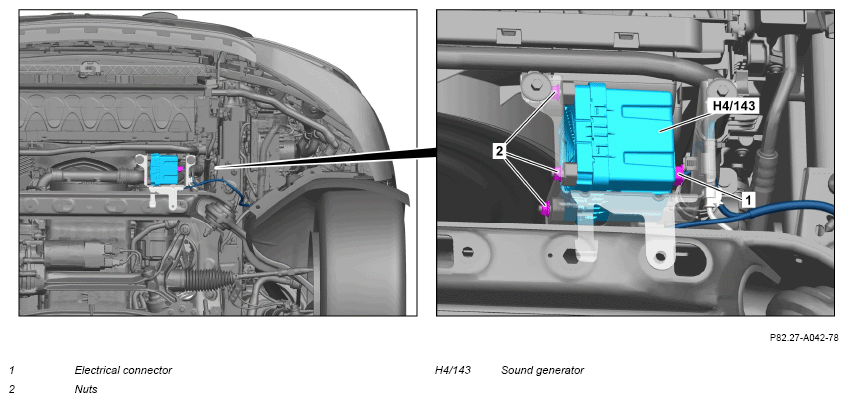

| 2 | Release electrical connector (1) and disconnect. | ||
| 3 | Remove nuts (2). | ||
| 4 | Remove sound generator (H4/143). | ||
| 5 | Install in the reverse order. | ||
| 6 | Perform commissioning of sound generator (H4/143). | When replacing sound generator (H4/143). | |
| AD00.00-P-2000-06FR |
