Remove/Install Front Passenger Side Ambient Lighting Control Unit Of Instrument Panel - AR82.20-P-0013SA

Model 223

with code 878 (CONNECTED LIGHT ambient lighting)

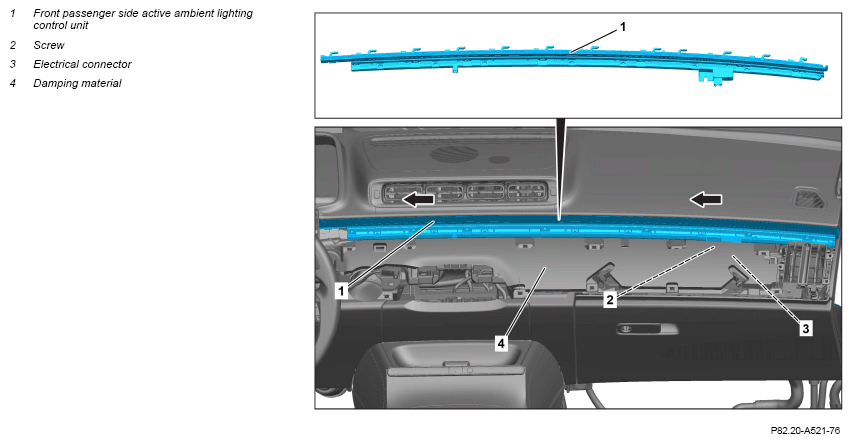

Fig 1: Front Passenger Side Ambient Lighting Control Unit Of Instrument Panel Components Location - Model 223 With Code 878

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove trim element from passenger-side instrument panel.		AR68.10-P-1187S
2	Remove bolt (2).
3	Lift dampening (4) and release and disconnect electrical connector (3).
4	Remove front passenger side active ambient lighting control unit (1) in direction of arrow.	Do not apply any bending forces. Otherwise the front passenger side active ambient lighting control unit (1) will be damaged. Ensure that the front passenger side active ambient lighting control unit (1) correctly latches into place.
5	Install in the reverse order.
	Finishing activity
6	Carry out commissioning of front passenger side active ambient lighting control unit (1).	When replacing the front passenger side active ambient lighting control unit (1).
			AD00.00-P-2000-06FR
