Remove/Install Display In Rear - AR82.60-P-7720S
Model 223
with code 854 (Rear Seat Entertainment System Plus)
Model 223
with code 864 (Rear compartment entertainment package)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||

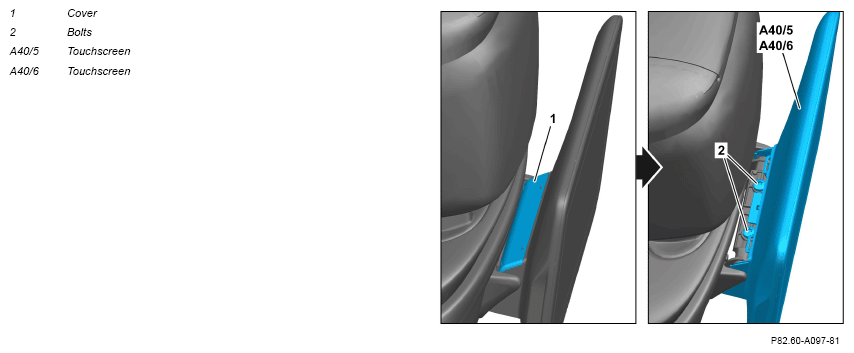

| 2 | Release cover (1) using a suitable screwdriver and remove. | ||
| 3 | Remove screw/bolts (2). | ||
| 4 | Remove touchscreen (A40/5, A40/6) until the electrical connectors are accessible. | ||
| 5 | Disconnect electrical connectors at touchscreen (A40/5, A40/6) and remove touchscreen (A40/5, A40/6). |
||
| 6 | Install in the reverse order. |
