Remove/Install Control Unit With Sound Generator For Engine Sound - AR82.27-P-0002S
Model 223
with code B53 (External noise sound generator for hybrids and EV)

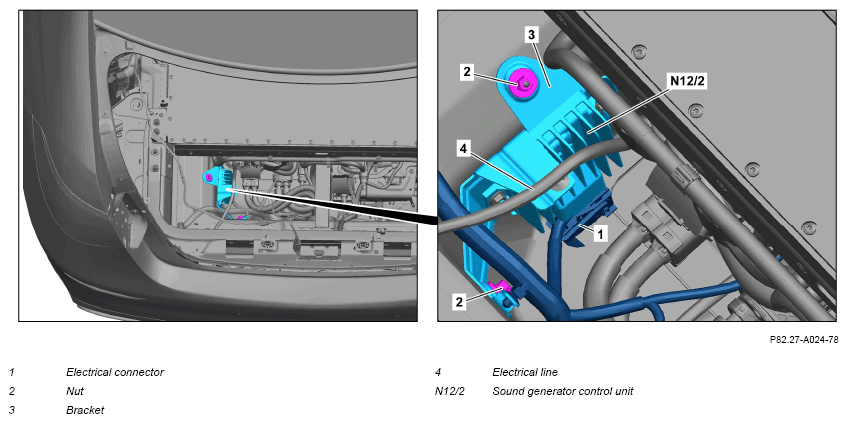

Fig 1: Control Unit With Sound Generator For Engine Sound Components Location - Model 223 With Code B53
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Remove spare wheel well trim. | AR68.30-P-4620S | |
| 3 | Disconnect electrical connector (1) and place associated wiring harness to one side. | ||
| 4 | Unclip electric line (4). | Fig 2 | |
| 5 | Remove nuts (2). | ||
| 6 | Remove holder (3) with sound generator control unit (N12/2). | ||
| 7 | Remove sound generator control unit (N12/2) from holder (3). | When replacing sound generator control unit (N12/2). | |
| 8 | Install in the reverse order. | ||
| 9 | Commission sound generator control unit (N12/2). | When replacing sound generator control unit (N12/2). | |
