Remove/Install Control Unit For Mobile Phone Cradle In Rear Passenger Compartment - AR82.70-P-0017SB
Model 223
with code 224 (Individual rear seats)
with code 326 (Premium rear armrest)
with code 898 (Wireless telephone charging in rear passenger compartment)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Open rear stowage compartment. | ||

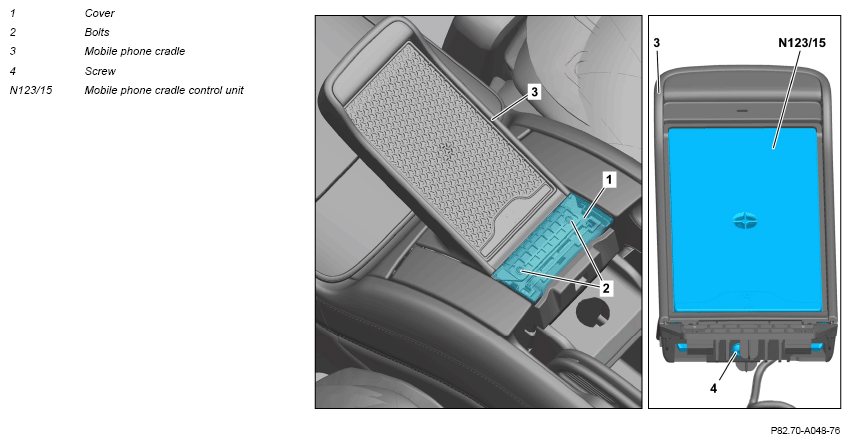

| 2 | Unclip cover (1). | Fig 1 | |
| 3 | Remove screw/bolts (2). | ||
| 4 | Unclip mobile phone cradle (3) with mobile phone cradle control unit (N123/15) and remove until the associated electrical connector is accessible. | ||
| 5 | Disconnect electrical connector of mobile phone cradle control unit (N123/15). | ||
| 6 | Remove mobile phone cradle (3) with mobile phone cradle control unit (N123/15). | ||
| 7 | Unscrew bolt (4). | ||
| 8 | Remove mobile phone cradle control unit (N123/15). | ||
| 9 | Install in the reverse order. | ||
| 10 | Commission mobile phone cradle control unit (N123/15). | When replacing the mobile phone cradle control unit (N123/15). | |
| AD00.00-P-2000-06FR |
