Remove/Install Control Unit For Mobile Phone Cradle In Rear Passenger Compartment - AR82.70-P-0017SA
Model 223
with code 898 (Wireless telephone charging in rear passenger compartment)
except code 224 (Individual rear seats)
except code 326 (Premium rear armrest)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Fold armrest (1) forward. | ||
| 3 | Unhook fabric cover from rear armrest (1). | ||
| 4 | Remove screw/bolts (2). | ||
| 5 | Open stowage compartment (3). | ||
| 6 | Remove lock of stowage compartment (3) and unscrew screw (4) underneath. | ||

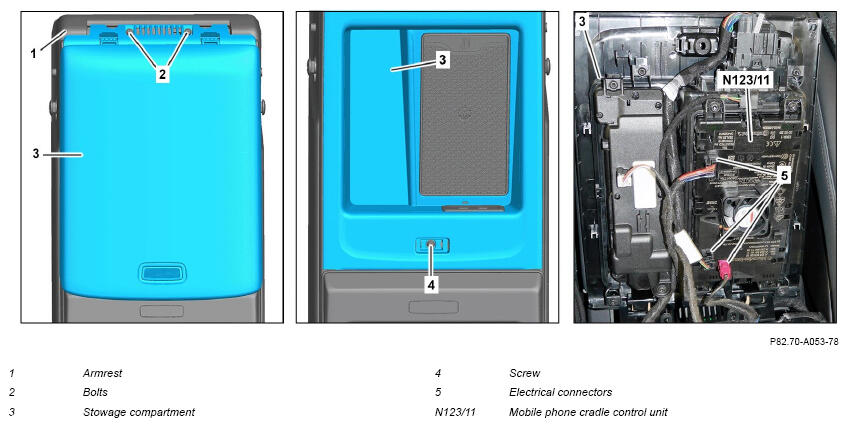

| 7 | Remove stowage compartment (3) and place to one side with electric lines connected. | Fig 1 | |
| 8 | Disconnect electrical connectors (5). | ||
| 9 | Remove mobile phone cradle control unit (N123/11). | ||
| 10 | Install in the reverse order. | ||
| 11 | Commission mobile phone cradle control unit (N123/11). | When replacing the mobile phone cradle control unit (N123/11). | |
| AD00.00-P-2000-06FR |
