Remove/Install Control Unit For Mobile Phone Cradle In Rear Passenger Compartment - AR82.70-P-0017S
Model 223
with code 224 (Individual rear seats)
with code 898 (Wireless telephone charging in rear passenger compartment)
except code 326 (Premium rear armrest)

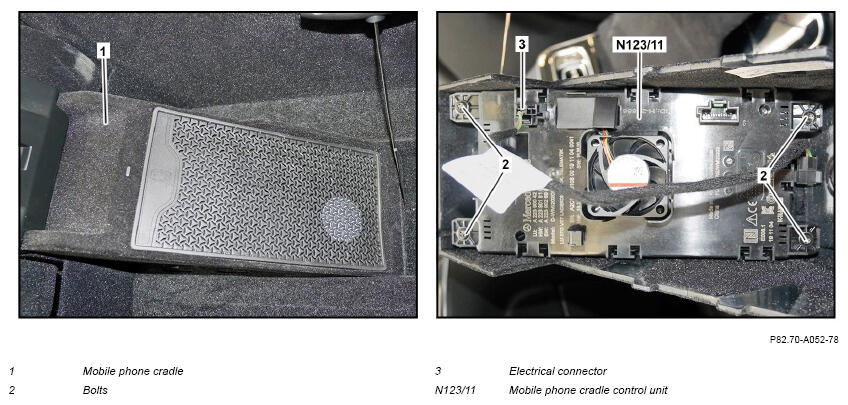

Fig 1: Control Unit For Mobile Phone Cradle In Rear Passenger Compartment Components Location - Model 223 With Code 224, 898 Except Code 326
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Open rear stowage compartment. | ||
| 2 | Unclip mobile phone cradle (1) with mobile phone cradle control unit (N123/11) and remove until the associated electrical connector is accessible. | Fig 2 | |
| 3 | Disconnect electrical connector of mobile phone cradle control unit (N123/11). | ||
| 4 | Disconnect electrical connector from cigarette lighter. | Model 223 with code 224 (Individual rear seats) with code 301 (Ashtray package) with code 898 (Wireless telephone charging in rear passenger compartment) except code 326 (Premium rear armrest) |
|
| 5 | Remove mobile phone cradle (1) with mobile phone cradle control unit (N123/11). | ||
| 6 | Disconnect electrical connector (3). | ||
| 7 | Remove screw/bolts (2). | ||
| 8 | Remove mobile phone cradle control unit (N123/11). | ||
| 9 | Install in the reverse order. | ||
| 10 | Commission mobile phone cradle control unit (N123/11). | When replacing the mobile phone cradle control unit (N123/11). | |
| AD00.00-P-2000-06FR |
