Rear Entertainment System Controller Unit, Component Description - GF82.90-P-4021A

Model 223

G16232564Courtesy of MERCEDES-BENZ USA

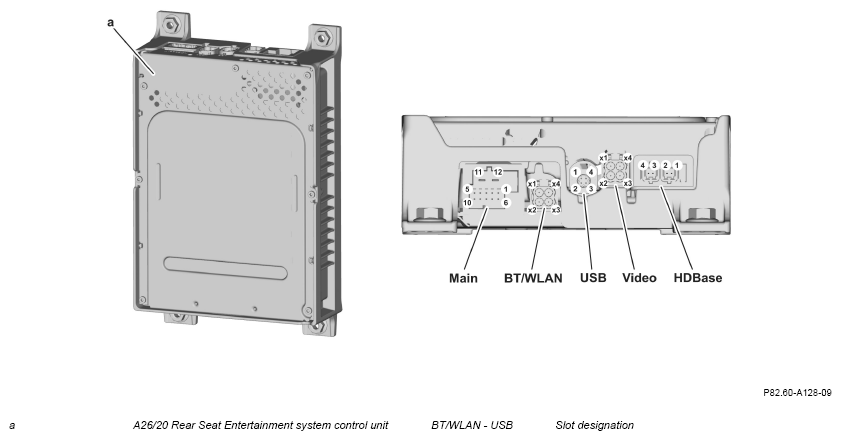

IMPORTANT The numbers on the pins indicate the pin numbering of the slots.

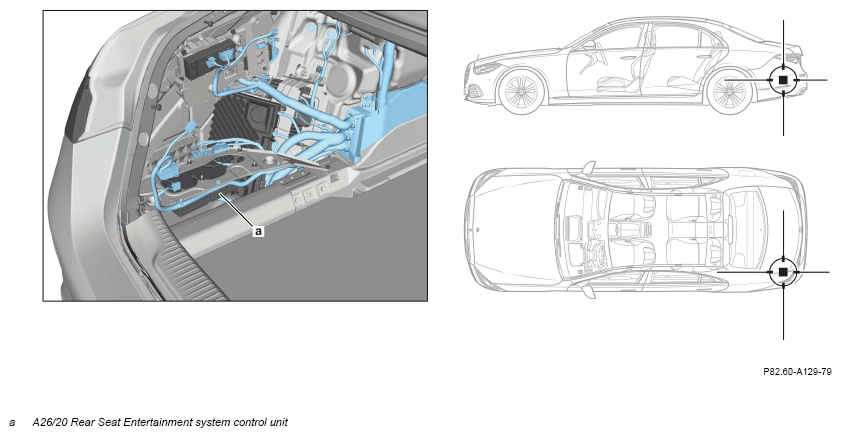

Fig 1: Rear Entertainment System Controller Unit Components Location - Model 223
G16232565Courtesy of MERCEDES-BENZ USA

Location
