Dedicated Short-Range Communications (DSRC) Control Unit, Component Description - GF82.88-P-0500A

Model 223

Courtesy of MERCEDES-BENZ USA

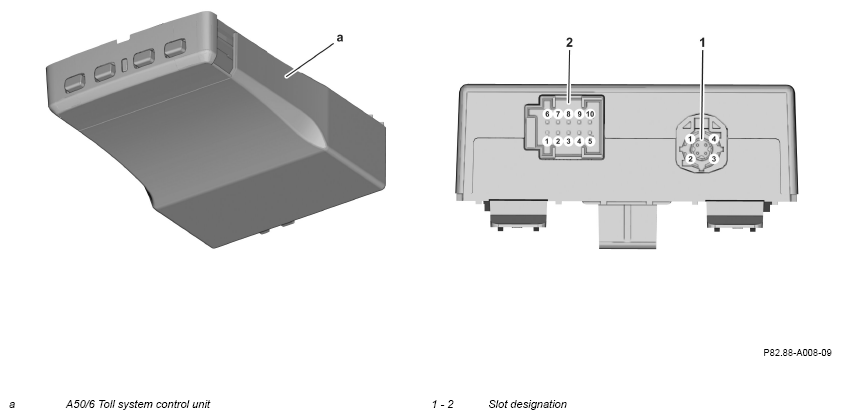

Diagram valid for model 223 with code 494

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

Diagram valid for model 223 with code 460

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

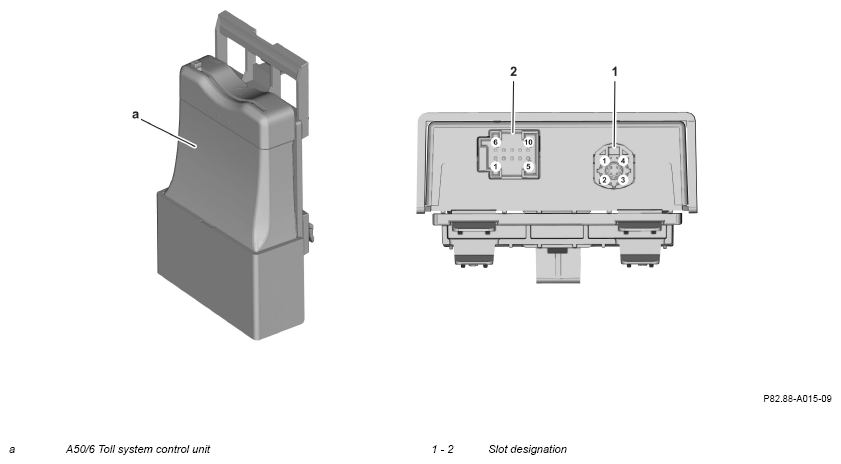

Illustration valid for model 223 with code 737L

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

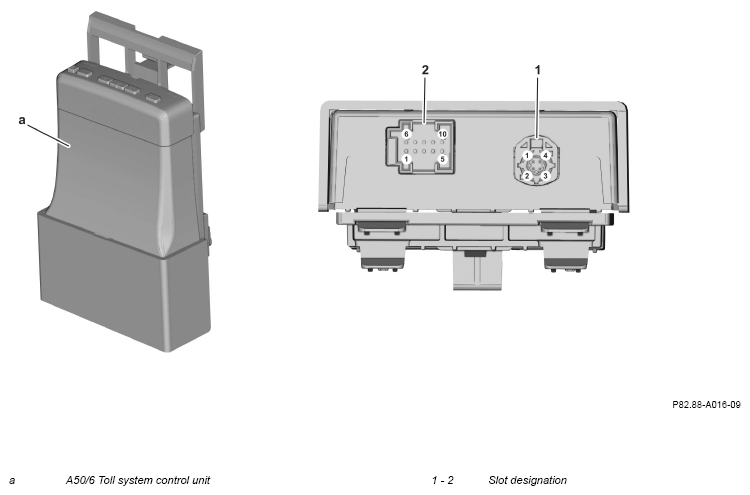

Illustration valid for model 223 with code 498

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

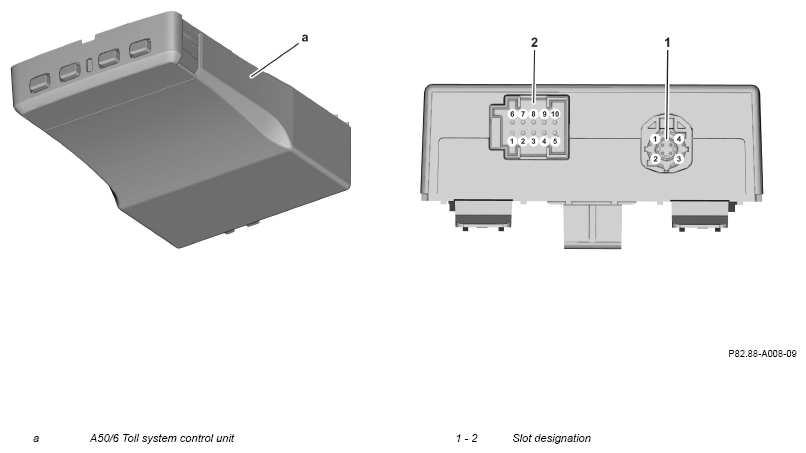

Diagram valid for model 223 with code 835

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

Diagram valid for model 223 with code 830

The numbers on the pins indicate the pin numbering of the slots.

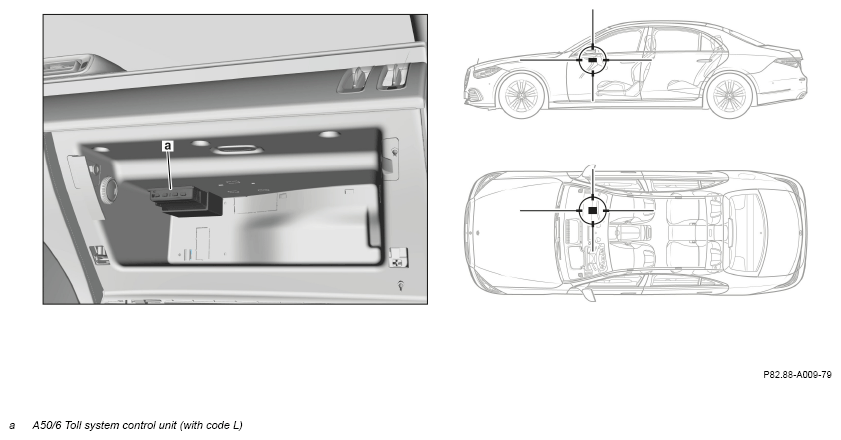

Location for model 223

Courtesy of MERCEDES-BENZ USA

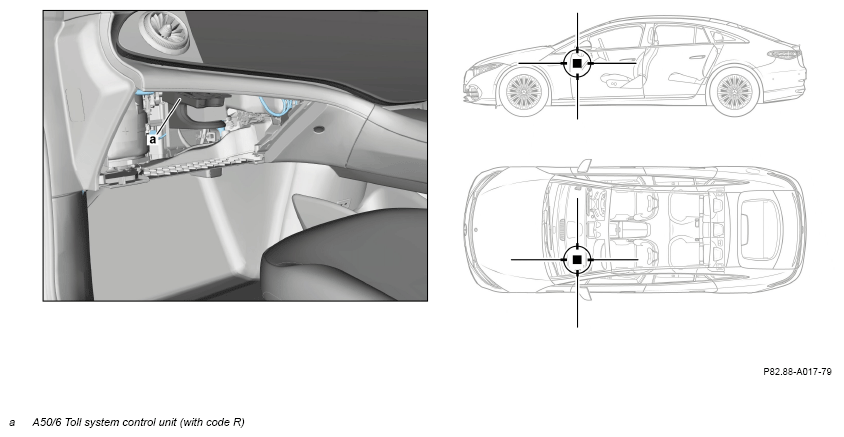

Location for model 223
