Wiring Diagram For Rear Heated Seats Control Unit - PE91.30-P-2101-97NCA
Model 167
with code 872 (Heated rear seats)

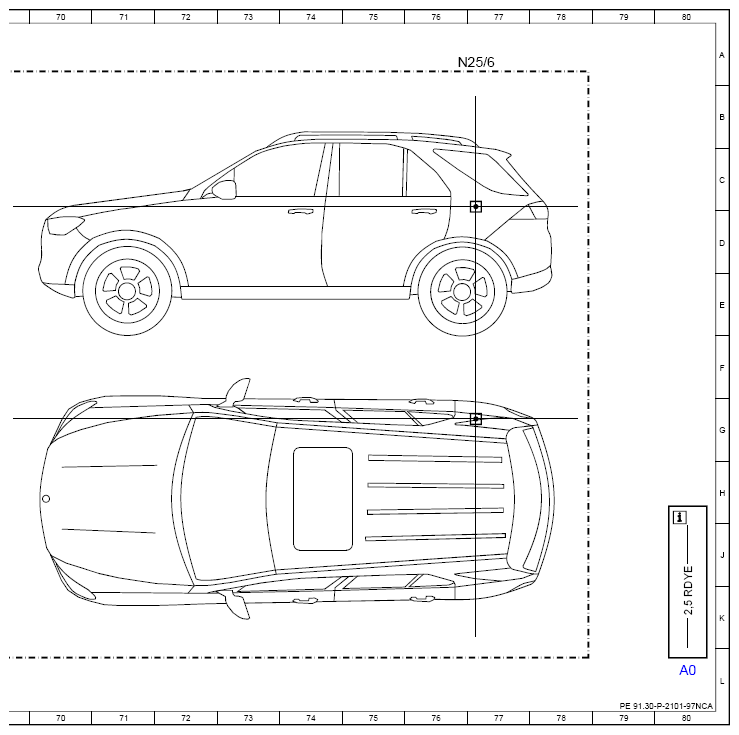

Control unit N25/6
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 80L |
| Code 224 | Design rear individual seats | 26D |
| Code 224 | Design rear individual seats | 47D |
| Code 226 | 7-seater with 3rd seat row | 30D |
| Code 226 | 7-seater with 3rd seat row | 52D |
| Code 226 | 7-seater with 3rd seat row | 26D |
| Code 226 | 7-seater with 3rd seat row | 47D |
| Code 293 | Sidebags in the rear | 30D |
| Code 293 | Sidebags in the rear | 52D |
| Code 402 | Rear comfort seats, incl. seat heating and seat ventilation | 30D |
| Code 402 | Rear comfort seats, incl. seat heating and seat ventilation | 52D |
| Code 402 | Rear comfort seats, incl. seat heating and seat ventilation | 26D |
| Code 402 | Rear comfort seats, incl. seat heating and seat ventilation | 47D |
| Code 567 | Vario rear bench seat | 17D |
| Code 567 | Vario rear bench seat | 22D |
| Code 567 | Vario rear bench seat | 39D |
| Code 567 | Vario rear bench seat | 43D |
| Code 906 | Front armrest heater | 9D |
| Code 906 | Front armrest heater | 11D |

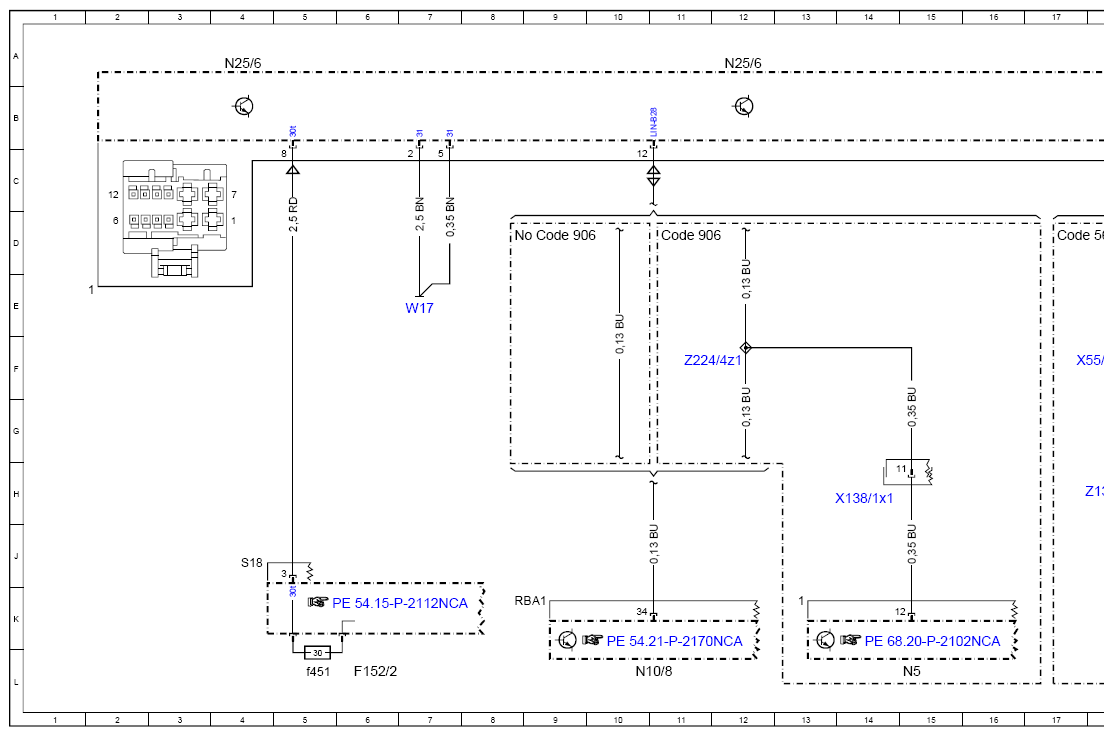

| F152/2 | Rear fuse and relay module | 6L |
| F152/2f451 | Fuse 451 | 5L |

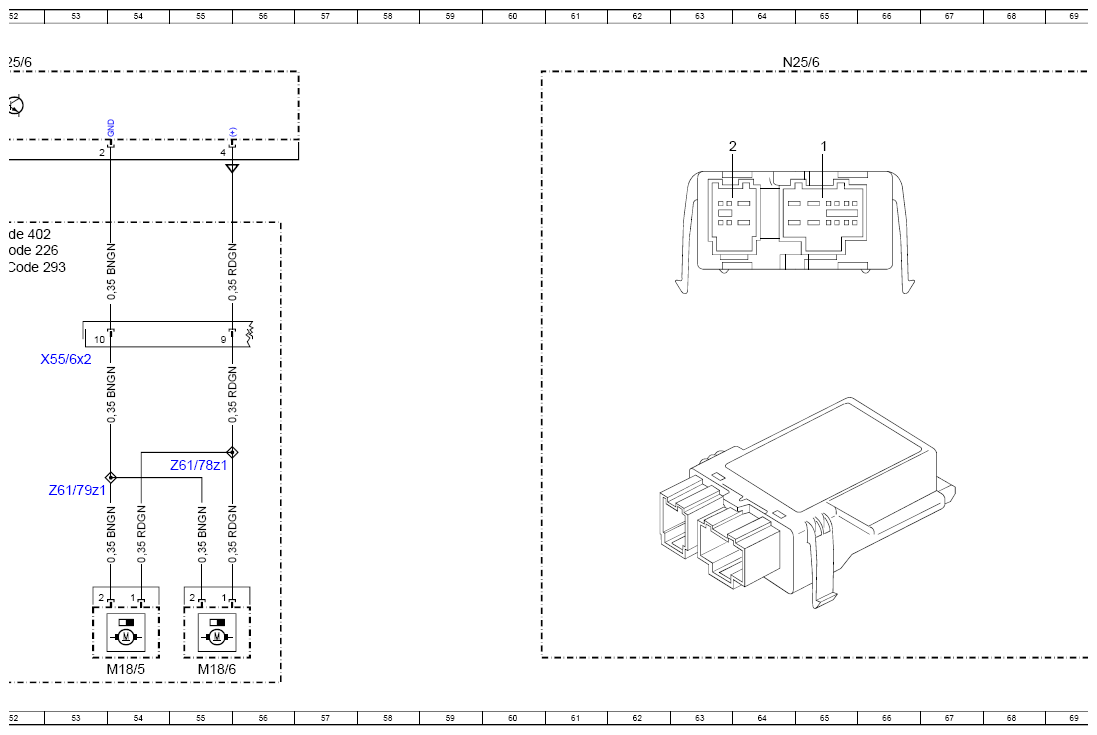

| M18/5 | Right rear seat backrest ventilation motors | 54L |
| M18/6 | Right rear seat cushion ventilation motors | 55L |
| M18/7 | Left rear seat backrest ventilation motors | 32L |
| M18/8 | Left rear seat cushion ventilation motors | 34L |
| N10/8 | Rear central control unit | 10L |

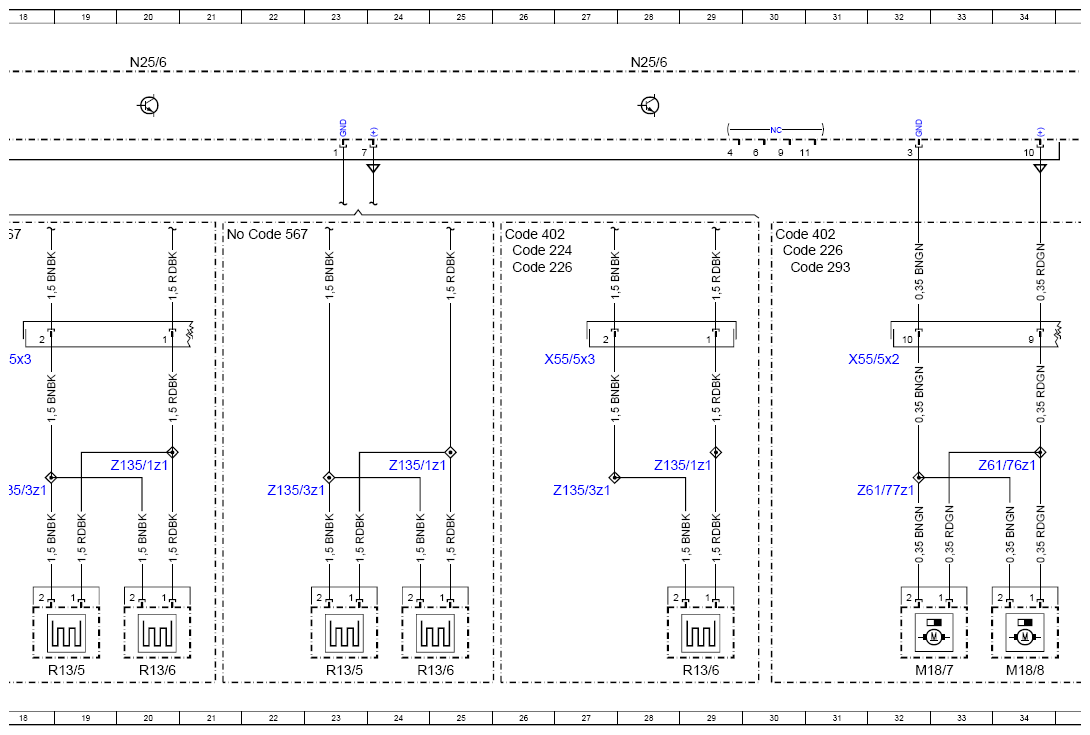

| N25/6 | Rear seat heaters control unit | 4A |
| N25/6 | Rear seat heaters control unit | 12A |
| N25/6 | Rear seat heaters control unit | 76A |
| N25/6 | Rear seat heaters control unit | 64A |
| N25/6 | Rear seat heaters control unit | 20A |
| N25/6 | Rear seat heaters control unit | 28A |
| N25/6 | Rear seat heaters control unit | 36A |
| N25/6 | Rear seat heaters control unit | 44A |
| N25/6 | Rear seat heaters control unit | 52A |
| N5 | Armrest heater control unit | 15L |
| R13/5 | Left rear seat sitting surface heated cushion | 19L |
| R13/5 | Left rear seat sitting surface heated cushion | 23L |
| R13/6 | Left rear backrest heated cushion | 20L |
| R13/6 | Left rear backrest heated cushion | 24L |
| R13/6 | Left rear backrest heated cushion | 29L |

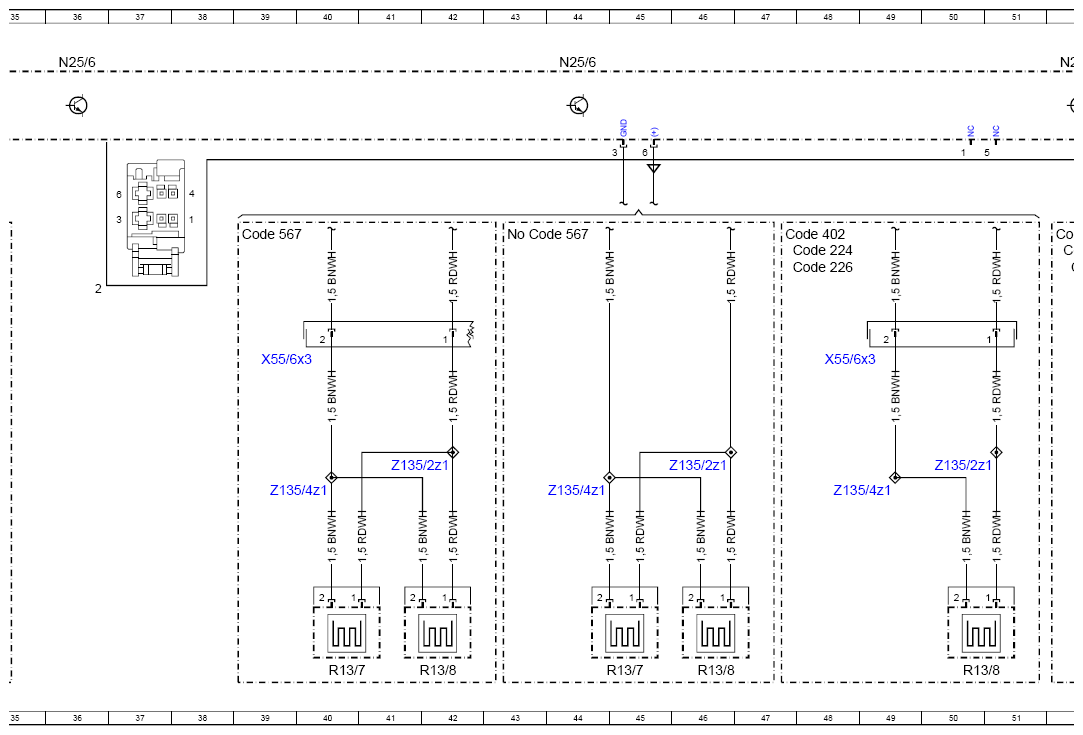

| R13/7 | Right rear seat sitting surface heated cushion | 40L |
| R13/7 | Right rear seat sitting surface heated cushion | 45L |
| R13/8 | Right rear backrest heater pad | 42L |
| R13/8 | Right rear backrest heater pad | 46L |
| R13/8 | Right rear backrest heater pad | 50L |
| W17 | Right rear seat ground point | 7E |
| X138/1x1 | Front center console electrical connector | 14H |
| X55/5x2 | Left rear seat adjustment unit connector block | 32F |
| X55/5x3 | Left rear seat adjustment unit connector block | 18F |
| X55/5x3 | Left rear seat adjustment unit connector block | 27F |
| X55/6x2 | Right rear seat adjustment unit connector block | 53F |
| X55/6x3 | Right rear seat adjustment unit connector block | 39F |
| X55/6x3 | Right rear seat adjustment unit connector block | 48F |
| Z135/1z1 | Left rear seat heater pad circuit 30 connector sleeve | 20H |
| Z135/1z1 | Left rear seat heater pad circuit 30 connector sleeve | 24H |
| Z135/1z1 | Left rear seat heater pad circuit 30 connector sleeve | 29H |
| Z135/2z1 | Right rear seat heater pad circuit 30 connector sleeve | 41H |
| Z135/2z1 | Right rear seat heater pad circuit 30 connector sleeve | 46H |
| Z135/2z1 | Right rear seat heater pad circuit 30 connector sleeve | 50H |
| Z135/3z1 | Left rear seat heater pad circuit 31 connector sleeve | 18H |
| Z135/3z1 | Left rear seat heater pad circuit 31 connector sleeve | 22H |
| Z135/3z1 | Left rear seat heater pad circuit 31 connector sleeve | 27H |
| Z135/4z1 | Right rear seat heater pad circuit 31 connector sleeve | 40H |
| Z135/4z1 | Right rear seat heater pad circuit 31 connector sleeve | 44H |
| Z135/4z1 | Right rear seat heater pad circuit 31 connector sleeve | 49H |
| Z224/4z1 | Seat heater LIN bus end sleeve | 12F |
| Z61/76z1 | Left 2nd seat row seat ventilation supply end sleeve | 34H |
| Z61/77z1 | Left 2nd seat row seat ventilation ground connection end sleeve | 32H |
| Z61/78z1 | Right 2nd seat row seat ventilation supply end sleeve | 55H |
| Z61/79z1 | Right 2nd seat row seat ventilation ground connection end sleeve | 53H |
