Remove/Install Seat Cushion Cover On 3rd Seat Row - AR91.18-P-0001MEX
Model 167.9
with code 845 (Electrically folding 3rd seat row)

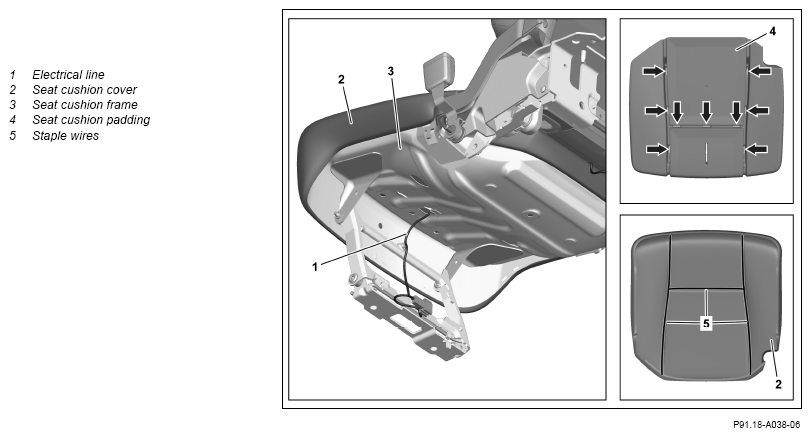

Shown on right 3rd rear seat row seat
| Remove/install | |||
| 1 | Remove 3rd rear seat row seat. | AR91.12-P-0007MEX | |
| 2 | Expose electric line (1) of seat cushion heater pad. | Model 167.9 with code 845 (Electrically folding 3rd seat row) with code 886 (Seat heater for 3rd seat row) |
|
| 3 | Release seat cushion frame (2) from seat cushion frame (3). | Fig 1 | |
| 4 | Guide electric line (1) of seat cushion heater pad upward through opening in seat cushion frame (3). | Model 167.9 with code 845 (Electrically folding 3rd seat row) with code 886 (Seat heater for 3rd seat row) |
|
| 5 | Remove seat cushion cover (2) together with seat cushion padding (4) from seat cushion frame (3). | ||
| 6 | Release seat cushion cover (2) far enough from seat cushion padding (4) until staple clips are accessible. | ||
| 7 | Separate staple clips at attachment points (arrows) and remove remaining pieces from seat cushion padding (4). | Carefully remove the remaining pieces of staple clips. Otherwise the seat cushion padding (4) and the seat cushion cover (2) will be damaged. |
Fig 2 |
| 8 | Remove seat cushion cover (2) from seat cushion padding (4). | ||
| 9 | Remove staple wires (5) from seat cushion cover (2). | When replacing seat cushion cover (2). | |
| 10 | Install in the reverse order. |
