Remove/Install Rear Backrest Trim - AR91.12-P-1134ME

Model 167.1/3

Model 167.9

except code M036 (Maybach version)

Courtesy of MERCEDES-BENZ USA

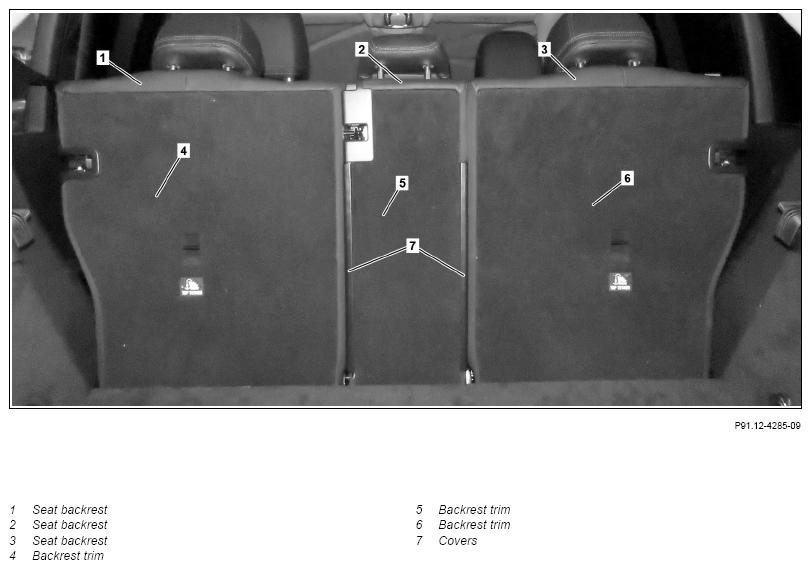

Shown on model 167.1 except code 567 (Vario rear bench seat)

	Remove/install
1	Fold corresponding seat backrest (1, 2, 3) forward.
2	Remove covers (7) at side of seat backrest trim (5).	Model 167.1 except code 567 (Vario rear seat) Model 167.3 When removing center seat backrest trim (5). Long wedge	Fig 1
3	Remove cover from lock of left or right seat backrest trim (4, 6).	Model 167.1 except code 567 (Vario rear seat) Model 167.3 When removing left or right seat backrest trim (4, 6). Long wedge	Fig 1
4	Remove cover from lock of center seat backrest trim (5).	Model 167.1/3 Model 167.9 except code 224 (Rear individual seat design) except code M036 (Maybach version) When removing center seat backrest trim (5). Long wedge	Fig 1
5	Release rear backrest cover side lip on back of corresponding seat backrest trim (4, 5, 6) and pull out.	Dismantling tool	Fig 2
6	Remove corresponding seat backrest trim (4, 5, 6).
7	Install in the reverse order.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Dismantling Tool (205 589 02 63 00)

Courtesy of MERCEDES-BENZ USA
