Remove/Install Cover On Front Seat Cushion - AR91.18-P-1801ME

Model 167

Courtesy of MERCEDES-BENZ USA

	Remove/install

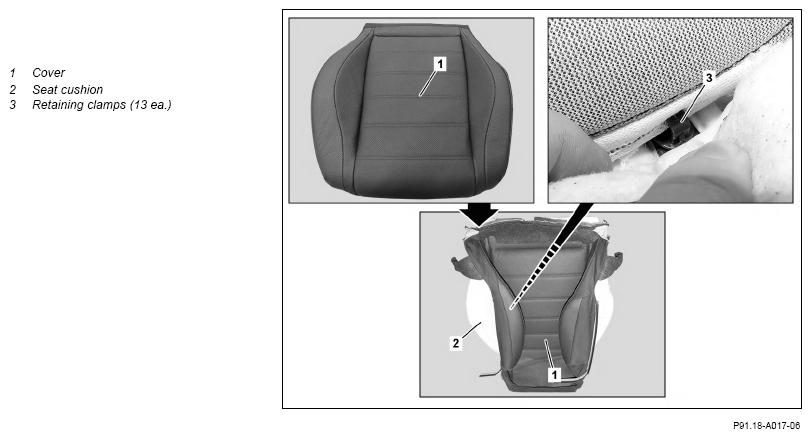

1	Remove seat cushion (2) at front from front seat and place down on suitable base.		AR91.10-P-3310ME
2	Fold up cover (1) on both seat side bolsters.
3	Release and remove cover (1) from retaining clamps (3).	Smoothen out cover (1) to avoid any creasing. Ensure that cover (1) is correctly seated. The seat heater mat is bonded to the seat cushion (2). Dismantling tool If the seat cushion (2) or seat heater mat is damaged, ↓ replace seat cushion (2) and seat heater mat.	Fig 1
4	Install in the reverse order

Fig 1: Identifying Dismantling Tool (205 589 03 63 00)

Courtesy of MERCEDES-BENZ USA
