Remove/Install Antenna Amplifier/Compensator For Telephone - AR82.62-P-0005ME

Model 167 With Code 899 (Multifunction telephony)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove front seats.		AR91.10-P-1000ME
2	Remove center console.		AR68.20-P-2000ME

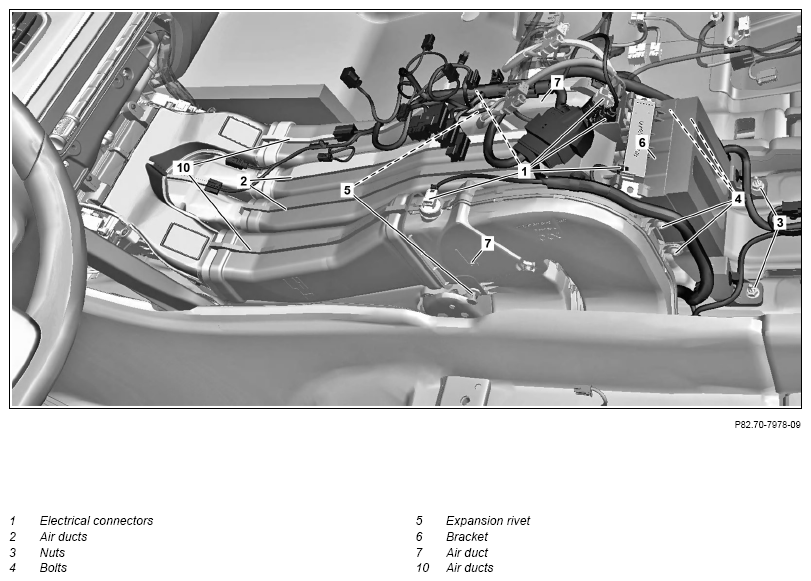

3	Release and disconnect electrical connections (1).	The number of electrical connectors (1) varies depending on the vehicle equipment.
4	Unscrew nuts (3).
5	Unscrew bolts (4).
6	Unclip expansion rivets (5).	Dismantling tool	Fig 1
7	Remove bracket (6) together with air ducts (2)
8	Raise respective floor covering and remove air ducts (7, 10).	Ensure correct positioning of the air ducts (7) under the floor coverings.

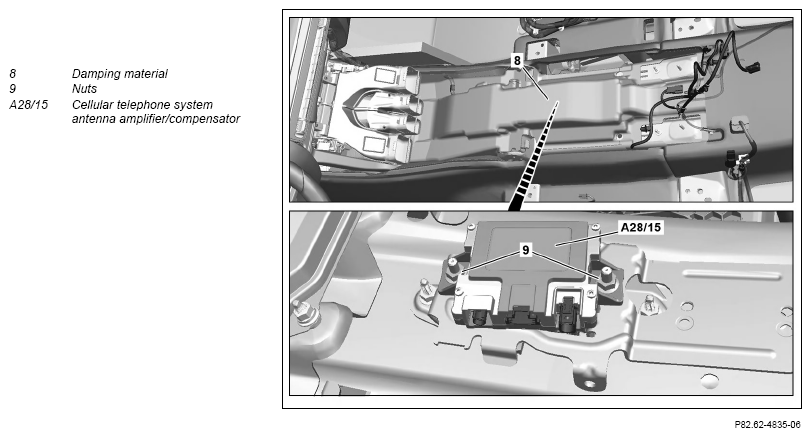

9	Raise damping (8).
10	Release and disconnect electrical connectors at antenna amplifier/compensator of cellular telephone system (A28/15).
11	Unscrew nuts (9).
12	Remove antenna amplifier/compensator of cellular telephone system (A28/15).
13	Install in the reverse order.

Fig 1: Identifying Dismantling Tool (000 589 93 63 00)

Courtesy of MERCEDES-BENZ USA
