Remove/Install Rear Door Liner - AR72.12-P-1011ME
Model 167
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Move down corresponding side window of the rear door. | ||
| 2 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||

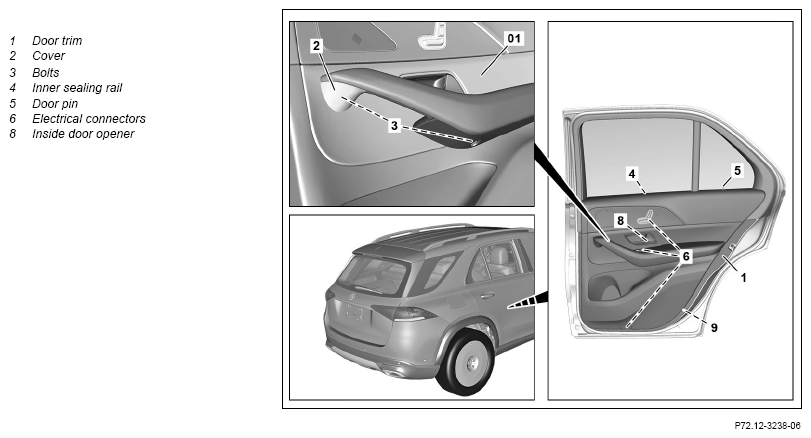

| 3 | Using long wedge, release cover (2) from door trim (1) on driver's side and/or front passenger side and remove downwards. | Fig 1 | |
| 4 | Remove screw/bolts (3). | ||
| 5 | Unclip door trim (1) starting from the bottom and pull out of the inner sealing rail (4). | Ensure that the retaining clips are seated correctly on the door trim (1). They will be damaged otherwise. |
|
| 6 | Guide door pin (5) out of the door trim (1). | Model 167 except code 297 (Roller sun blinds in rear doors) | |
| 7 | Lift door trim (1) until the electrical connectors (6) are accessible. | Do not crush or kink or subject lines to tension This will result in damage to the lines which may impair their functional capability. |
|
| 8 | Release and disconnect electrical connectors (6). | ||
| 9 | Unhook wire of the inside door opener (8). | ||
| 10 | Unclip electrical wiring harness from the door trim (1). | ||
| 11 | Remove door trim (1). | ||
| Check | |||
| 12 | Check retaining clips of the door trim (1) for damage. | If the retaining clips are damaged, ↓ |
|
| Replace retaining clip. | |||
| 13 | Install in the reverse order. |
