Remove/Install Front Door Panel - AR72.10-P-6575ME

Model 167

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Bring down corresponding side window of the front door.
2	Switch off ignition and store transmitter key outside of transmitter range (min. 2 m).
3	Release covers (2) with long wedge (01) from the door trim (1) on the driver's side and front passenger side and remove in the direction of travel.	Long wedge	Fig 1
4	Remove screw/bolts (3).
5	Unclip door trim (1) starting from the bottom and pull out of the inner sealing rail (4).	Ensure that the plastic clips are seated correctly on the door trim (1). They will be damaged otherwise.
6	Guide door pin (5) out of the door trim (1).
7	Lift door trim (1) until the electrical connectors (6) are accessible.	Do not crush or kink or subject lines to tension This will result in damage to the lines which may impair their functional capability.
8	Release and disconnect electrical connectors (6).	The number of electrical connectors (6) varies depending on the vehicle equipment.
9	Unhook wire of the inside door opener (8).	Install new crown clip on the inside door opener (8).
10	Unclip electrical wiring harness from the door trim (1).
11	Remove door trim (1).
	Check
12	Check plastic clips of the door trim (1) for damage.	If plastic clips are damaged, ↓ replace plastic clips.
13	Install in the reverse order.

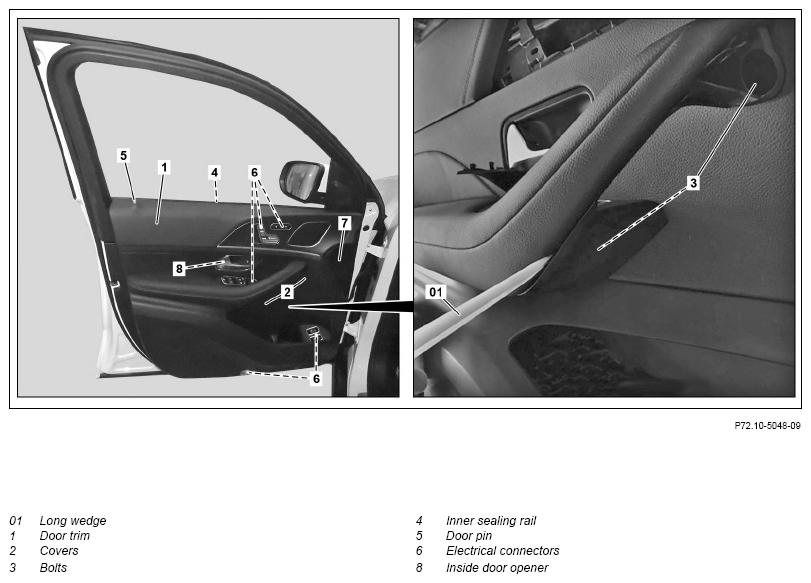

Fig 1: Identifying Long Wedge (115 589 03 59 00)
