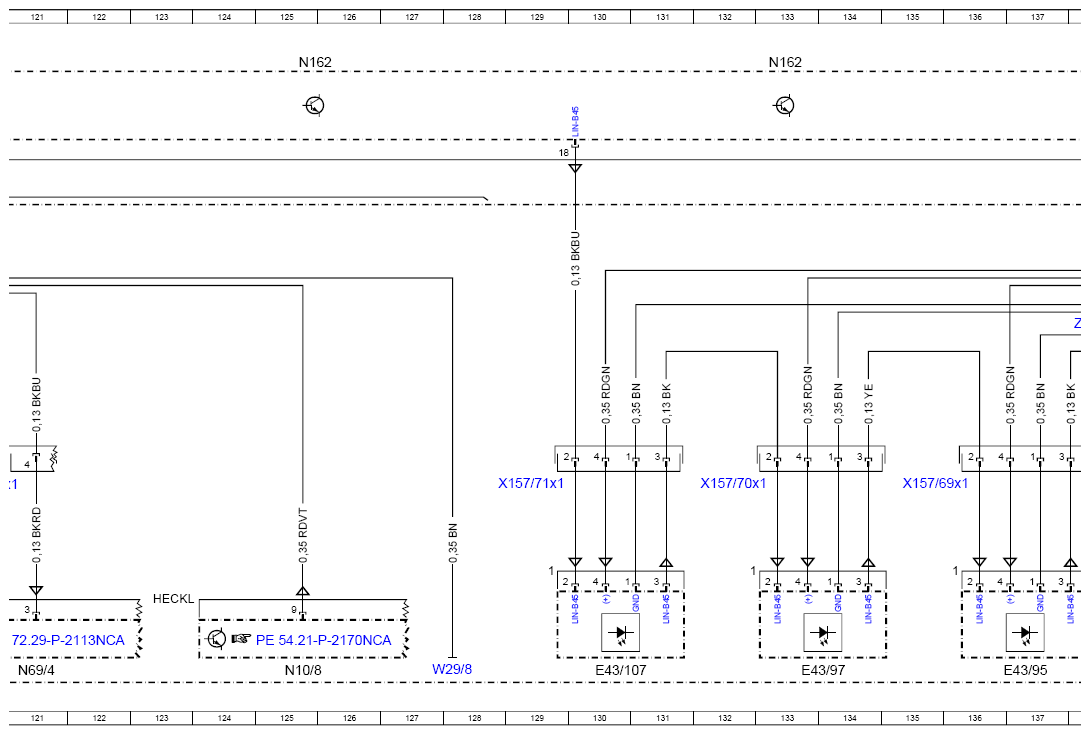

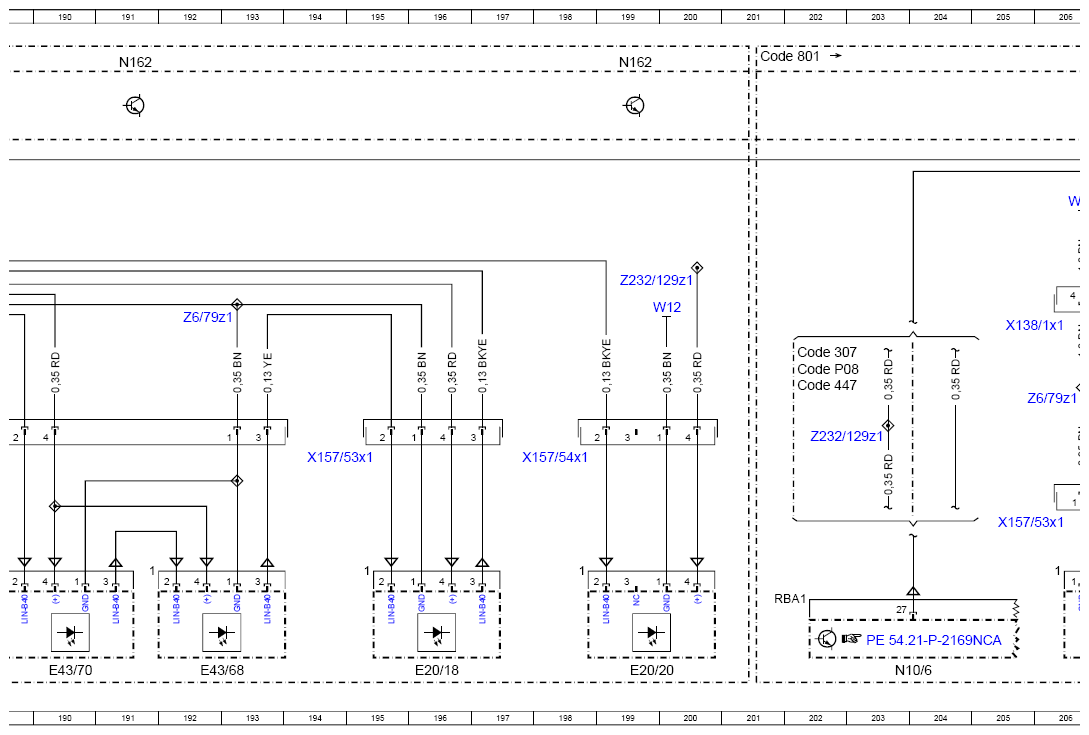

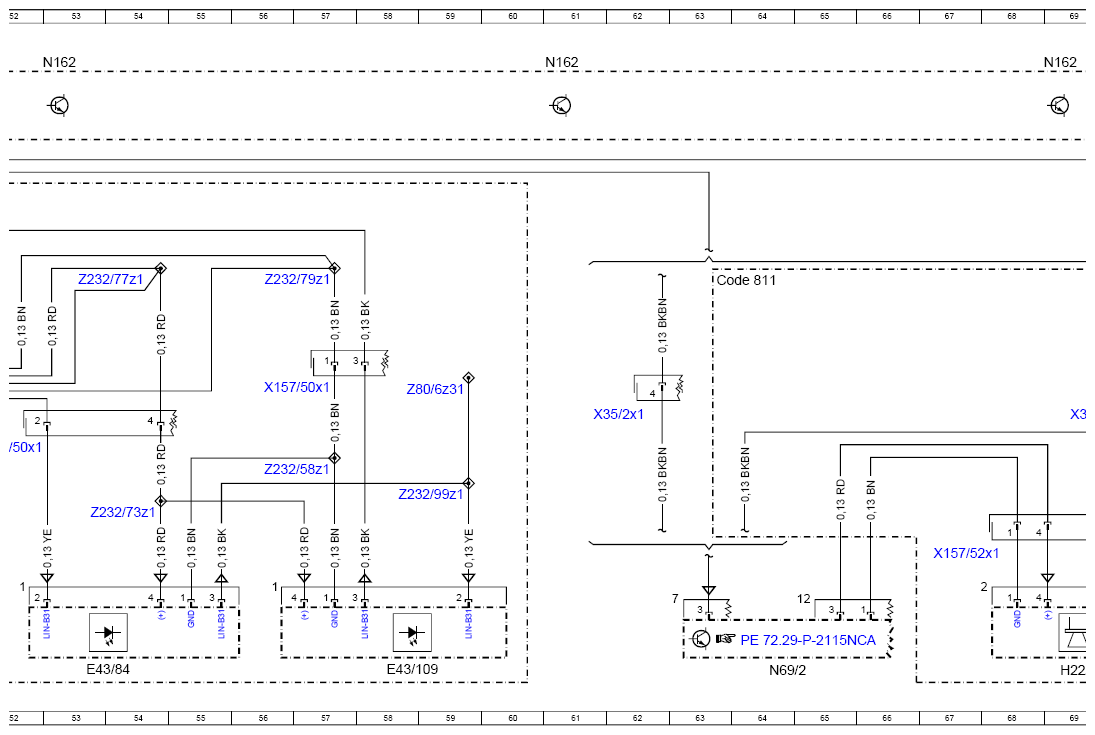

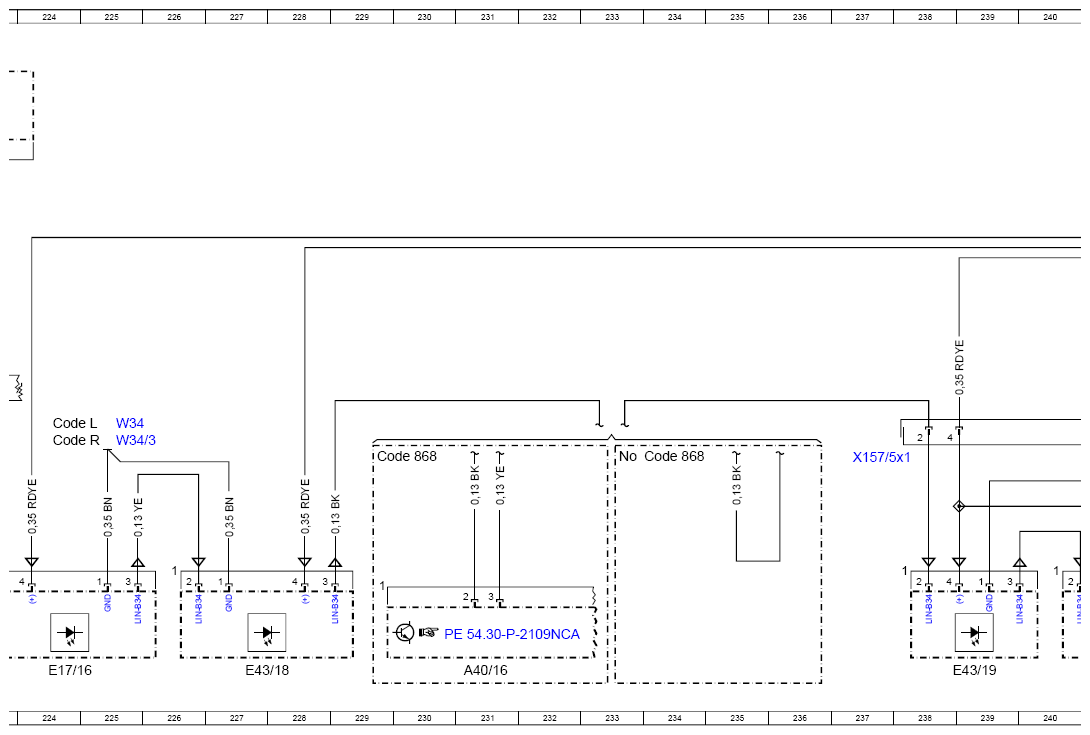

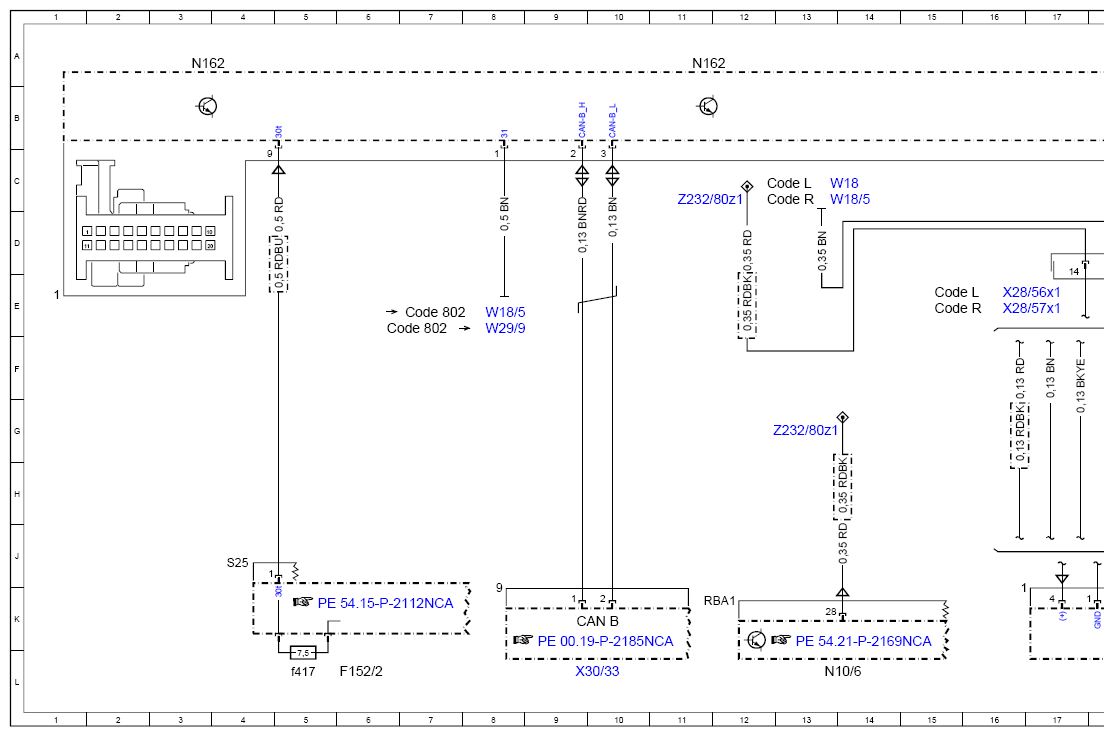

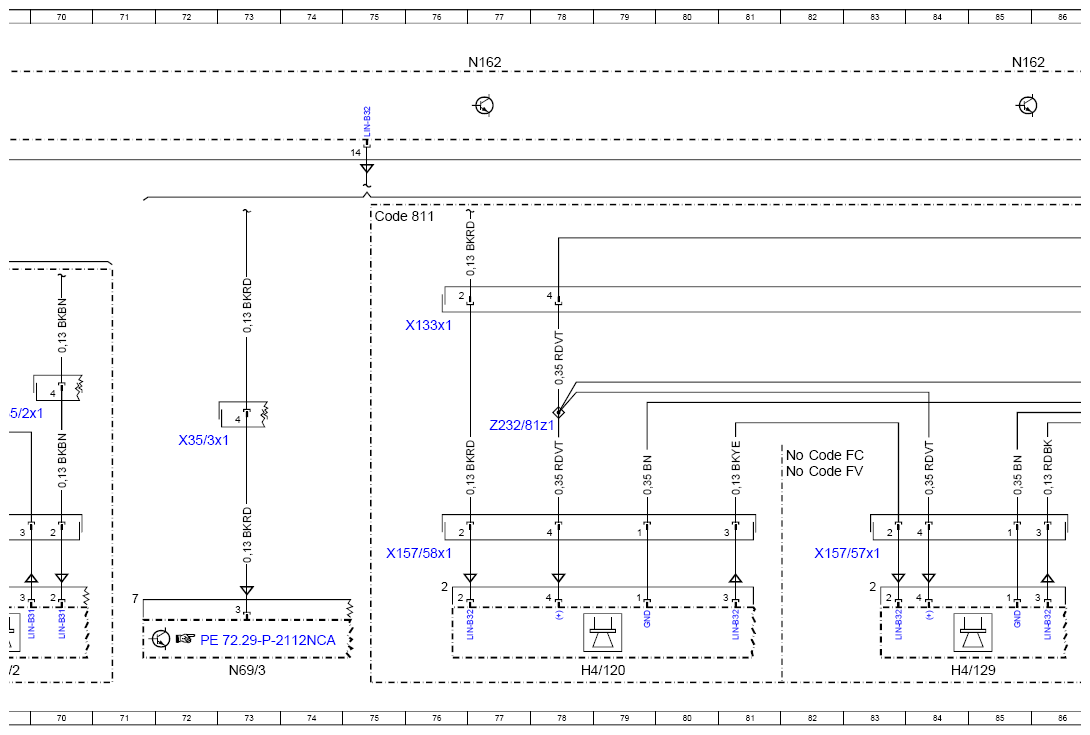

Wiring Diagram Of Ambiance Illumination Control Unit - PE82.20-P-2101-97NCA
Model 167 with code 876 (Interior Light package)
Control unit N162
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 267L |
| A40/16 | Head unit/instrument cluster display cluster | 231L |
| CAN B | Interior CAN | 10K |
| Code 224 | Design rear individual seats | 160E |
| Code 224 | Design rear individual seats | 153E |
| Code 307 | Temperature-controlled cup holder in rear passenger compartment | 202F |
| Code 307 | Temperature-controlled cup holder in rear passenger compartment | 175F |
| Code 447 | Touchscreen in rear passenger compartment (rear touchscreen) | 202F |
| Code 447 | Touchscreen in rear passenger compartment (rear touchscreen) | 175F |
| Code 735 | Additional trim element package | 19F |
| Code 735 | Additional trim element package | 48F |
| Code 801 | YoM 20/1 | 175A |
| Code 801 | YoM 20/1 | 201A |
| Code 802 | YoM 21/1 | 6E |
| Code 802 | YoM 21/1 | 7E |
| Code 802 | YoM 21/1 | 42K |
| Code 802 | YoM 21/1 | 42K |
| Code 802 | YoM 21/1 | 42L |
| Code 811 | Advanced sound system | 34E |
| Code 811 | Advanced sound system | 63E |
| Code 811 | Advanced sound system | 75D |
| Code 868 | Large display for Audio 20 | 229G |
| Code 868 | Large display for Audio 20 | 233G |
| Code FC | COUPE | 82G |
| Code FV | LONG SEDAN | 82H |
| Code L | LEFT-HAND DRIVE | 12C |
| Code L | LEFT-HAND DRIVE | 224G |
| Code L | LEFT-HAND DRIVE | 241E |
| Code L | LEFT-HAND DRIVE | 15E |
| Code L | LEFT-HAND DRIVE | 44E |
| Code L | LEFT-HAND DRIVE | 42L |
| Code M036 | Maybach version | 99D |
| Code M036 | Maybach version | 104D |
| Code M036 | Maybach version | 209D |
| Code M036 | Maybach version | 213D |
| Code P08 | Rear passenger compartment Comfort Package | 202F |
| Code P08 | Rear passenger compartment Comfort Package | 175F |
| Code R | RIGHT-HAND DRIVE | 12C |
| Code R | RIGHT-HAND DRIVE | 224G |
| Code R | RIGHT-HAND DRIVE | 241E |
| Code R | RIGHT-HAND DRIVE | 15E |
| Code R | RIGHT-HAND DRIVE | 44E |
| Code R | RIGHT-HAND DRIVE | 42K |
| E17/15 | Right front footwell lamp | 244L |
| E17/16 | Left front footwell lamp | 224L |
| E17/17 | Right rear footwell lamp | 47L |
| E17/18 | Left rear footwell lamp | 18L |

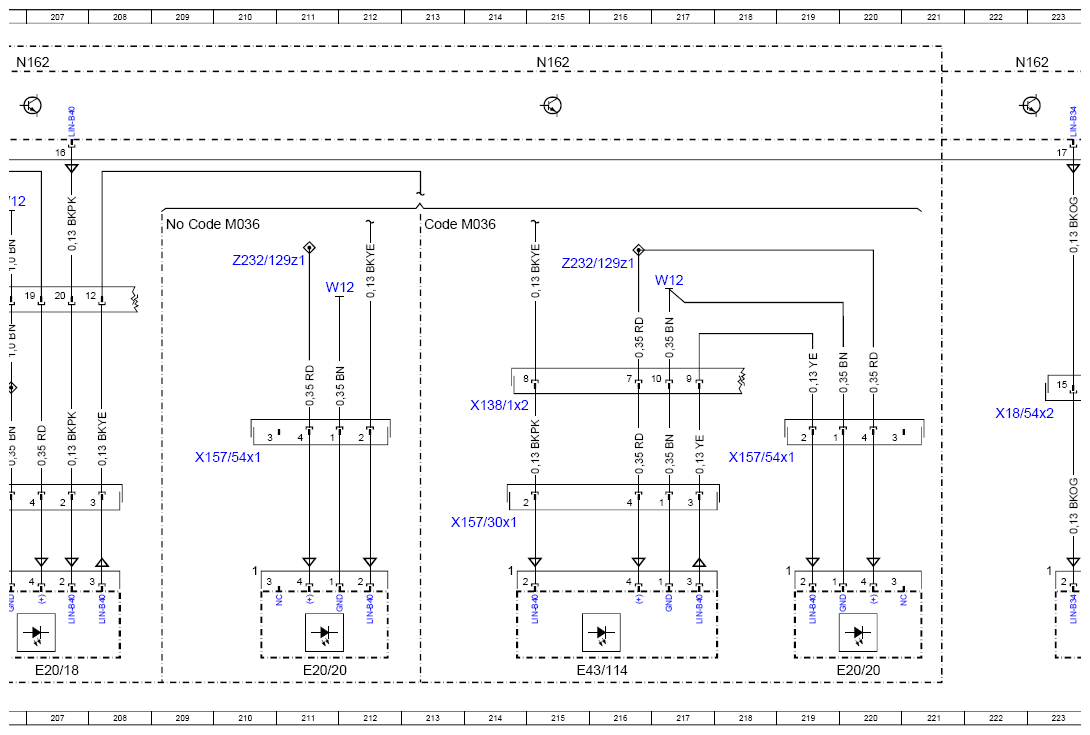

| E20/18 | Front center console cup holder ambiance illumination | 196L |
| E20/18 | Front center console cup holder ambiance illumination | 207L |
| E20/20 | Rear center console cup holder illumination | 199L |
| E20/20 | Rear center console cup holder illumination | 211L |
| E20/20 | Rear center console cup holder illumination | 220L |

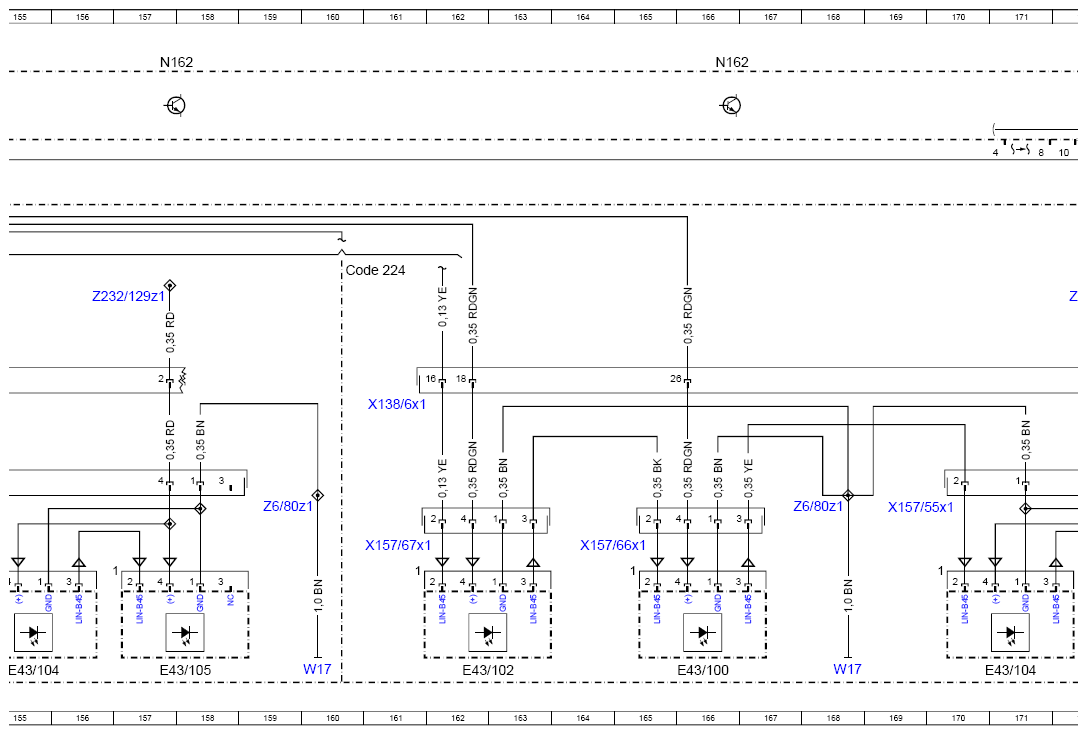

| E43/100 | Left rear center console ambiance illumination | 166L |
| E43/102 | Right rear center console ambiance illumination | 162L |
| E43/104 | Left rear Audio/COMAND display ambient lighting | 155L |
| E43/104 | Left rear Audio/COMAND display ambient lighting | 171L |
| E43/105 | Right rear Audio/COMAND display ambient lighting | 157L |
| E43/105 | Right rear Audio/COMAND display ambient lighting | 173L |

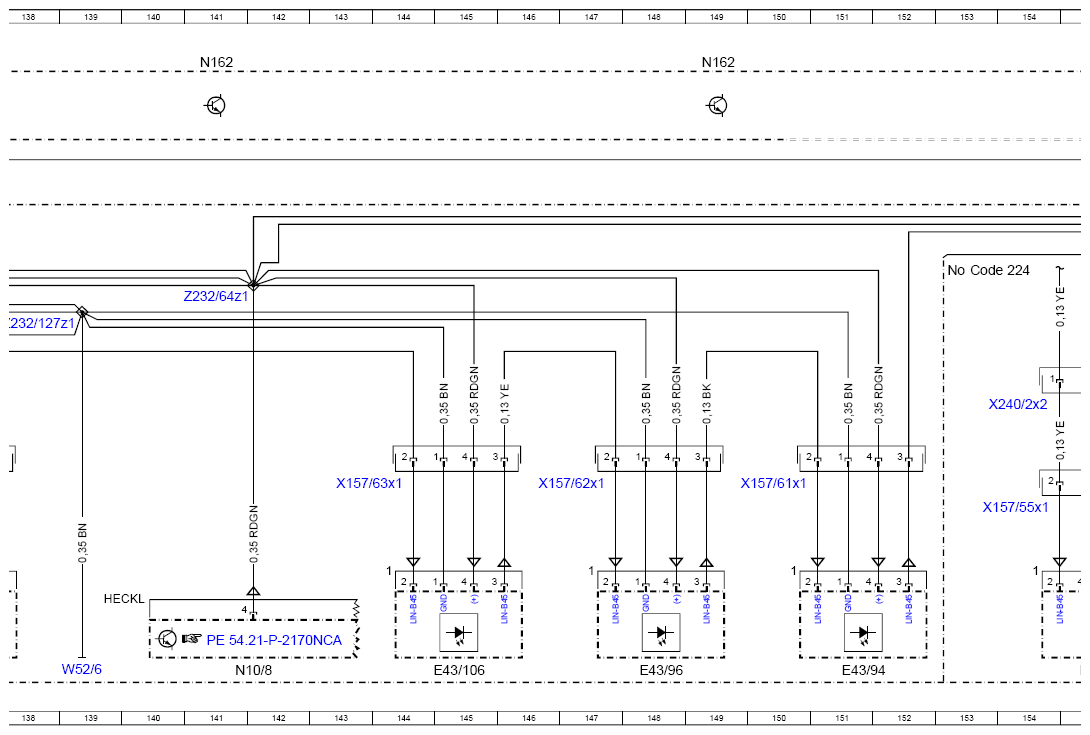

| E43/106 | Left rear seat right ambient lighting | 145L |
| E43/107 | Right rear seat left ambient lighting | 130L |
| E43/108 | Outer left front seat trim element ambient lighting | 30L |
| E43/109 | Outer right front seat trim element ambient lighting | 58L |
| E43/114 | Center console stowage compartment ambient lighting | 215L |
| E43/18 | Driver-side outside ambient lighting | 227L |
| E43/19 | Passenger-side interior ambiance illumination | 239L |
| E43/20 | Passenger-side exterior ambiance illumination | 241L |

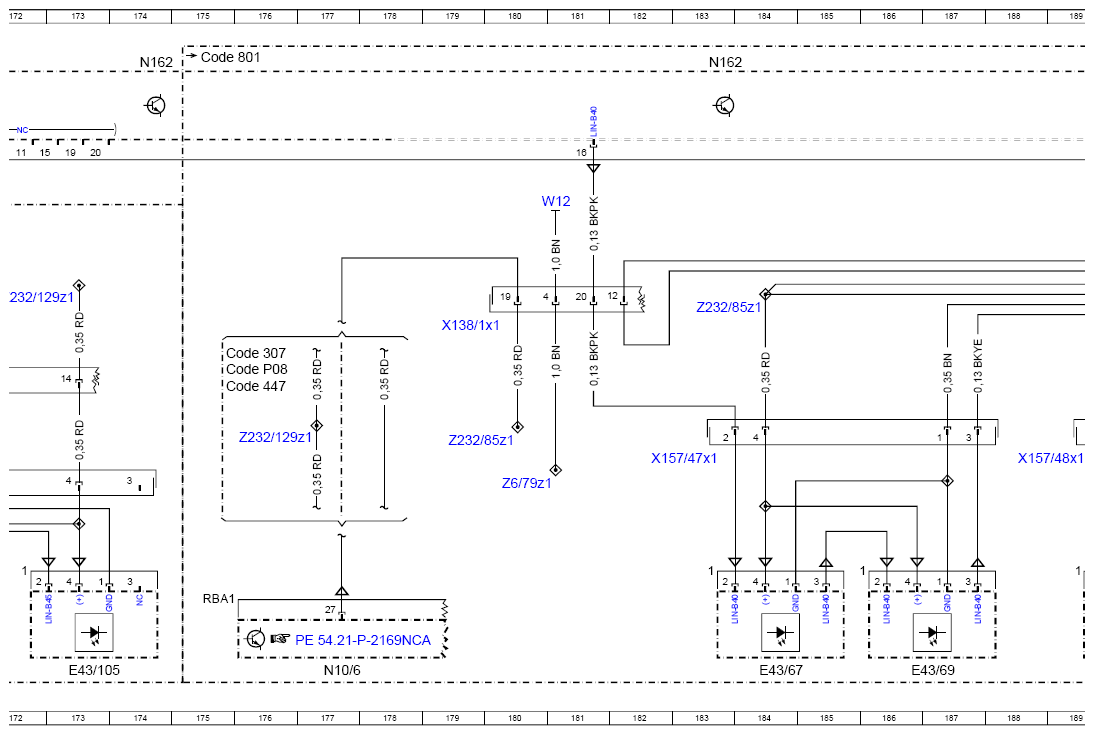

| E43/67 | Left front center console grab handle ambient lighting | 184L |
| E43/68 | Right front center console grab handle ambient lighting | 192L |
| E43/69 | Left rear center console grab handle ambient lighting | 186L |
| E43/70 | Right rear center console grab handle ambient lighting | 190L |

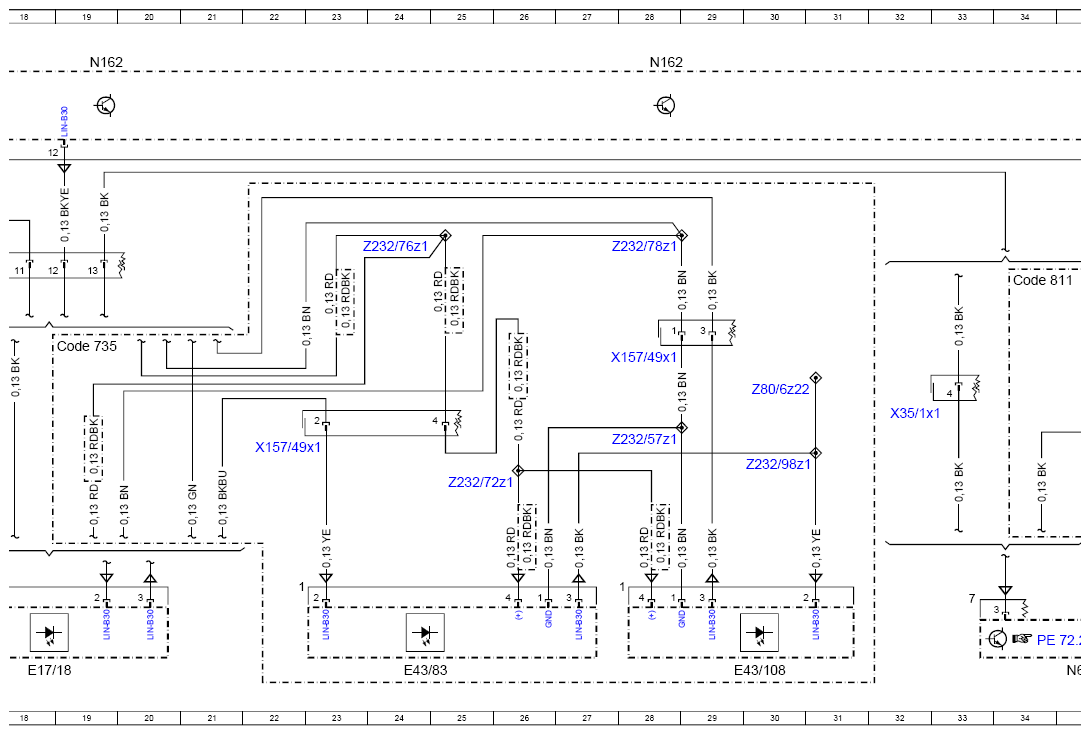

| E43/83 | Inner left front seat trim element ambient lighting | 24L |
| E43/84 | Inner right front seat trim element ambient lighting | 53L |

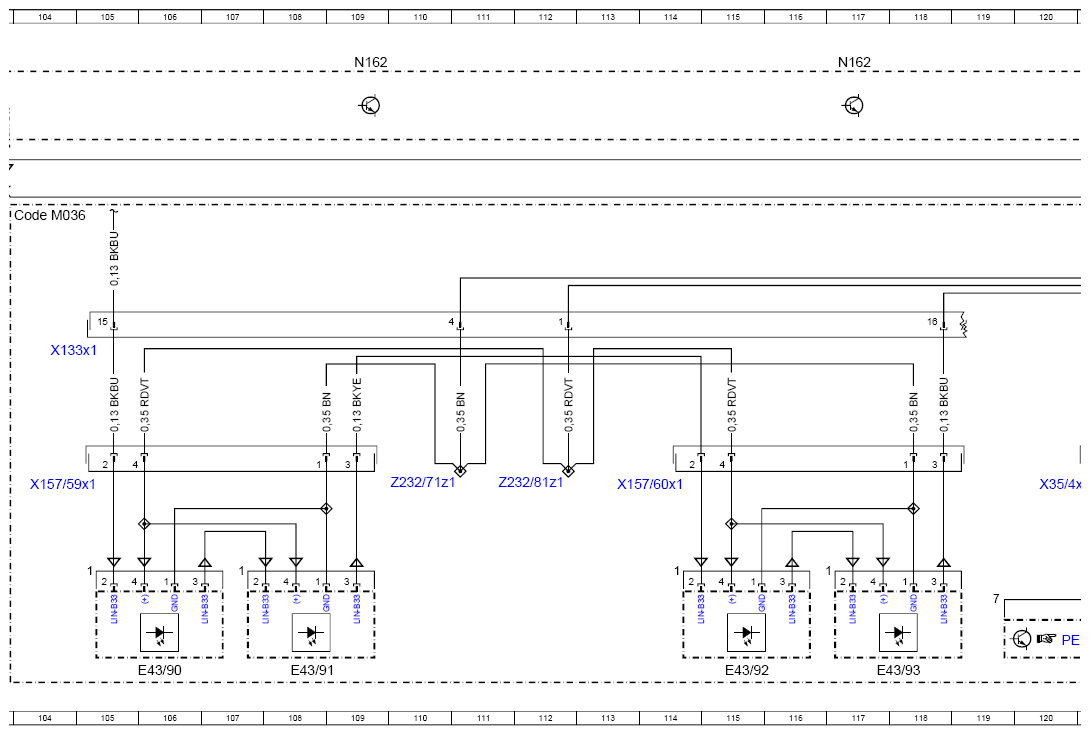

| E43/90 | Left front panoramic sliding sunroof ambient lighting | 106L |
| E43/91 | Right front panoramic sliding sunroof ambient lighting | 108L |
| E43/92 | Left rear panoramic sliding sunroof ambient lighting | 115L |
| E43/93 | Right rear panoramic sliding sunroof ambient lighting | 117L |
| E43/94 | Left rear seat outer left ambient lighting | 151L |
| E43/95 | Left rear seat left ambient lighting | 137L |
| E43/96 | Left rear seat left ambient lighting | 148L |
| E43/97 | Right rear seat right ambient lighting | 133L |
| F152/2 | Rear fuse and relay module | 6L |
| F152/2f417 | Fuse 417 | 5L |

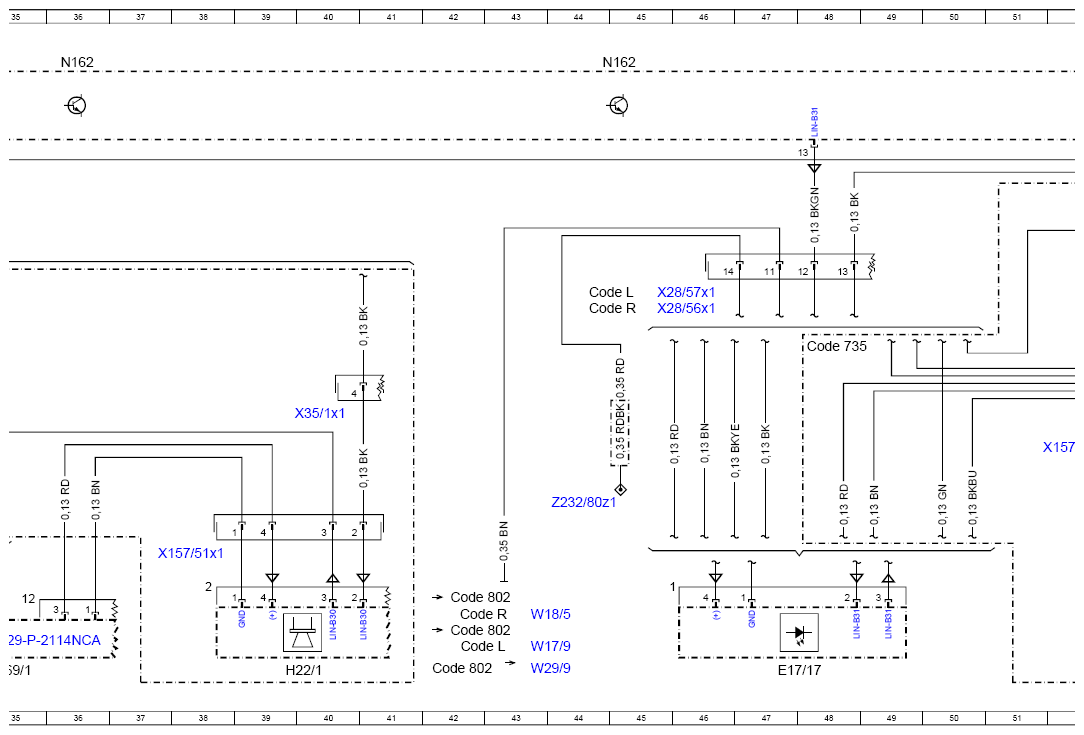

| H22/1 | Left front tweeter (High End) | 39L |
| H22/2 | Right front tweeter (High End) | 69L |

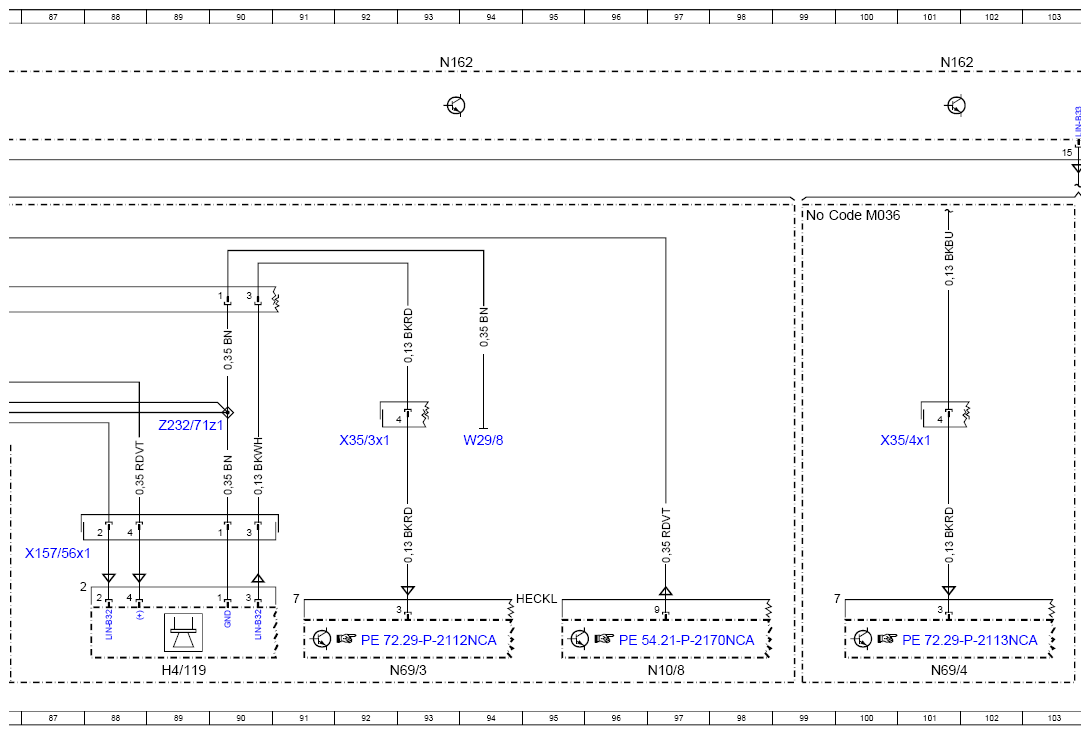

| H4/119 | Left rear midrange speaker | 89L |
| H4/120 | Right rear midrange speaker | 78L |
| H4/129 | Center rear headliner midrange speaker | 84L |
| N10/6 | Front central control unit | 13L |
| N10/6 | Front central control unit | 177L |
| N10/6 | Front central control unit | 248L |
| N10/6 | Front central control unit | 203L |
| N10/8 | Rear central control unit | 97L |
| N10/8 | Rear central control unit | 125L |
| N10/8 | Rear central control unit | 141L |

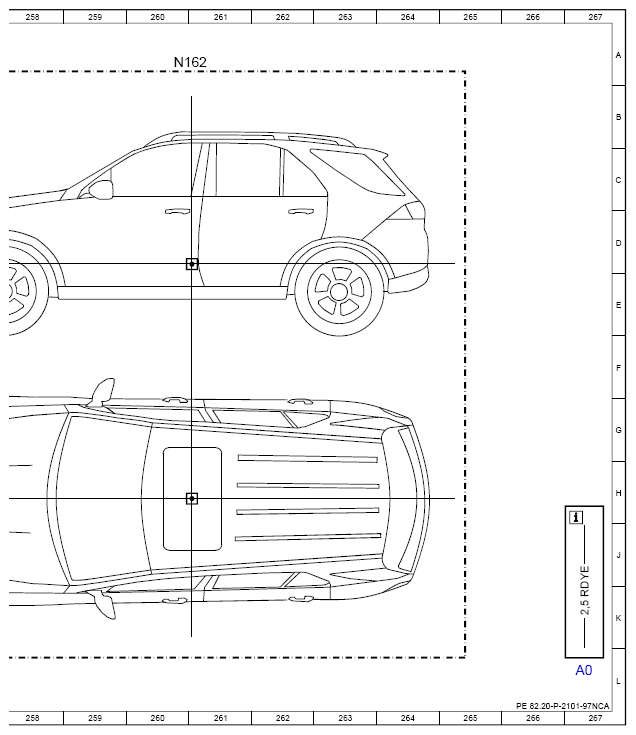

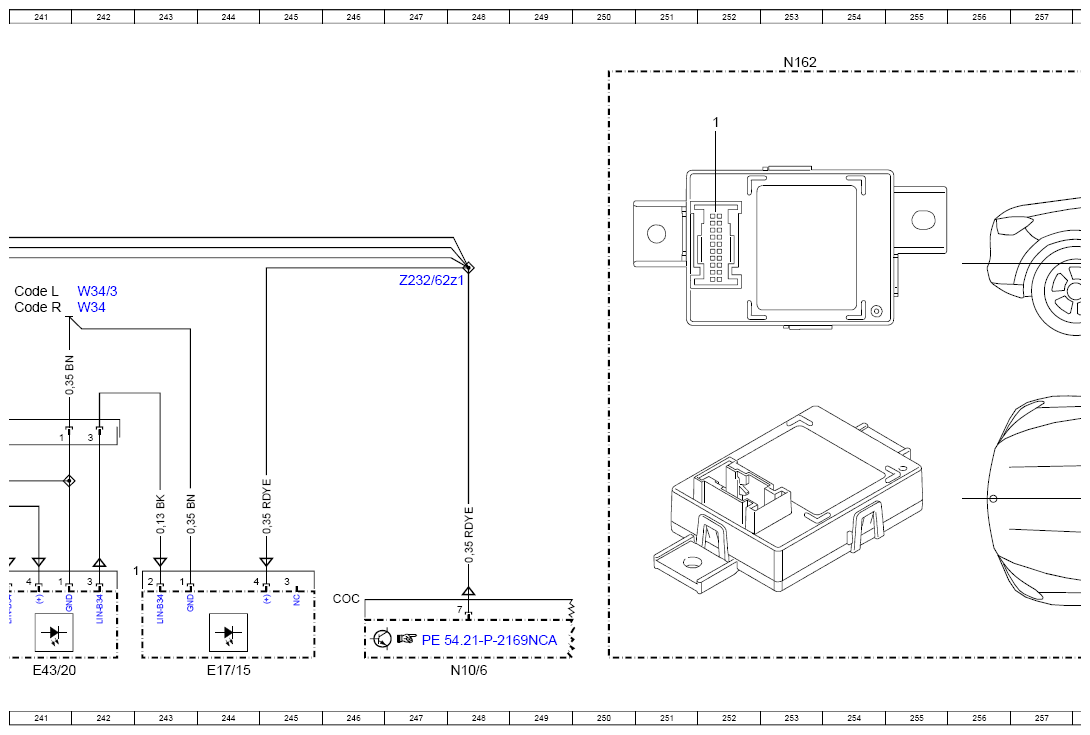

| N162 | Ambiance illumination control unit | 3A |
| N162 | Ambiance illumination control unit | 11A |
| N162 | Ambiance illumination control unit | 45A |
| N162 | Ambiance illumination control unit | 53A |
| N162 | Ambiance illumination control unit | 61A |
| N162 | Ambiance illumination control unit | 69A |
| N162 | Ambiance illumination control unit | 77A |
| N162 | Ambiance illumination control unit | 85A |
| N162 | Ambiance illumination control unit | 93A |
| N162 | Ambiance illumination control unit | 101A |
| N162 | Ambiance illumination control unit | 109A |
| N162 | Ambiance illumination control unit | 117A |
| N162 | Ambiance illumination control unit | 141A |
| N162 | Ambiance illumination control unit | 125A |
| N162 | Ambiance illumination control unit | 133A |
| N162 | Ambiance illumination control unit | 149A |
| N162 | Ambiance illumination control unit | 157A |
| N162 | Ambiance illumination control unit | 253A |
| N162 | Ambiance illumination control unit | 260A |
| N162 | Ambiance illumination control unit | 19A |
| N162 | Ambiance illumination control unit | 28A |
| N162 | Ambiance illumination control unit | 36A |
| N162 | Ambiance illumination control unit | 166A |
| N162 | Ambiance illumination control unit | 174A |
| N162 | Ambiance illumination control unit | 183A |
| N162 | Ambiance illumination control unit | 191A |
| N162 | Ambiance illumination control unit | 199A |
| N162 | Ambiance illumination control unit | 215A |
| N162 | Ambiance illumination control unit | 222A |
| N162 | Ambiance illumination control unit | 206A |
| N69/1 | Driver door control unit | 35L |
| N69/2 | Front passenger door control unit | 64L |
| N69/3 | Left rear door control unit | 73L |
| N69/3 | Left rear door control unit | 93L |
| N69/4 | Right rear door control unit | 101L |
| N69/4 | Right rear door control unit | 121L |
| W12 | Ground point (center console) | 181C |
| W12 | Ground point (center console) | 200E |
| W12 | Ground point (center console) | 206C |
| W12 | Ground point (center console) | 211E |
| W12 | Ground point (center console) | 217E |
| W17 | Right rear seat ground point | 160L |
| W17 | Right rear seat ground point | 168L |
| W17/9 | Ground point behind left rear seat | 43L |
| W18 | Left front seat crossmember ground point | 13C |
| W18/5 | Right B-pillar ground point | 13C |
| W18/5 | Right B-pillar ground point | 8E |
| W18/5 | Right B-pillar ground point | 43K |
| W29/8 | Left D-pillar ground point | 94G |
| W29/8 | Left D-pillar ground point | 128L |
| W29/9 | Right D-pillar ground point | 8E |
| W29/9 | Right D-pillar ground point | 43L |
| W34 | Left footwell ground point | 225G |
| W34 | Left footwell ground point | 242E |
| W34/3 | Right footwell ground point | 225G |
| W34/3 | Right footwell ground point | 242E |
| W52/6 | Right center longitudinal member ground point | 139L |
| X133x1 | Roof/vehicle interior electrical connector | 76E |
| X133x1 | Roof/vehicle interior electrical connector | 104F |
| X138/1x1 | Front center console electrical connector | 179E |
| X138/1x1 | Front center console electrical connector | 205E |
| X138/1x2 | Front center console electrical connector | 214G |
| X138/6x1 | Rear center console electrical connector | 161G |
| X157/30x1 | Stowage compartment lamp electrical connector | 214J |
| X157/47x1 | Left center console ambiance illumination electrical connector | 183H |
| X157/48x1 | Right center console ambient lighting electrical connector | 189H |
| X157/49x1 | Left front seat trim element ambient lighting electrical connector | 22G |
| X157/49x1 | Left front seat trim element ambient lighting electrical connector | 28F |
| X157/50x1 | Right front seat trim element ambient lighting electrical connector | 52G |
| X157/50x1 | Right front seat trim element ambient lighting electrical connector | 57F |
| X157/51x1 | Left tweeter ambient lighting electrical connector | 38J |
| X157/52x1 | Right tweeter ambient lighting electrical connector | 67J |
| X157/53x1 | Center console cup holder ambient lighting electrical connector | 194H |
| X157/53x1 | Center console cup holder ambient lighting electrical connector | 205J |
| X157/54x1 | Rear center console cup holder ambient lighting electrical connector | 198H |
| X157/54x1 | Rear center console cup holder ambient lighting electrical connector | 210H |
| X157/54x1 | Rear center console cup holder ambient lighting electrical connector | 218H |
| X157/55x1 | Rear Audio/COMAND display ambient lighting electrical connector | 154H |
| X157/55x1 | Rear Audio/COMAND display ambient lighting electrical connector | 169H |
| X157/56x1 | Left rear mid-range speaker ambient lighting electrical connector | 87J |
| X157/57x1 | Center rear mid-range speaker ambient lighting electrical connector | 83J |
| X157/58x1 | Right rear mid-range speaker ambient lighting electrical connector | 76J |
| X157/59x1 | Front panoramic sliding sunroof ambient lighting electrical connector | 104H |
| X157/5x1 | Front passenger trim element ambient lighting electrical connector | 237H |
| X157/60x1 | Rear panoramic sliding sunroof ambient lighting electrical connector | 114H |
| X157/61x1 | Left rear seat outer left ambient lighting electrical connector | 150H |
| X157/62x1 | Left rear seat left ambient lighting electrical connector | 147H |
| X157/63x1 | Left rear seat right ambient lighting electrical connector | 143H |
| X157/66x1 | Left rear center console ambient lighting electrical connector | 164J |
| X157/67x1 | Right rear center console ambient lighting electrical connector | 161J |
| X157/69x1 | Right rear seat outer right ambient lighting electrical connector | 135H |
| X157/70x1 | Right rear seat right ambient lighting electrical connector | 132H |
| X157/71x1 | Right rear seat left ambient lighting electrical connector | 129H |
| X18/54x2 | Front passenger cockpit/interior wiring harness electrical connector | 222G |
| X240/2x2 | 2nd seat row armrest electrical connector | 154G |
| X28/56x1 | Driver seat electrical connector | 17E |
| X28/56x1 | Driver seat electrical connector | 46E |
| X28/57x1 | Front passenger seat electrical connector | 17E |
| X28/57x1 | Front passenger seat electrical connector | 46E |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 10L |
| X35/1x1 | Left front door electrical connector | 32G |
| X35/1x1 | Left front door electrical connector | 40G |
| X35/2x1 | Right front door electrical connector | 62G |
| X35/2x1 | Right front door electrical connector | 69G |
| X35/3x1 | Left rear door electrical connector | 72G |
| X35/3x1 | Left rear door electrical connector | 92G |
| X35/4x1 | Right rear door electrical connector | 120H |
| X35/4x1 | Right rear door electrical connector | 101G |
| Z232/127z1 | Ground connection connector sleeve | 138E |
| Z232/129z1 | Voltage supply connector sleeve | 199E |
| Z232/129z1 | Voltage supply connector sleeve | 157E |
| Z232/129z1 | Voltage supply connector sleeve | 172E |
| Z232/129z1 | Voltage supply connector sleeve | 210D |
| Z232/129z1 | Voltage supply connector sleeve | 216D |
| Z232/129z1 | Voltage supply connector sleeve | 202G |
| Z232/129z1 | Voltage supply connector sleeve | 176G |
| Z232/57z1 | Left front door ambient lighting ground connection end sleeve | 28G |
| Z232/58z1 | Right front door ambient lighting ground connection end sleeve | 57H |
| Z232/62z1 | Voltage supply connector sleeve | 247E |
| Z232/64z1 | Voltage supply connector sleeve | 141E |
| Z232/71z1 | Ground connection connector sleeve | 89G |
| Z232/71z1 | Ground connection connector sleeve | 110H |
| Z232/72z1 | Left front door ambient lighting power supply end sleeve | 25H |
| Z232/73z1 | Right front door ambient lighting power supply end sleeve | 54H |
| Z232/76z1 | Voltage supply connector sleeve | 24D |
| Z232/77z1 | Voltage supply connector sleeve | 54E |
| Z232/78z1 | Ground connection connector sleeve | 28D |
| Z232/79z1 | Ground connection connector sleeve | 57E |
| Z232/80z1 | Voltage supply connector sleeve | 13G |
| Z232/80z1 | Voltage supply connector sleeve | 11C |
| Z232/80z1 | Voltage supply connector sleeve | 44H |
| Z232/81z1 | Voltage supply connector sleeve | 77G |
| Z232/81z1 | Voltage supply connector sleeve | 112H |
| Z232/85z1 | Voltage supply connector sleeve | 179G |
| Z232/85z1 | Voltage supply connector sleeve | 183E |
| Z232/98z1 | Left front door ambient lighting LIN end sleeve | 30H |
| Z232/99z1 | Right front door ambient lighting LIN end sleeve | 59H |
| Z6/79z1 | Front center console circuit 31 connector sleeve | 180H |
| Z6/79z1 | Front center console circuit 31 connector sleeve | 192E |
| Z6/79z1 | Front center console circuit 31 connector sleeve | 206G |
| Z6/80z1 | Rear center console circuit 31 end sleeve | 159H |
| Z6/80z1 | Rear center console circuit 31 end sleeve | 168H |
| Z80/6z22 | LIN B30 connector sleeve | 30F |
| Z80/6z31 | LIN B31 connector sleeve | 59F |
