Remove/Install Cushion Airbag - AR91.60-P-0698MEM
Model 167.9
With Code M036 (Maybach Version)
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Remove seat cushion cover in rear passenger compartment together with seat cushion padding from seat cushion frame (2). | AR91.18-P-1851MEM | |

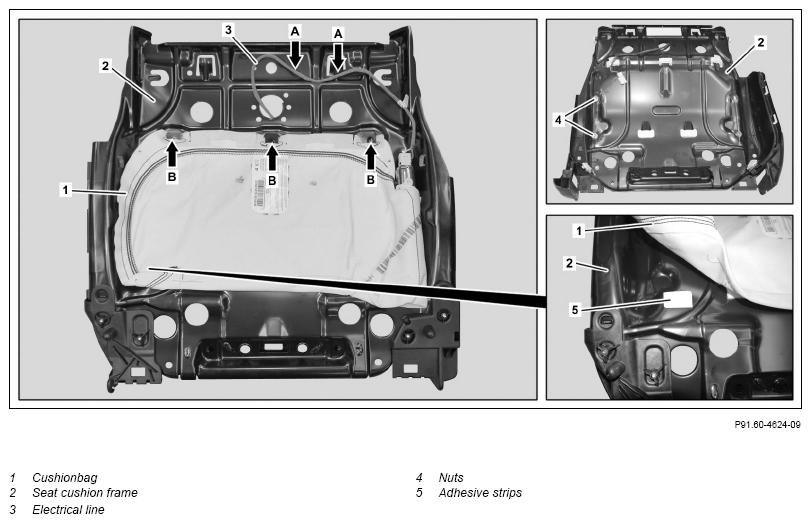

| 2 | Unclip electric line (3) from seat cushion frame (2) (arrows A) and guide electric line (3) upward through seat cushion frame (2). | Fig 1 | |
| 3 | Remove nuts (4) on underside of seat cushion frame (2). | *BA91.60-P-1010-01R | |
| 4 | Separate cushionbag (1) from adhesive strip (5). | ||
| 5 | Unhook cushionbag (1) from hook (arrows B) and remove. | ||
| 6 | Install in the reverse order. | ||
| Check | |||
| 7 | Check Supplemental Restraint System (SRS) using vehicle diagnosis system. | ||
| AD00.00-P-2000-06ME |
AIRBAG
| Number | Designation | Model 167 | |
|---|---|---|---|
| BA91.60-P-1010-01R | Nut, cushionbag to seat cushion frame | Nm | 6 |
