Remove/Install 3rd Row Seat Belts - AR91.40-P-2000MEX
Model 167.9
with code 845 (Electrically folding 3rd seat row)
Shown on left side of vehicle, except code 582 (Rear air conditioning)
| Risk of injury . Injury may result when the tension in the spring in the automatic belt retractor is released. | Never disassemble automatic belt retractors. | AS91.00-Z-0002-01A | |
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Remove side load compartment trim. | Model 167.9 with code 845 (Electrically folding 3rd seat row) Model 167.9 with code 845 (Electrically folding 3rd seat row) except code M036 (Maybach version) |
AR68.30-P-1185MEX |
| 2 | Remove D-pillar trim. | Model 167.9 with code 845 (Electrically folding 3rd seat row) Model 167.9 with code 845 (Electrically folding 3rd seat row) except code M036 (Maybach version) |
AR68.30-P-4497MEX |
| 3 | Disconnect ground line from on-board electrical system battery. | AR54.10-P-0003ME | |

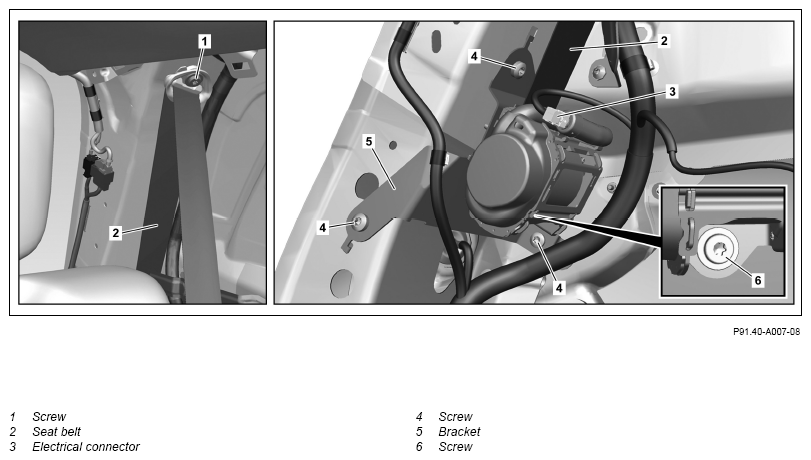

| 4 | Remove screw (1) and place seat belt (2) with seat belt guide bracket to one side. | *BA91.40-P-1017-01U | |
| 5 | Disconnect electrical connector (3). | Fig 1 | |
| 6 | Unscrew screws (4) and remove seat belt (2) with seat belt retractor and holder (5). | Model 167.9 with code 582 (Rear air conditioner) with code 845 (Electrically folding 3rd seat row) |
*BA91.40-P-1016-01U |
| 7 | Unscrew screw (6) and remove seat belt (2) with seat belt retractor from holder (5). | *BA91.40-P-1015-01U | |
| 8 | Install in the reverse order. | ||
| 9 | Check Supplemental Restraint System (SRS) using vehicle diagnosis system. | ||
| AD00.00-P-2000-06ME |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 167 | |
|---|---|---|---|
| BA91.40-P-1015-01U | Screw, seat belt retractor for 3rd seat row to D-pillar holder | Nm | 35 |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 167 | |
|---|---|---|---|
| BA91.40-P-1016-01U | Screw, seat belt retractor holder to D-pillar | Nm | 35 |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 167 | |
|---|---|---|---|
| BA91.40-P-1017-01U | Screw/bolt, belt guide bracket to D-pillar | Nm | 35 |
