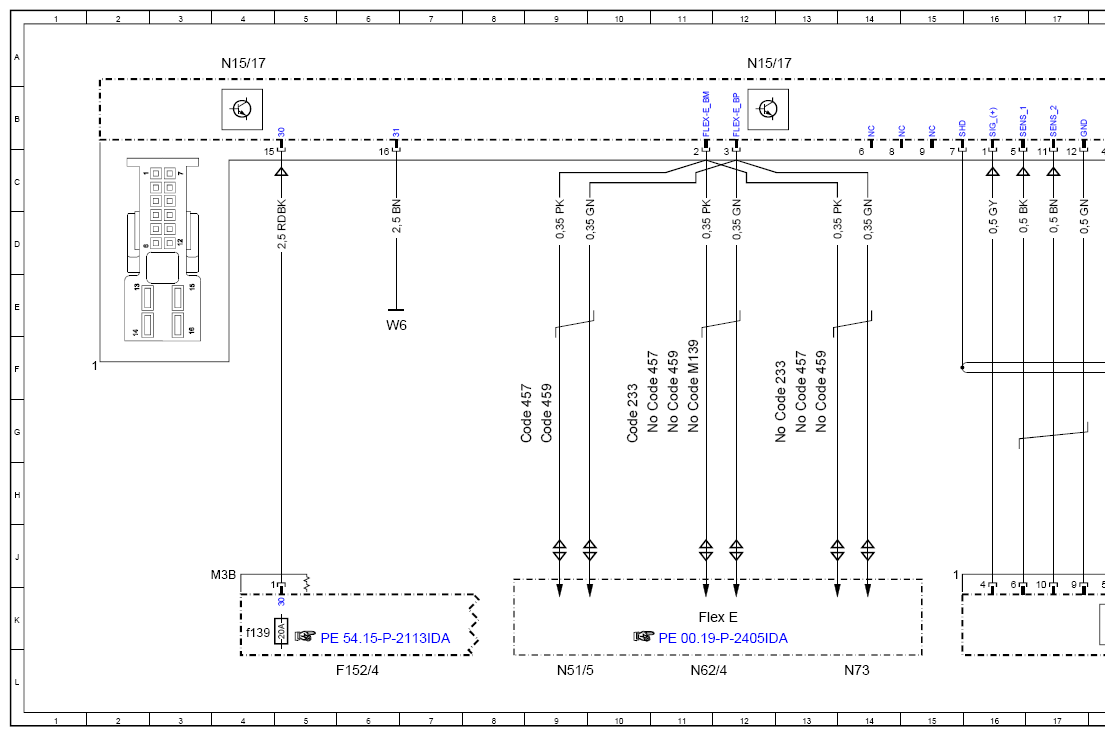

Wiring Diagram Of All-Wheel Drive Control Unit - PE28.19-P-2103-97IDA
Model 247 with code M005 (Vehicles with 4MATIC/all-wheel drive)

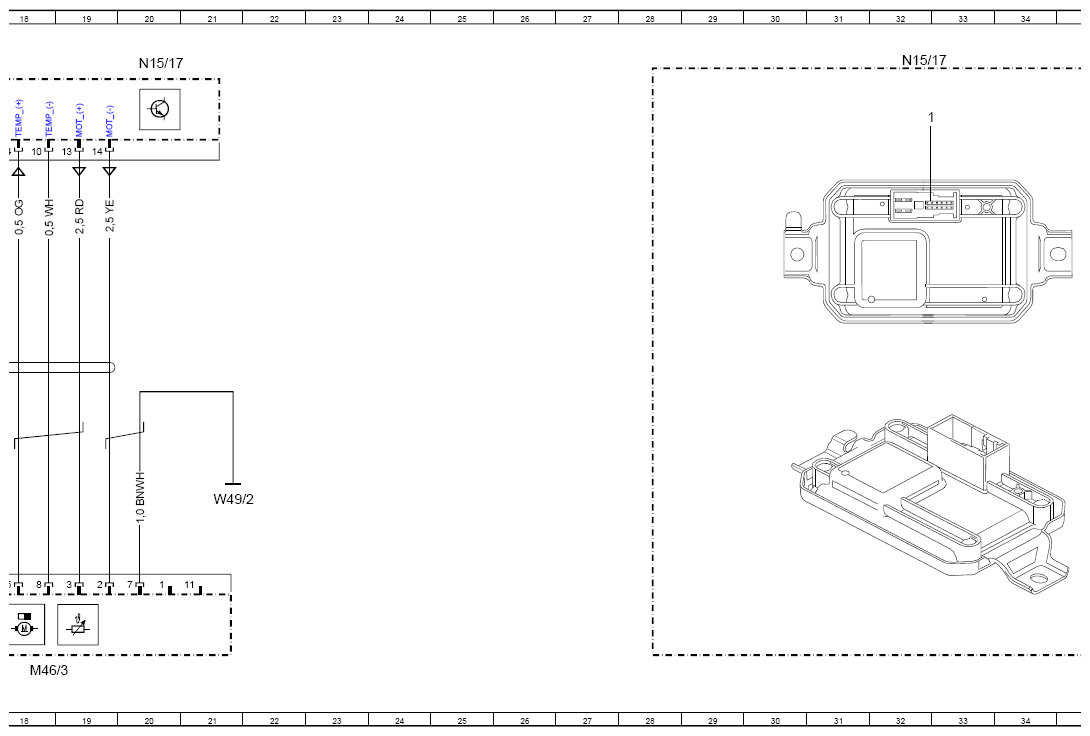

Control unit N15/17
| Code: | Designation: | Position: |
|---|---|---|

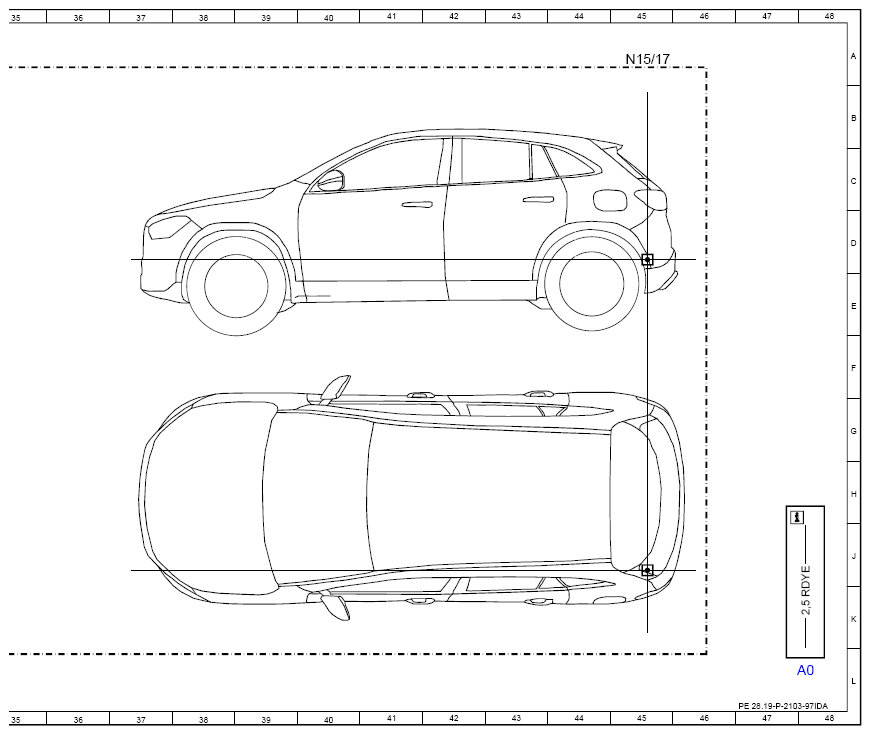

| A0 | Use of wiring diagrams | 48L |
| Code 233 | Adaptive cruise control Plus (DISTRONIC PLUS) | 10G |
| Code 233 | Adaptive cruise control Plus (DISTRONIC PLUS) | 13G |
| Code 457 | Comfort suspension with adjustable damping | 11G |
| Code 457 | Comfort suspension with adjustable damping | 13G |
| Code 457 | Comfort suspension with adjustable damping | 9G |
| Code 459 | Steel suspension with adjustable damping | 11G |
| Code 459 | Steel suspension with adjustable damping | 9G |
| Code 459 | Steel suspension with adjustable damping | 13G |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 11G |
| F15/4 | Vehicle interior fuse and relay module | 6L |
| F15/4f139 | Fuse 139 | 4K |
| Flex E | Chassis FlexRay | 11K |
| M4/3 | Rear axle differential drive unit | 18L |
| N1/17 | All-wheel drive control unit | 4A |
| N1/17 | All-wheel drive control unit | 32A |
| N1/17 | All-wheel drive control unit | 45A |
| N1/17 | All-wheel drive control unit | 12A |
| N1/17 | All-wheel drive control unit | 20A |
| N5/5 | Adaptive damping system control unit | 9L |
| N6/4 | Mercedes-Benz Intelligent Drive control unit | 11L |
| N73 | Electronic ignition switch control unit | 14L |
| W4/2 | Differential lock actuator ground point | 21H |
| W6 | Left wheel arch trunk ground point | 6E |
