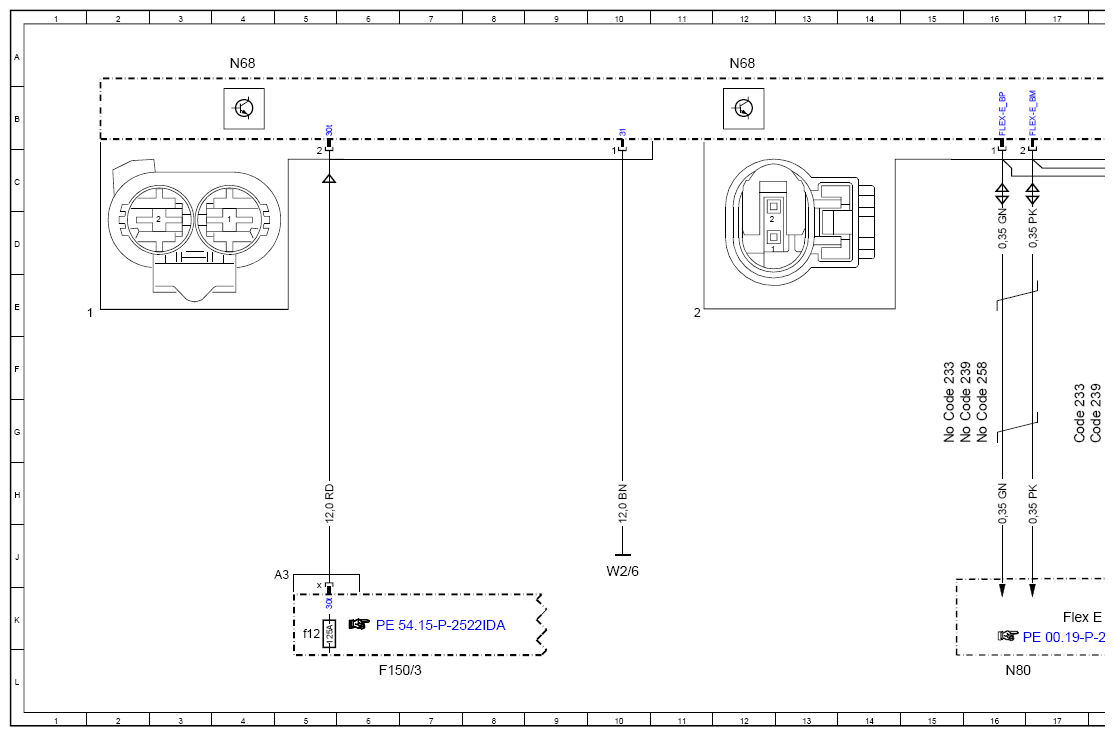

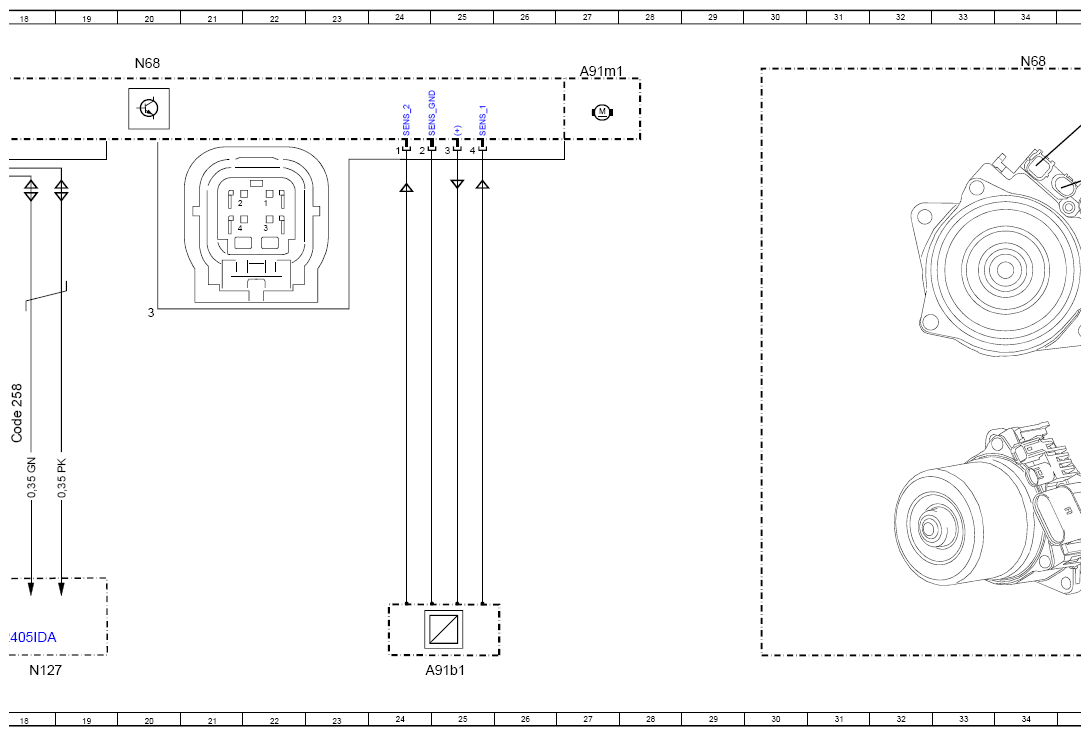

Wiring Diagram For Electric Power Steering Control Unit - PE46.35-P-2101-97IDA
Model 247

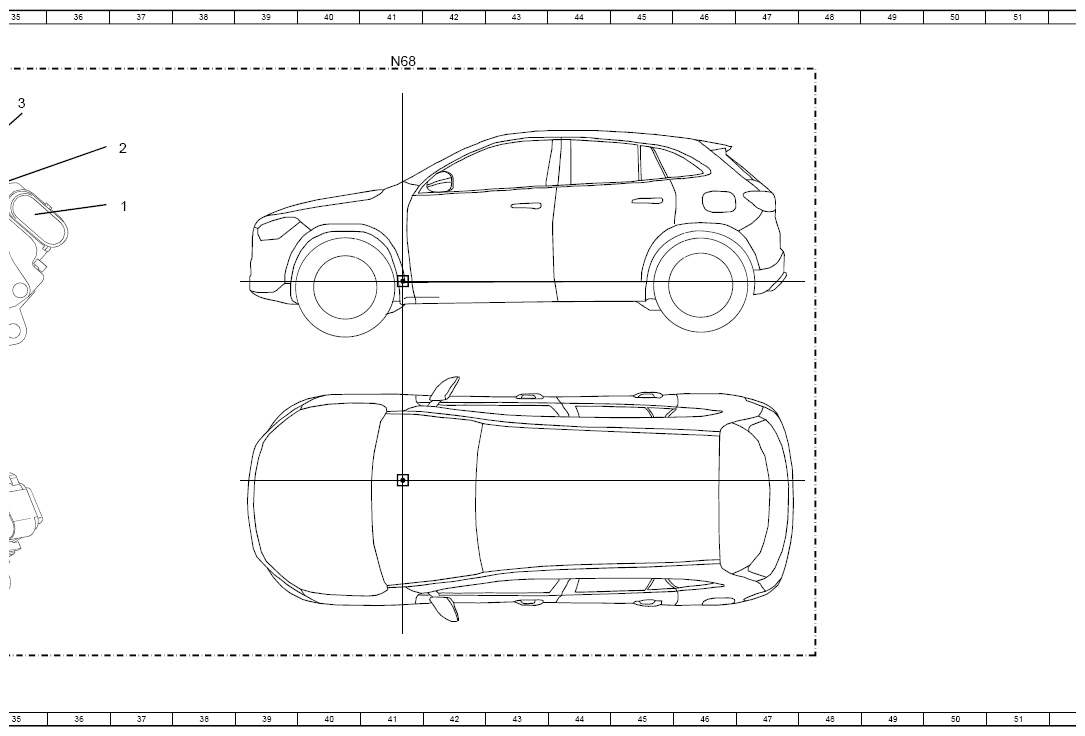

Control unit N68
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 56L |
| A91b1 | Electric power steering torque sensor | 25L |
| A91m1 | Electric power steering actuator motor | 27A |
| Code 233 | DISTRONIC Distance-Pilot | 17G |
| Code 233 | DISTRONIC Distance-Pilot | 15G |
| Code 239 | Active Distance Assist DISTRONIC | 18G |
| Code 239 | Active Distance Assist DISTRONIC | 16G |
| Code 258 | Active Brake Assist | 16G |
| Code 258 | Active Brake Assist | 18G |
| F15/3 | Engine compartment prefuse box | 6L |
| F15/3f12 | Fuse | 12 |
| Flex E | Chassis FlexRay | 17K |
| N127 | Drivetrain control unit | 18L |
| N68 | Electrical power steering control unit | 4A |
| N68 | Electrical power steering control unit | 12A |
| N68 | Electrical power steering control unit | 34A |
| N68 | Electrical power steering control unit | 41A |
| N68 | Electrical power steering control unit | 20A |
| N80 | Steering column module control unit | 16L |
| W/6 | Electric power steering ground point | 10J |
