Wiring Diagram For Lumbar Support Control Unit - PE91.29-P-2113-97IDA
Model 247 with code U22 (Lumbar support adjustment)
Control unit N32/23, N32/24
| Code: | Designation: | Position: |
|---|---|---|

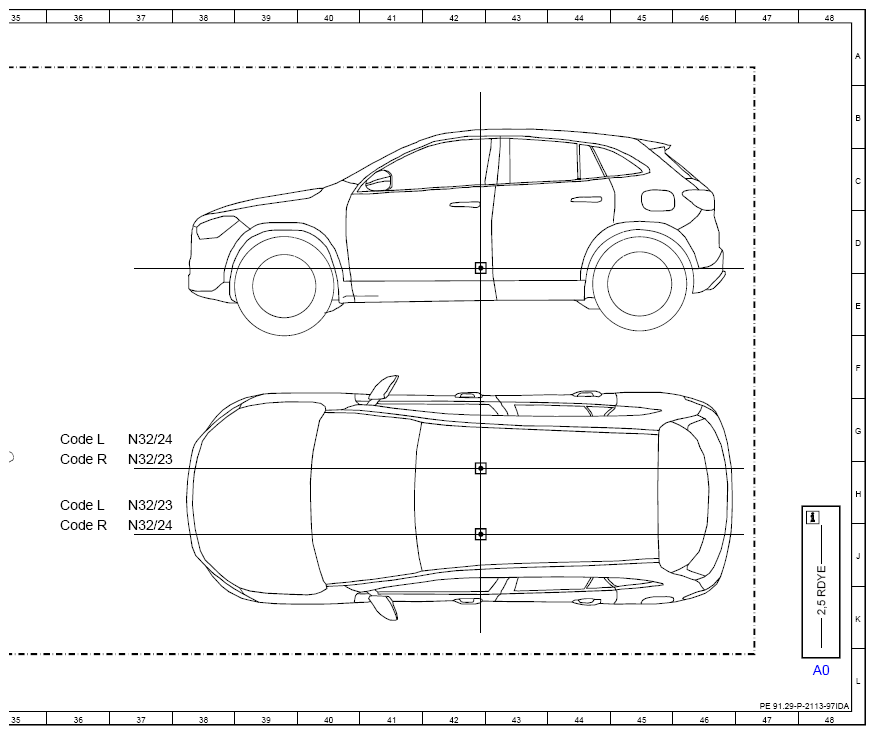

| A0 | Use of wiring diagrams | 48L |
| Code L | LEFT-HAND DRIVE | 20H |
| Code L | LEFT-HAND DRIVE | 10H |
| Code L | LEFT-HAND DRIVE | 36G |
| Code L | LEFT-HAND DRIVE | 36H |
| Code R | RIGHT-HAND DRIVE | 21H |
| Code R | RIGHT-HAND DRIVE | 9H |
| Code R | RIGHT-HAND DRIVE | 36H |
| Code R | RIGHT-HAND DRIVE | 36J |
| F152/4 | Vehicle interior fuse and relay module | 6L |
| F152/4f116 | Fuse 116 | 5K |
| M25/4 | Driver seat lumbar support pneumatic pump | 11L |
| M25/5 | Front passenger seat lumbar support pneumatic pump | 23L |

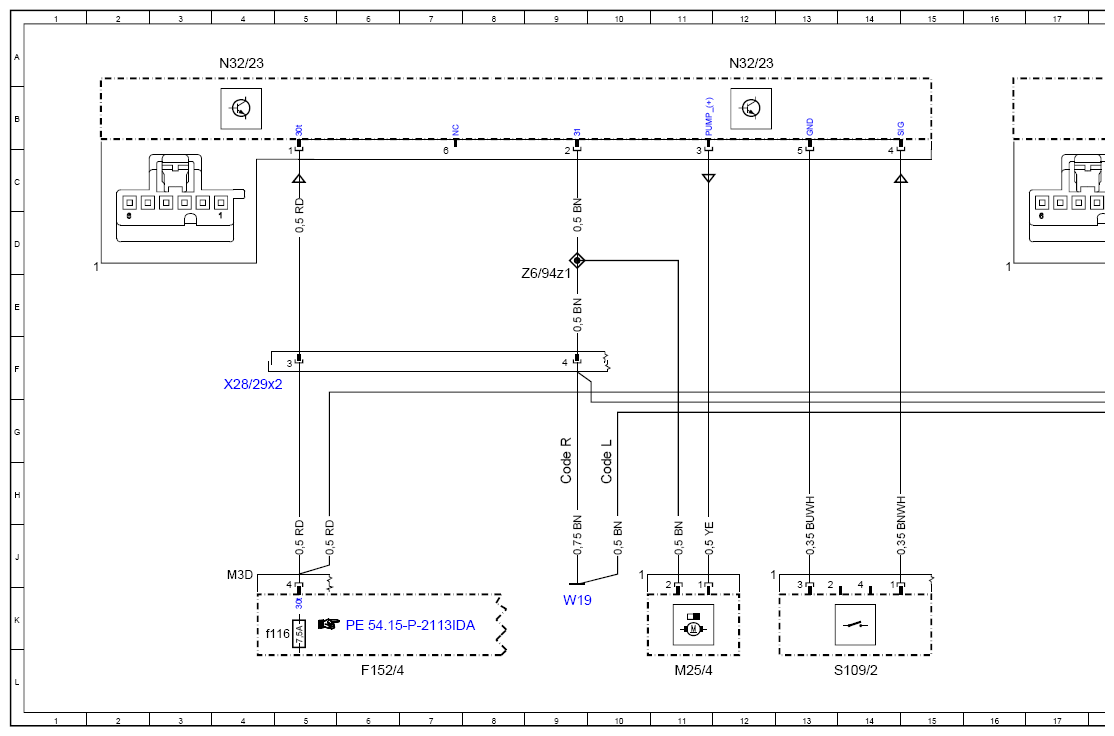

| N32/23 | Driver's seat lumbar support electropneumatic controller unit | 4A |
| N32/23 | Driver's seat lumbar support electropneumatic controller unit | 31A |
| N32/23 | Driver's seat lumbar support electropneumatic controller unit | 12A |
| N32/23 | Driver's seat lumbar support electropneumatic controller unit | 37H |
| N32/23 | Driver's seat lumbar support electropneumatic controller unit | 37H |

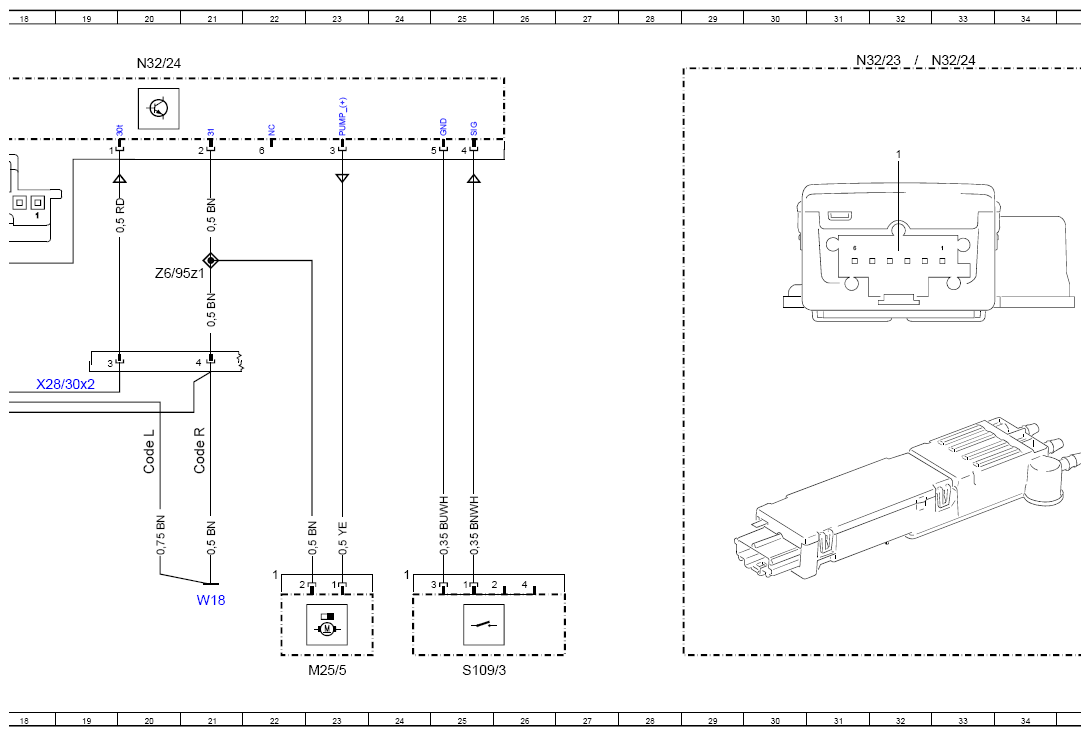

| N32/24 | Front passenger seat lumbar support electropneumatic controller unit | 20A |
| N32/24 | Front passenger seat lumbar support electropneumatic controller unit | 33A |
| N32/24 | Front passenger seat lumbar support electropneumatic controller unit | 37G |
| N32/24 | Front passenger seat lumbar support electropneumatic controller unit | 37J |
| S109/2 | Driver seat lumbar support adjustment switch | 14L |
| S109/3 | Front passenger seat lumbar support adjustment switch | 25L |
| W18 | Left front seat crossmember ground point | 21K |
| W19 | Right front seat crossmember ground point | 9K |
| X28/29x2 | Frame floor assembly/driver seat electrical connector | 4F |
| X28/30x2 | Frame floor assembly/front passenger seat electrical connector | 18F |
| Z6/94z1 | Ground connection connector sleeve | 9E |
| Z6/95z1 | Ground connection connector sleeve | 20E |
