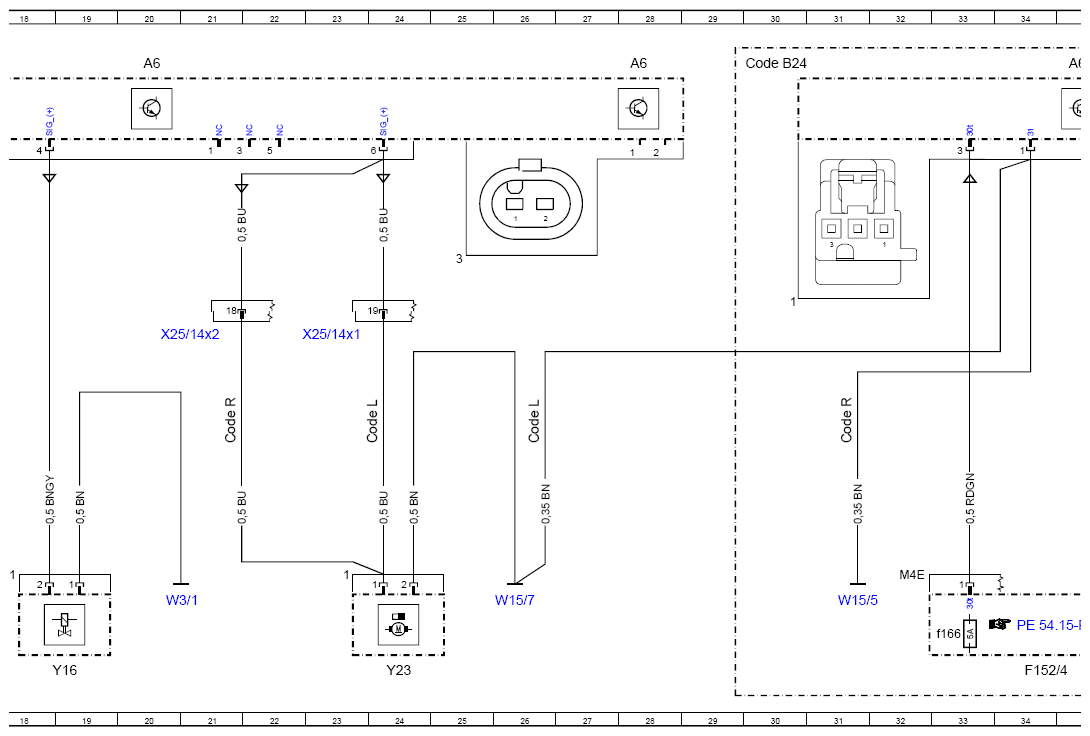

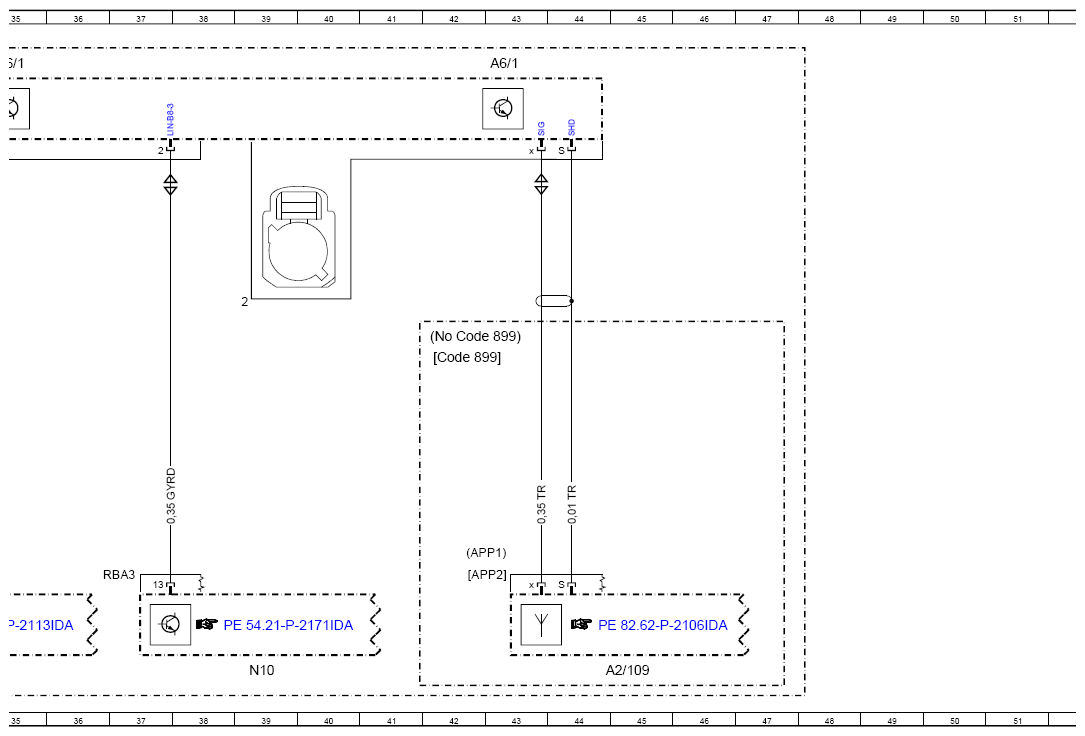

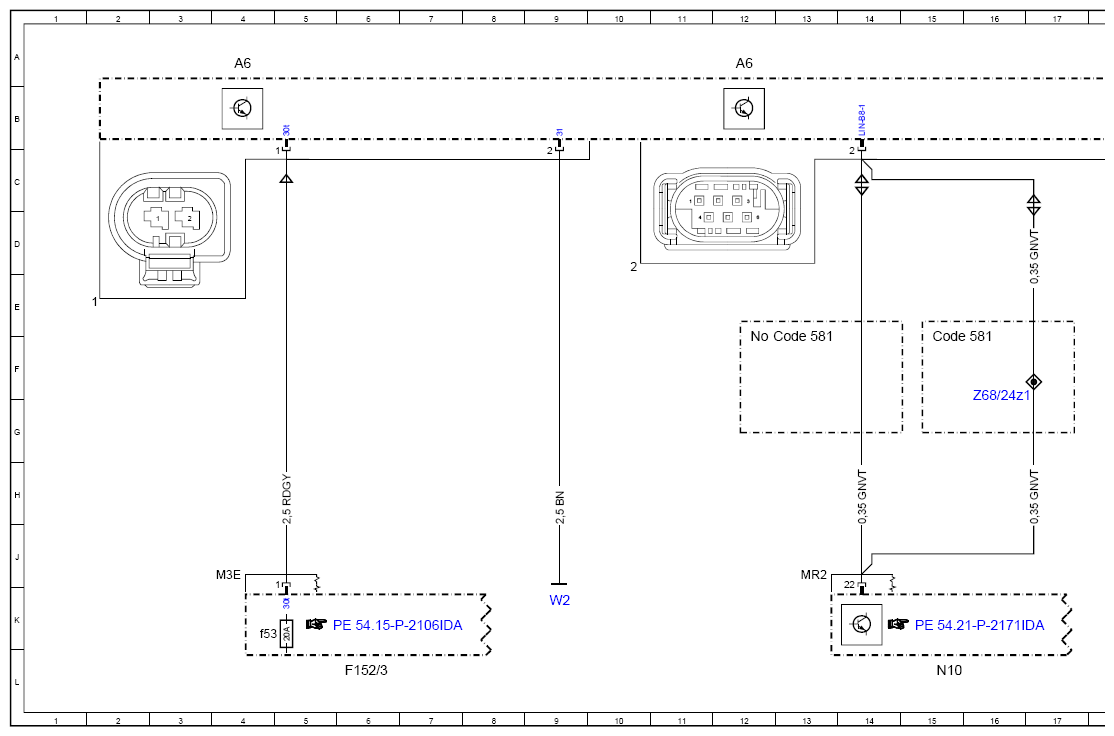

Wiring Diagram Of Stationary Heater (STH) Control Module - PE83.70-P-2101-97IDA
Model 247 with code 228 (Additional warm water heating)
Control unit A6
Model 247 with code B24 (Remote control for Auxiliary heating)
Control unit A6/1
| Code: | Designation: | Position: |
|---|---|---|

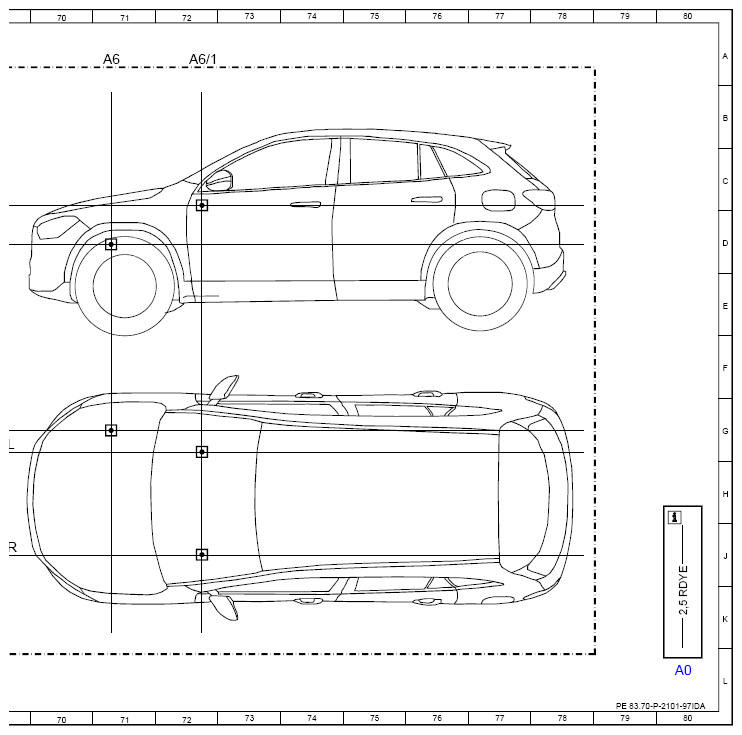

| A0 | Use of wiring diagrams | 80L |
| A2/109 | Telephone antenna splitter | 45L |

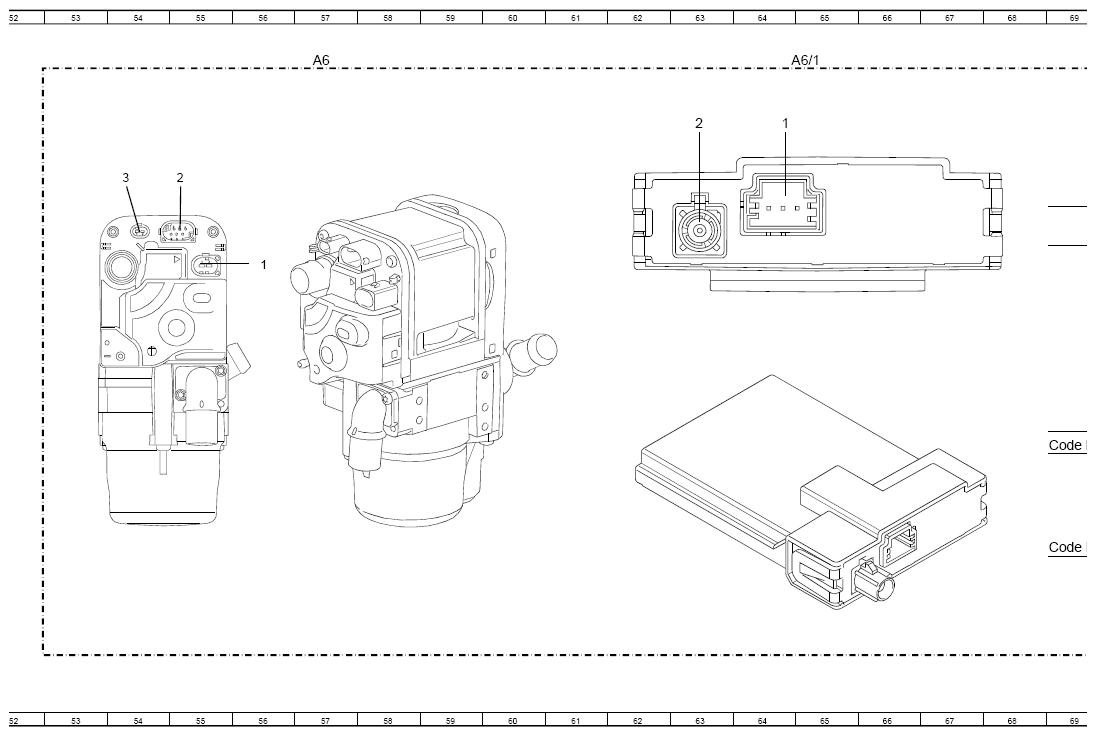

| A6 | Stationary heater unit | 4A |
| A6 | Stationary heater unit | 12A |
| A6 | Stationary heater unit | 20A |
| A6 | Stationary heater unit | 57A |
| A6 | Stationary heater unit | 28A |
| A6 | Stationary heater unit | 71A |
| A6/1 | Stationary heater radio remote control receiver | 35A |
| A6/1 | Stationary heater radio remote control receiver | 43A |
| A6/1 | Stationary heater radio remote control receiver | 65A |
| A6/1 | Stationary heater radio remote control receiver | 72A |
| Code 581 | Automatic air conditioning | 15F |
| Code 581 | Automatic air conditioning | 12F |
| Code 899 | Wireless phone charging at front and antenna | 42F |
| Code 899 | Wireless phone charging at front and antenna | 42F |
| Code B24 | Remote control for stationary heater | 30A |
| Code L | LEFT-HAND DRIVE | 24G |
| Code L | LEFT-HAND DRIVE | 26G |
| Code L | LEFT-HAND DRIVE | 69G |
| Code R | RIGHT-HAND DRIVE | 21G |
| Code R | RIGHT-HAND DRIVE | 31G |
| Code R | RIGHT-HAND DRIVE | 69J |
| F152/3 | Engine compartment fuse and relay module | 6L |
| F152/3f53 | Fuse 53 | 4K |
| F152/4 | Vehicle interior fuse and relay module | 34L |
| F152/4f166 | Electrical fuse 166 | 33K |
| N10 | Central control module | 15L |
| N10 | Central control module | 39L |
| W15/5 | Left front footwell ground point | 31K |
| W15/7 | Right front footwell ground point | 26K |
| W2 | Right front engine compartment ground point | 9K |
| W3/1 | Ground point (right front wheel well) | 20K |
| X25/14x1 | Right engine compartment/vehicle interior electrical connector | 22F |
| X25/14x2 | Right engine compartment/vehicle interior electrical connector | 20F |
| Y16 | Stationary heater switchover valve | 19L |
| Y23 | Stationary heater fuel pump | 24L |
| Z68/24z1 | LIN B8-1 connector sleeve | 16G |
