Wiring Diagram For Liftgate Control Unit - PE72.20-P-2104-97IDA
Model 247 with code 890 (EASY-PACK-tailgate)
Control unit N121
| Code: | Designation: | Position: |
|---|---|---|

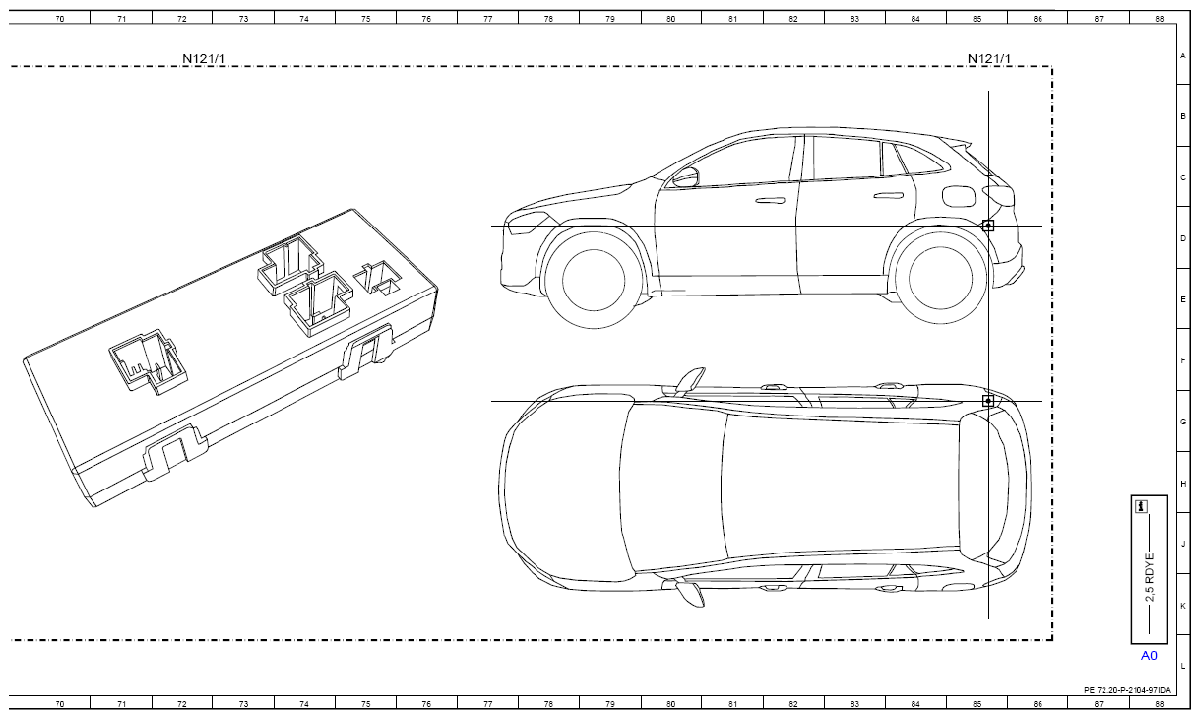

| A0 | Use of wiring diagrams | 88L |
| A85/5 | Trunk lid/1iftgate lock | 29L |
| CAN B | Interior CAN | 22K |
| Code 550 | Trailer hitch | 19D |
| Code 550 | Trailer hitch | 22D |
| Code 550 | Trailer hitch | 11D |
| Code 550 | Trailer hitch | 5D |
| Code 965 | Taxi/rental car - Pre-installation | 5E |
| Code 965 | Taxi/rental car - Pre-installation | 11E |
| Code U63 | Driving school package | 5E |
| Code U63 | Driving school package | 11E |
| Code Z97 | Electronic interface | 5D |
| Code Z97 | Electronic interface | 11D |
| F152/2 | Rear fuse and relay module | 8L |

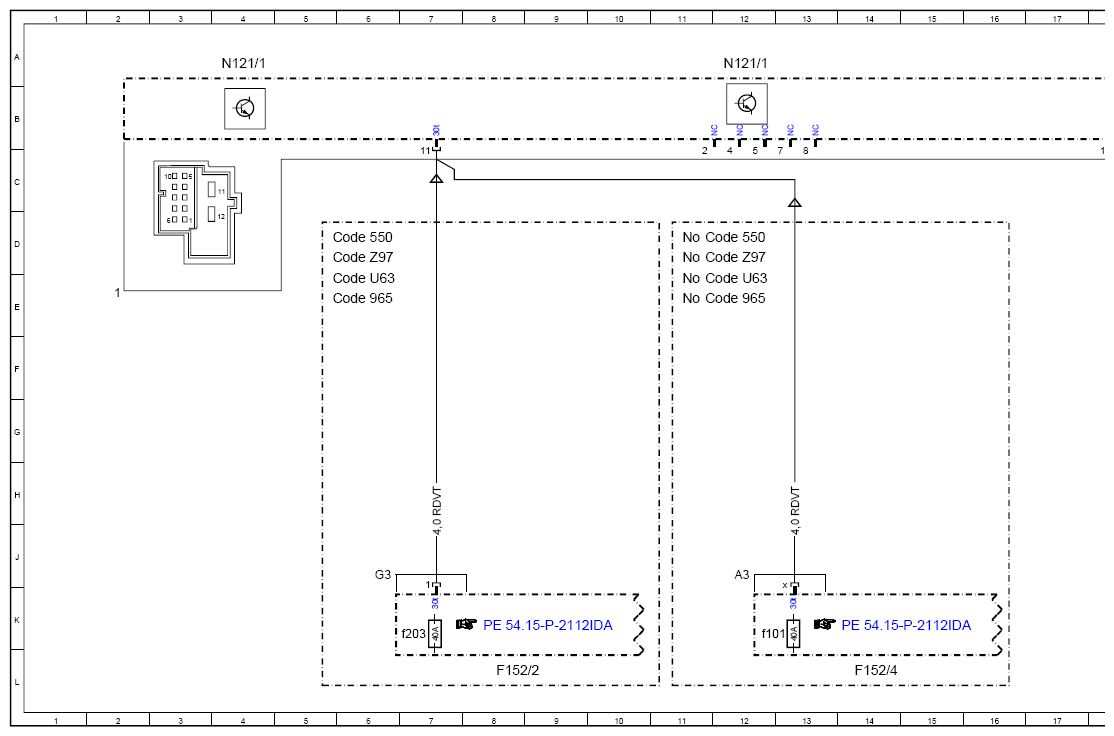

| F152/2f203 | Fuse 203 | 7K |
| F152/4 | Vehicle interior fuse and relay module | 14L |
| F152/4f101 | Fuse 101 | 12K |
| H4/60 | Trunk lid/liftgate control warning buzzer | 26L |
| M14/7 | Tailgate central locking motor | 33L |

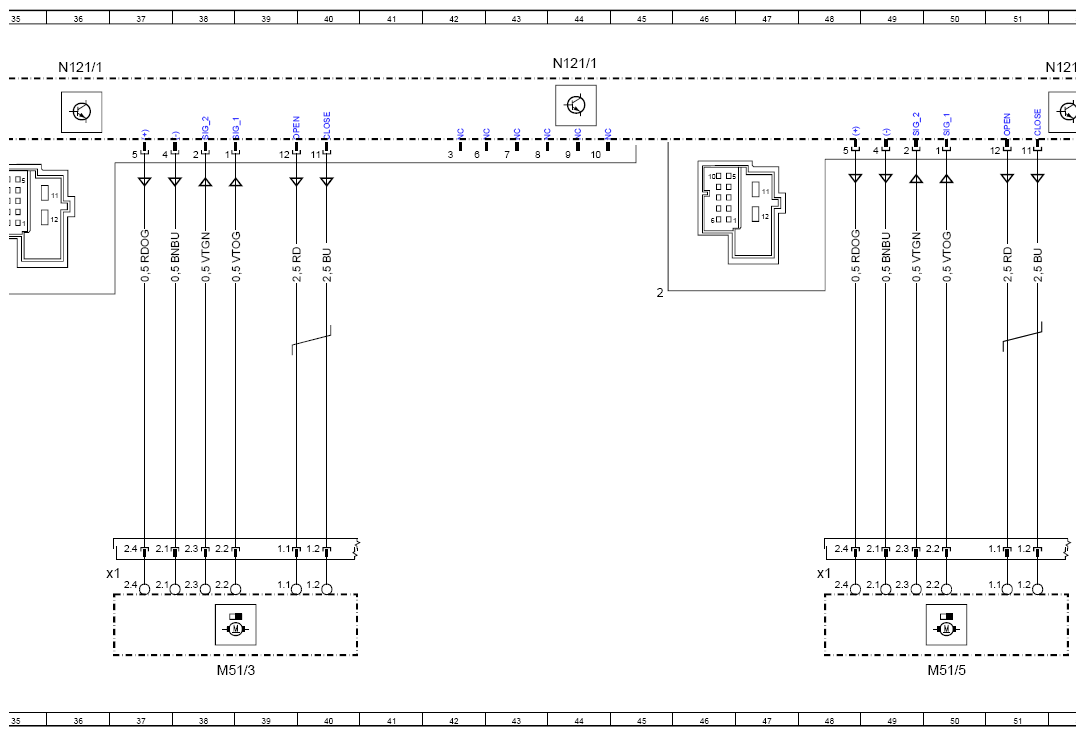

| M51/3 | Right trunk lid/liftgate control drive unit | 38L |
| M51/3x1 | Right trunk lid/liftgate control drive unit electrical connector | 38J |
| M51/5 | Left trunk lid/liftgate control drive unit | 50L |
| M51/5x1 | Left trunk lid/1iftgate control drive unit electrical connector | 38J |
| N10 | Central control module | 22L |
| N121/1 | Trunk lid/liftgate control unit | 4A |
| N121/1 | Trunk lid/liftgate control unit | 28A |
| N121/1 | Trunk lid/liftgate control unit | 36A |
| N121/1 | Trunk lid/liftgate control unit | 44A |
| N121/1 | Trunk lid/liftgate control unit | 12A |
| N121/1 | Trunk lid/liftgate control unit | 85A |
| N121/1 | Trunk lid/liftgate control unit | 65A |
| N121/1 | Trunk lid/liftgate control unit | 72A |
| N121/1 | Trunk lid/liftgate control unit | 20A |
| N121/1 | Trunk lid/liftgate control unit | 52A |
| W7 | Right wheel house trunk ground point | 18J |

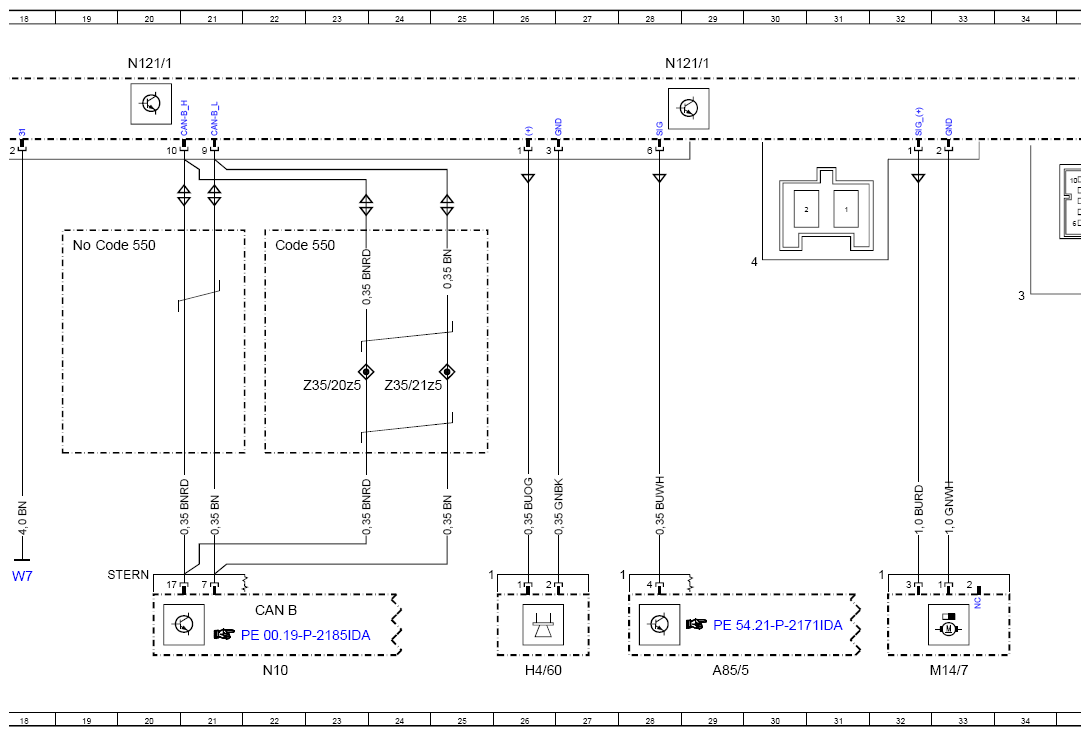

| Z35/20z5 | Interior CAN (CAN B) high end sleeve 5 | 23F |
| Z35/21z5 | Interior CAN (CAN B) low end sleeve 5 | 24F |
