Roof Roller Sunblind Drive Unit, Basic Function - GF77.20-P-2015A
Model all (CAR)
with code 413 (Panoramic sliding sunroof/glass roof)

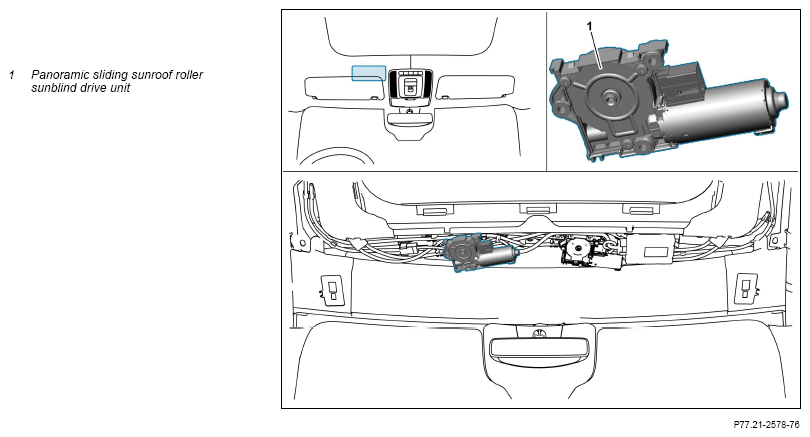

Example illustration
Overview
This document contains information on:
- General
- Function
General
The panoramic sliding sunroof roller sunblind drive unit opens and closes the roller sunblind of the panoramic sliding sunroof and is located on the front roof frame.
The panoramic sliding sunroof control unit actuates the panoramic sliding sunroof roller sunblind drive unit.
Function
The following component parts are integrated in the panoramic sliding sunroof roller sunblind drive unit:
- Hall sensors (position and speed detection)
- Roller sunblind motor (drive of reversing gear)
- Redirecting transmission (conversion of the rotary movement into linear movement of the drive spindle)
| Component descriptions | |||
| Panoramic roof roller sun blind control module component description | Model 206 with code 413 (Panoramic sliding sunroof/glass roof) |
GF77.20-P-4110C |
