Unfasten/Fasten Drip Rail In Area Of Windshield - AR88.80-P-4000MFA
Model 118
Model 177
Model 247
Shown on model 177
Shown on model 177
Shown on model 177
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove | |||
| 1 | Open hood. | ||

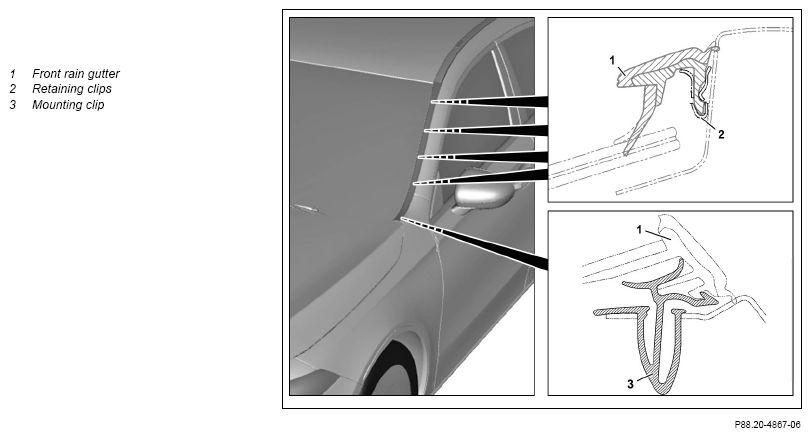

| 2 | Beginning at the bottom, unclip front drip rail (1), lift up, and pull out of the rear drip rail (6) in the direction of travel. | Carefully unclip the front drip rail (1). Otherwise, the front drip rail (1) will be damaged. |
|

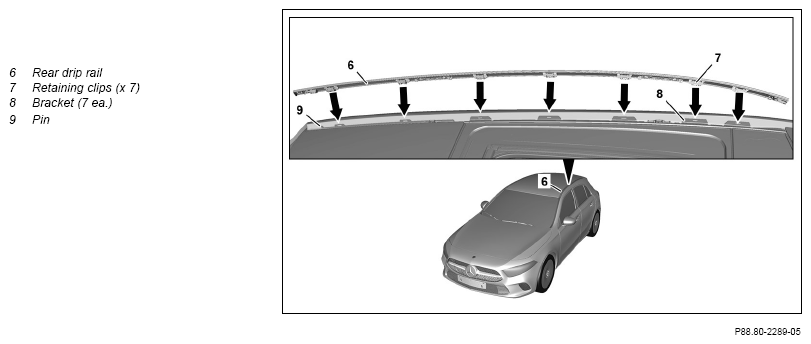

| 3 | Unclip the rear drip rail (6) along the roof frame and place on a suitable mat. | Carefully unclip the rear drip rail (6). Otherwise, the rear drip rail (6) may be permanently deformed and must be replaced. |
|
| Check | |||

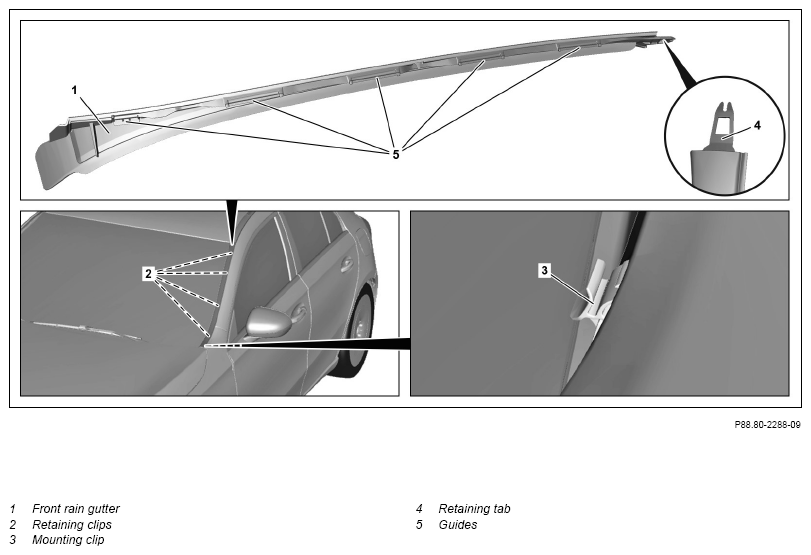

| 4 | Check the retaining clamps (2) and the retaining clip (3) for damage and to ensure that they are seated correctly. | If damaged, ↓ Replace affected retaining clamps (2) and retaining clip (3). |
|
| 5 | Check retaining clamps (7) for any damage and to see if they are seated correctly. | If damaged, ↓ Replace affected retaining clips (7). |
|
| 6 | Check retaining tab (4) and guides (5) for damage. | If damaged, ↓ Replace front drip rail (1). |
|
| Install | |||
| 7 | Position the retaining clamps (7) for the rear drip rail (6) on the holder (8) on the roof. | ||
| 8 | Clip the rear drip rail (6) beginning in the rear. | ||
| 9 | Insert the front drip rail (1) with the retaining tab (4) into the rear drip rail (6) and clip in below in the direction of travel. | ||
| 10 | Close hood. |
