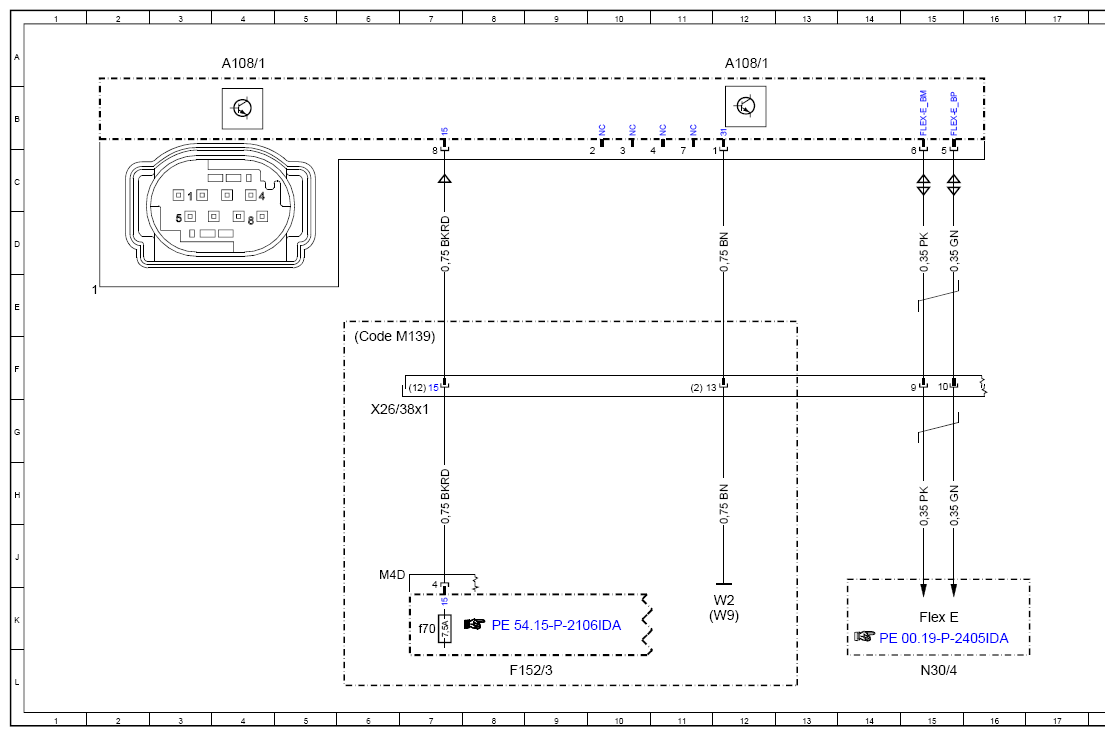

Wiring Diagram For Active Distance Assist Distronic Controller Unit - PE30.30-P-2109-97IDA
Model 247
with code 239 (Adaptive cruise control Pro (DISTRONIC PRO))

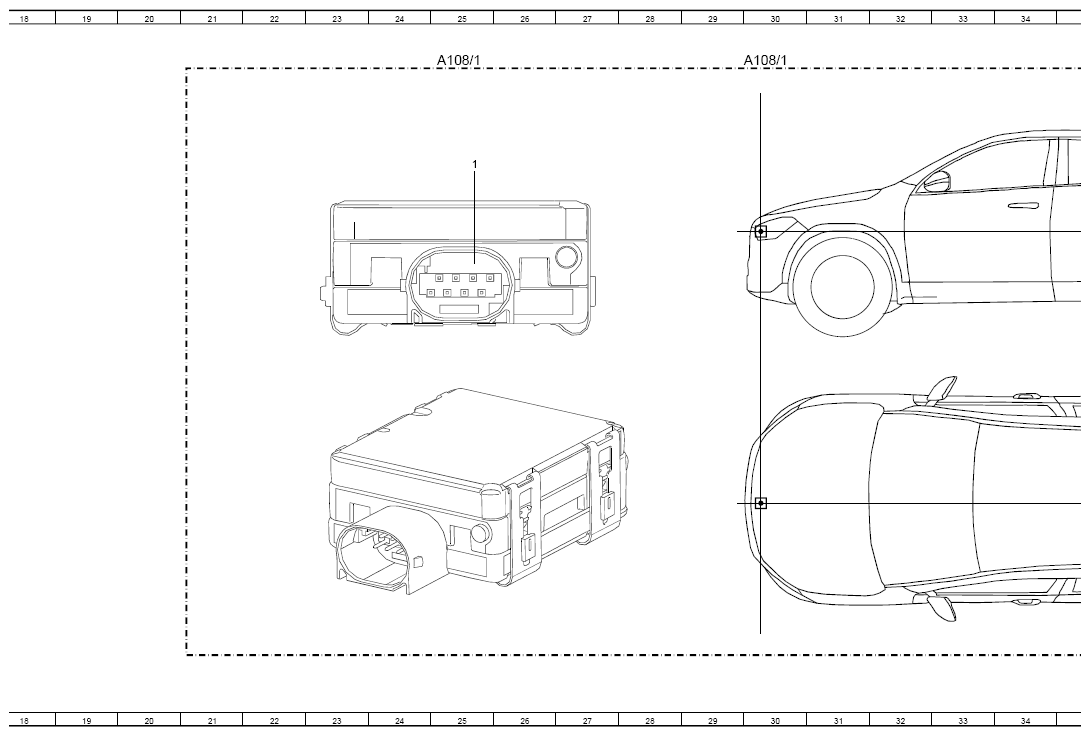

Controller unit A108/1
| Code: | Designation: | Position: |
|---|---|---|

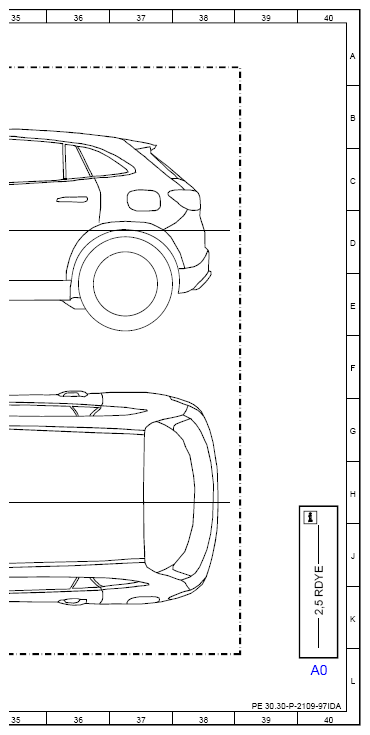

| A0 | Use of wiring diagrams | 40L |
| A10/1 | Active Distance Assist DISTRONIC electric controller unit | 4A |
| A10/1 | Active Distance Assist DISTRONIC electric controller unit | 12A |
| A10/1 | Active Distance Assist DISTRONIC electric controller unit | 25A |
| A10/1 | Active Distance Assist DISTRONIC electric controller unit | 30A |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 6F |
| F15/3 | Engine compartment fuse and relay module | 8L |
| F15/3f70 | Fuse 70 | 7K |
| Flex E | Chassis FlexRay | 15K |
| N3/4 | Electronic Stability Program control unit | 15L |
| W2 | Right front engine compartment ground point | 12K |
| W9 | Left front ground point | 12K |
| X2/38x1 | Front bumper electrical connector | 6G |
