Remove/Install Desiccant Cartridge - AR83.30-P-6521MFG
Model 118, 177, 247 with engine 139

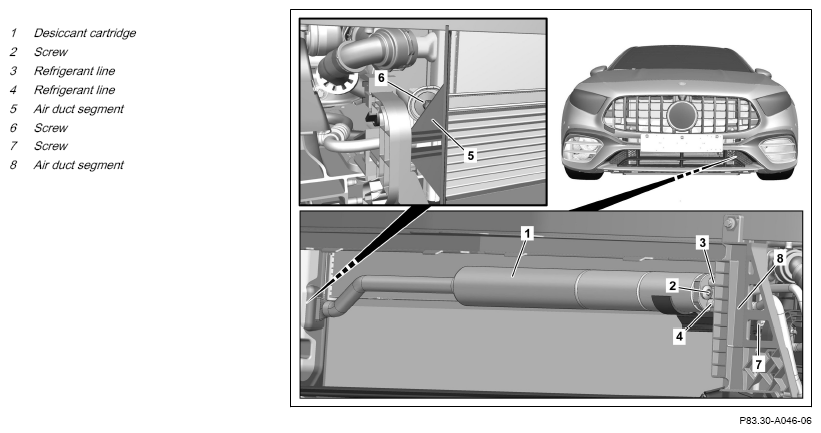

Shown on model 177
| Risk of fire due to ignition of R1234yf refrigerant on hot components. Risk of poisoning caused by inhaling overheated refrigerant vapors. Risk of injury to skin and eyes caused by contact with escaped R1234yf refrigerant and when working on pressurized parts. Risk of explosion due to formation of ignitable refrigerant/air mixtures | Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. | AS83.00-Z-0007-01A | |
| Notice | Protect air conditioning circuit and components from moisture when carrying out repair work | AH83.30-P-0005-01KOA | |
| Notice | Procedure for a damaged or leaky air conditioning system | AH83.30-P-0004-01KOA | |
| Notes on handling refrigerant R1234yf | AH83.30-P-0003-02A | ||
| Remove/install | |||
| 1 | Discharge air conditioning system. | AR83.30-P-1760MFA | |
| 2 | Remove front bumper. | AR88.20-P-2000MFA | |
| 3 | Remove bolt (2). | *BA83.30-P-1010-01T | |
| 4 | Remove refrigerant line (3) and refrigerant line (4) and seal exposed connections with suitable stop plugs. | Fig 3 | |
| Fig 2 | |||
| 5 | Push air duct segment (5) to one side and remove screw (6). | *BA00.10-P-1002-04A | |
| 6 | Push air duct segment (8) to one side and remove screw (7). | *BA00.10-P-1002-04A | |
| 7 | Remove receiver drier (1). | ||
| 8 | Install in the reverse order. | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 9 | Perform engine test run, check air conditioning system for proper operation and leak tightness while doing so. |
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1002-04A | M6x1 | Nm | 9 | 13 |
AIR CONDITIONING
| Number | Designation | Model 118 | Model 177 | |
|---|---|---|---|---|
| BA83.30-P-1010-01T | Bolt, refrigerant line to desiccant cartridge | Nm | 10 | 10 |
AIR CONDITIONING
| Number | Designation | Model 247 | |
|---|---|---|---|
| BA83.30-P-1010-01T | Bolt, refrigerant line to desiccant cartridge | Nm | 10 |
