Remove/Install Front Door Power Window Motor - AR72.29-P-1860MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 243, 247
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove door liner on front door | Model 243 | AR72.10-P-6575EQA |
| Model 118, 177, 247 | AR72.10-P-6575MFA | ||

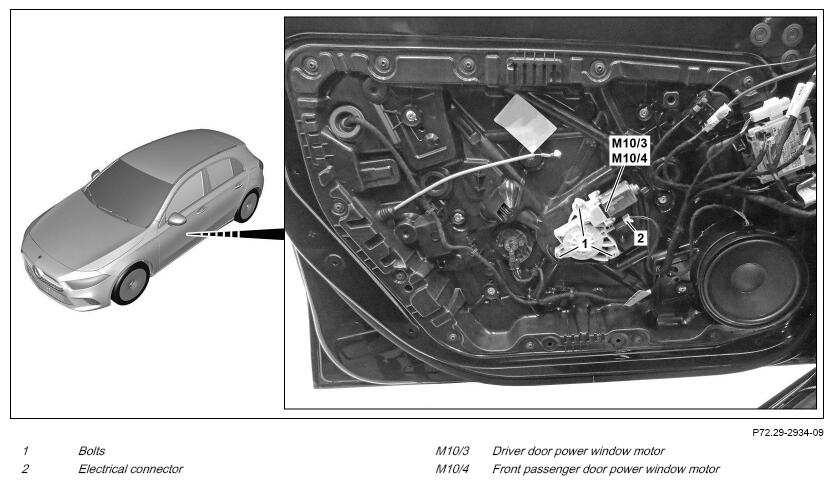

| 2 | Release electrical connector (2) from driver door power window motor (M10/3) and/or front passenger door power window motor (M10/4) and disconnect | ||
| 3 | Remove screw/bolts (1) | ||
| 4 | Remove driver door power window motor (M10/3) and/or front passenger door power window motor (M10/4) | Lock cylinder grease spray, 50 ml |
*BR00.45-Z-1012-06A |
| 5 | Install in the reverse order | ||
| Normalizing | |||
| 6 | Normalize driver door power window motor (M10/3) and/or front passenger door power window motor (M10/4) |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1012-06A | Lock cylinder grease spray, 50 ml | A 002 989 06 51 |
