Remove/Install Front Door Inner Handle/Actuation - AR72.10-P-1400MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 243, 247
MODIFICATION NOTES
| 19.07.2023 | Remove/install front door interior central locking system button group (S85/5, S85/6), added. | Operation steps 6 and 9 | |
| 19.07.2023 | Remove/install inner door handle on front door, added. | Operation steps 2 and 10 | |
| 24.07.2023 | Remove/install light-guiding element (2), added. | Operation steps 5 and 7 |

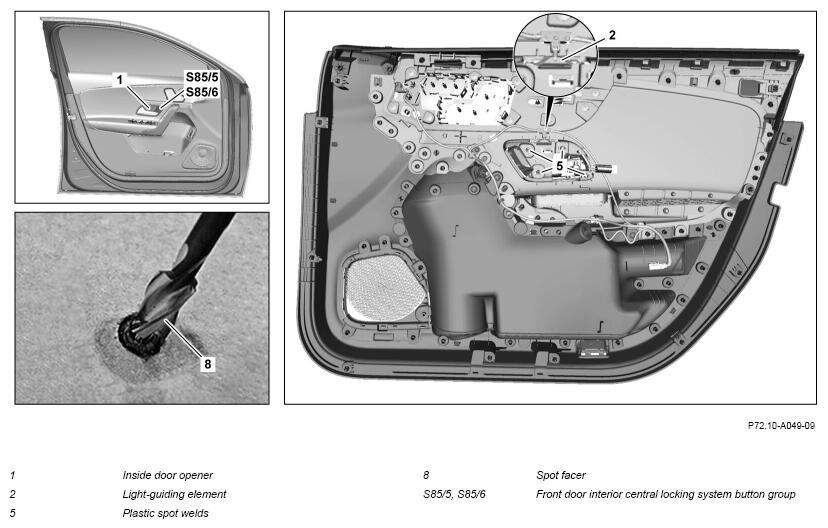

Shown on left front door
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove | |||
| 1 | Remove front door trim. | Model 243 | AR72.10-P-6575EQA |
| Model 118, 177, 247 | AR72.10-P-6575MFA | ||
| 2 | Remove inner door handle on front door. | Model 243, 247 | AR72.10-P-3600MFB |
| 3.1 | Drill out plastic spot welds (5). | If armrest has been plastics welded. Observe drilling and cutting depth. Inside door opener (1) or door trim can otherwise be damaged by drilling through. Aim for an undercut of up to 2 mm in order to ensure sufficient preload. Use spot facer (8), M4 according to DIN 373 with head diameter 8 mm and pin diameter 3.3 mm. Cordless drill/screwdriver If plastic flowed into the plastic spot welds (5) during welding, ↓ redrill plastic spot welds (5) with a drill bit Ø 3.5 mm. |
|
| 3.2 | Remove screws from plastic spot welds (5). | If armrest has been screwed on. | |
| 4 | Remove inside door opener (1). | ||
| 5 | Remove light-guiding element (2). | ||
| 6 | Remove front door interior central locking system button group (S85/5, S85/6). | When replacing the inside door opener (1). | |
| Install | |||
| 7 | Install light-guiding element (2). | ||
| 8 | Install inside door opener (1) and screw on at plastic spot welds (5). | ||
| 9 | Position front door interior central locking system button group (S85/5, S85/6). | ||
| 10 | Install inner door handle on front door. | Model 243, 247 | AR72.10-P-3600MFB |
| 11 | Install front door trim. | Model 243 | AR72.10-P-6575EQA |
| Model 118, 177, 247 | AR72.10-P-6575MFA |
