Notes On Replacing Plastic Welded Components Of Door Panel - AH72.00-P-0001-01A
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 117, 118, 176, 177, 192, 206, 214, 232, 243, 247, 254, 292, 294, 295, 296, 297
Model 166.0/8
except code Z04 (Light armoring)
except code Z05 (B5 armoring on special protection version)

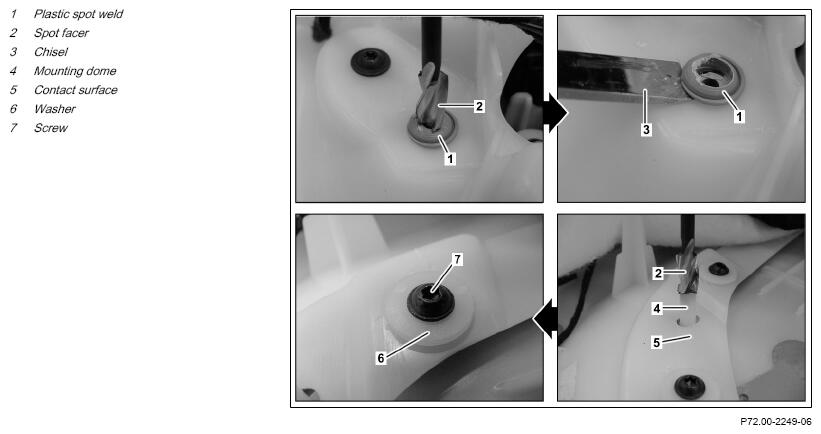

The following notes must be observed when replacing plastic welded components of the door panel:
- Use commercially available cordless drill/driver.
- Use drill bit with Ø3.5 mm.
- Use spot facer (2) M4 as per DIN 373 with head Ø8 mm and pilot Ø3.3 mm.
- Use chisel (3) with a blade width of 10 mm, according to DIN 5139.
- Perform the drilling and milling process at high rpm and with low feed rate.
- Predrill the center of the plastic spot weld (1), into which plastic flowed during the welding process, so that the spot facer (2) can be guided via its pilot.
- Cut out plastic spot weld (1) with spot facer (2).
- Remove any remaining residues of the plastic spot weld (1) with the chisel (3).
- Mill off the mounting dome (4) of the new part inserted into the door panel with the spot facer (2) so that it is flush with the level of the contact surface (5).
- Fasten new part with washer (6) and screw/bolt (7) from door panel repair kit.
