Remove/Install Retaining Lock For Crankshaft On Belt Side - AR03.30-P-0004MFG
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine 139 in model 118, 177, 247
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Install | |||
| 1 | Remove bottom engine compartment lining. | AR61.20-P-1105MFR | |
| 2 | Remove right front fender liner. | AR88.10-P-1301MFA | |
| 3 | Position engine at top dead center (ignition TDC) on cylinder 1. | AR01.10-P-1000-01MFG | |
| Fig 2 | |||
| 4 | Remove vibration damper. | Attachment of blocking device (1) at specified position will otherwise not be possible. |
AR03.30-P-1600MFG |

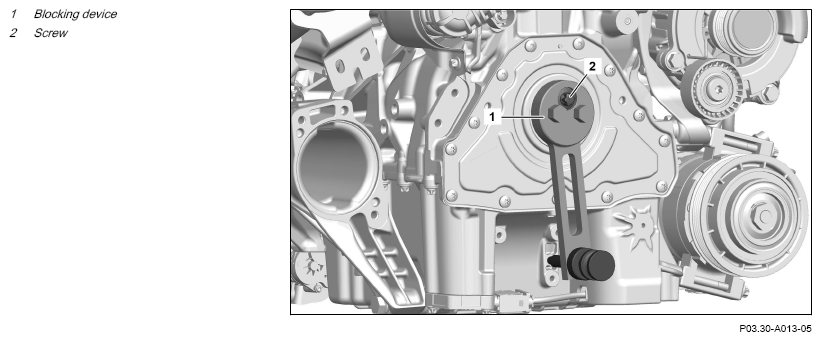

| 5 | Insert blocking device (1) and tighten screw (2). | Fig 1 | |
| Remove | |||
| 6 | Remove screw (2) and remove blocking device (1). | Fig 1 | |
| 7 | Install vibration damper. | AR03.30-P-1600MFG | |
| 8 | Install right front fender liner. | AR88.10-P-1301MFA | |
| 9 | Install lower engine compartment lining. | AR61.20-P-1105MFR |
