Remove/Install Guide Bearing - AR03.20-P-4200MFG
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine 139 in model 118, 177, 247
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove | |||
| 1 | Remove flywheel/drive plate. | AR03.30-P-8001MFG | |

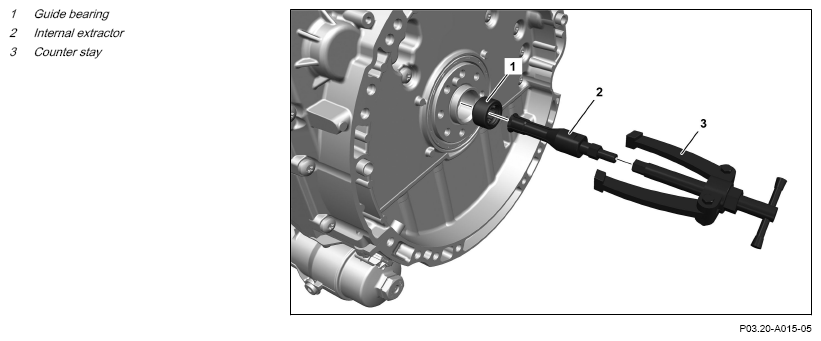

| 2 | Remove guide bearing (1) with internal extractor (2) and counter stay (3) from the crankshaft. | Fig 3 | |
| Fig 1 | |||
| 3 | Clean bearing seat. | Assembly cleaner | *BR00.45-Z-1028-04A |
| 4 | Check bearing seat for damage. | If there are problems, ↓ Install new crankshaft. |
AR03.20-P-4351MFG |
| Install | |||

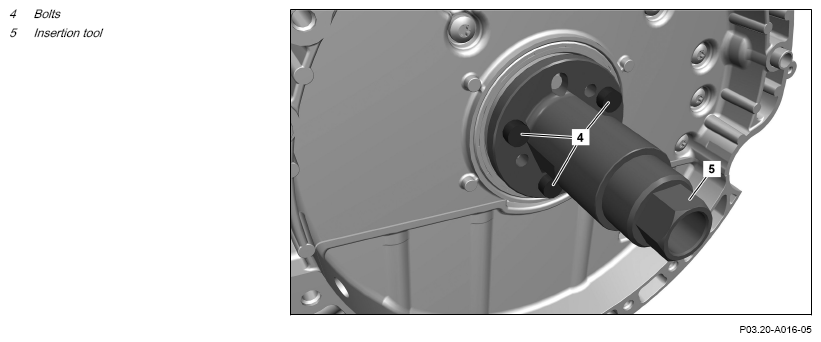

| 5 | Insert guide bearing (1) into the insertion tool (5). | Fig 2 | |
| 6 | Attach insertion tool (5) with screws (4) to the crankshaft. | Fig 2 | |
| 7 | Insert guide bearing (1) with insertion tool (5) into the crankshaft. | Otherwise, the guide bearing (1) will be damaged. |
|
| 8 | Install flywheel/drive plate. | AR03.30-P-8001MFG |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
