Install Front Radial Shaft Sealing Ring - AR03.20-P-3002-01MFC
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine 260 in model 118, 177, 247
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
- Deburr edge of mounting hole for radial shaft sealing ring (5) on timing case cover and clean mounting hole with assembly cleaner.
Circumference and sealing lip of radial shaft sealing ring (5) as well as mating surface on vibration damper/belt pulley (8) must be free of oil and grease.

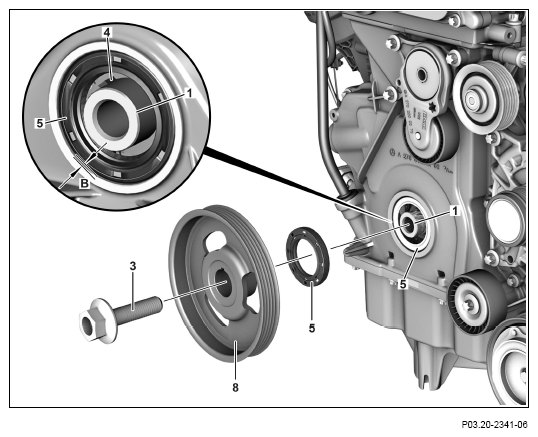

- Place radial shaft sealing ring (5) on timing case cover and align at right angles to the timing case cover.
- Indent radial shaft sealing ring (5) with
drift flush in timing case cover.
- Check installation location of the radial shaft sealing ring (5) relative to the crankshaft journal (1).
The radial shaft sealing ring (5) must stand at right angles to the crankshaft journal (1). Leaks can occur otherwise.
