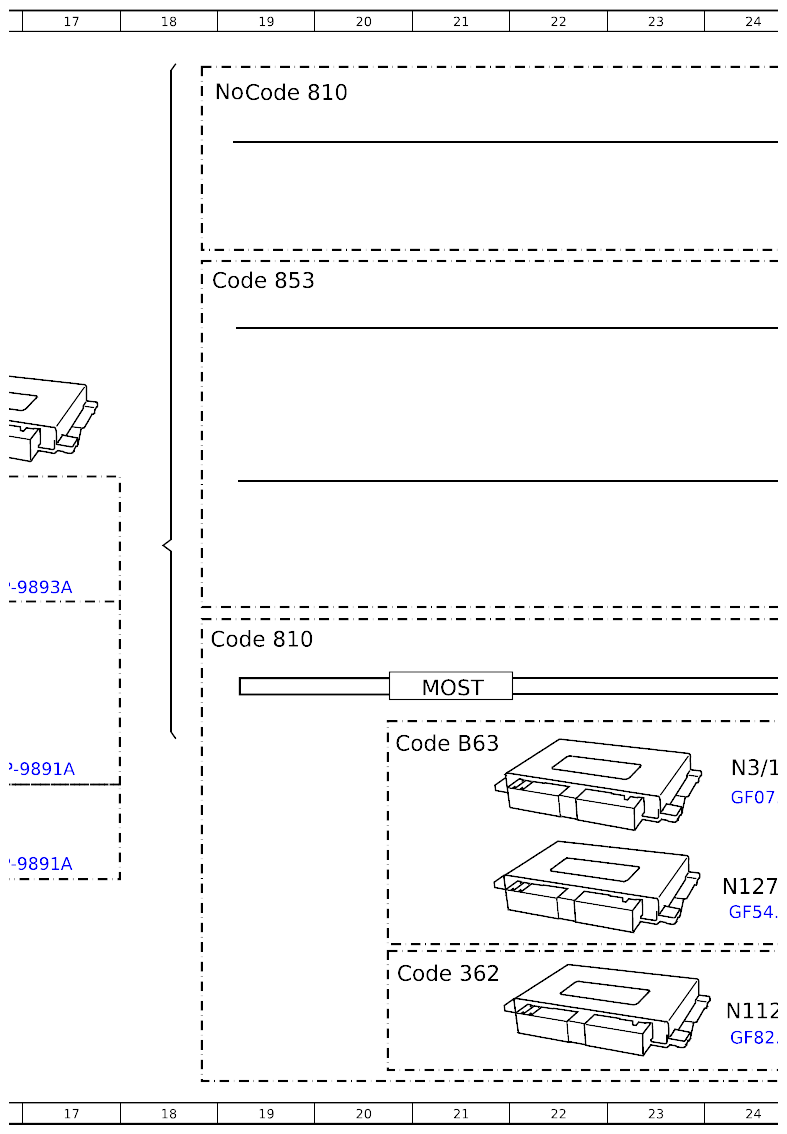

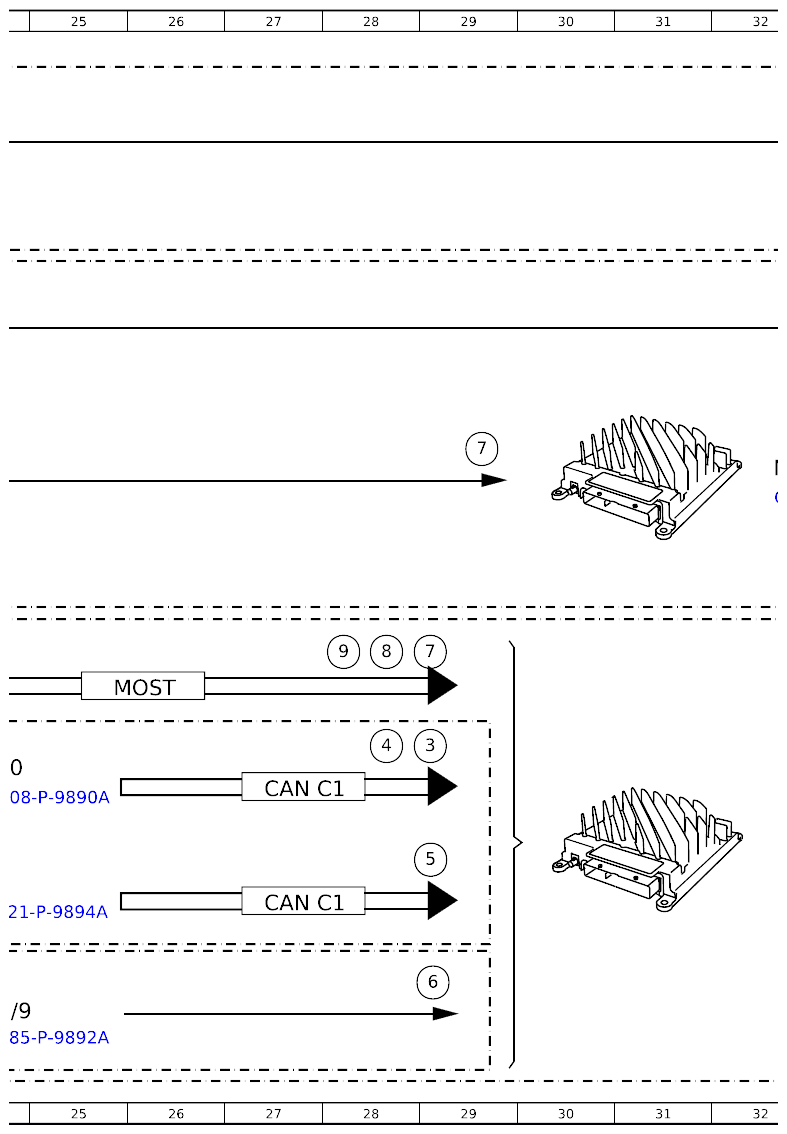

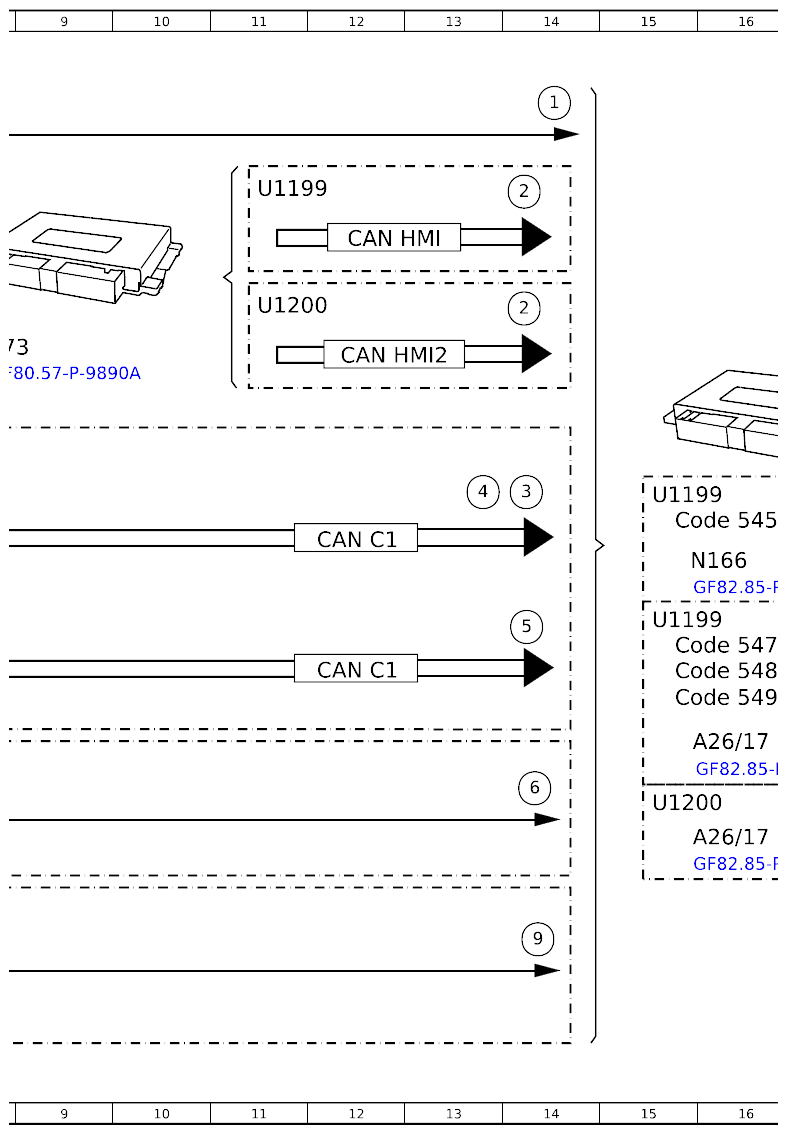

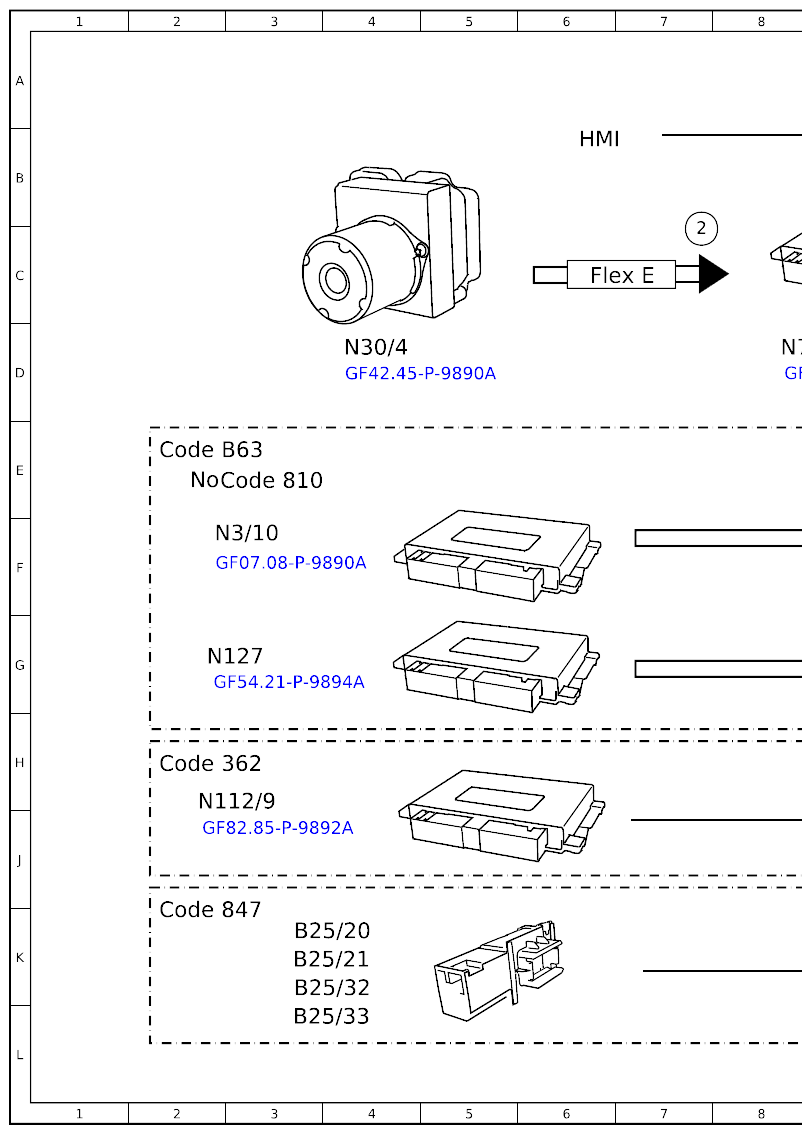

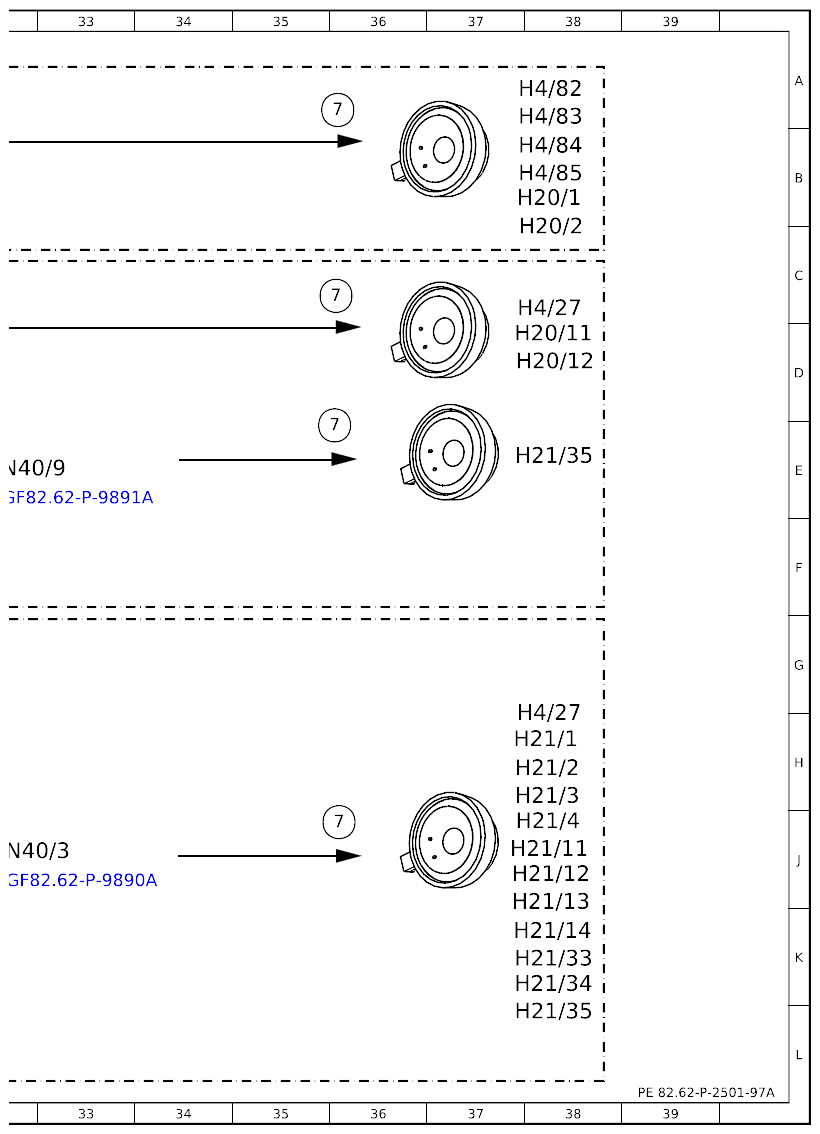

Function Schematic For Actuating Speakers - PE82.62-P-2501-97A
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177 with engine 260, 282, 608, 654
Model 243, 247
| Code: | Designation: | Position: |
|---|---|---|
| A26/17 | Head unit | 16H |
| A26/17 | Head unit | 16J |
| B25/20 | Driver hands-free system microphone | 3K |
| B25/21 | Front passenger hands-free system microphone | 3K |
| B25/32 | Left rear hands-free system microphone | 3K |
| B25/33 | Right rear hands-free system microphone | 3L |
| Code 362 | HERMES LTE | 2H |
| Code 362 | HERMES LTE | 20K |
| Code 545 | Connect 5 (NTG6) | 15F |
| Code 547 | Connect 20 Entry (NTG6) | 15G |
| Code 548 | Connect 20 MID (NTG6) | 15G |
| Code 549 | Connect 20 HIGH (NTG6) | 15G |
| Code 810 | Sound system | 2E |
| Code 810 | Sound system | 19A |
| Code 810 | Sound system | 18G |
| Code 847 | 3rd seat row | 2K |
| Code 853 | "Midline" sound system | 18C |
| Code B63 | AMG eSound | 2E |
| Code B63 | AMG eSound | 20H |
| H4/27 | Center cockpit speaker (centerfill) | 38H |
| H4/27 | Center cockpit speaker (centerfill) | 38C |
| H4/82 | Left door speaker | 38A |
| H4/83 | Right door speaker | 38A |
| H4/84 | Left rear door woofer/midrange speaker | 38B |
| H4/85 | Right rear door woofer/midrange speaker | 38B |
| H20/1 | Left A-pillar tweeter | 38B |
| H20/2 | Right A-pillar tweeter | 38C |
| H20/11 | Left rear door tweeter | 38D |
| H20/12 | Right rear door tweeter | 38D |
| H21/1 | Left A-pillar surround sound system tweeter | 38H |
| H21/2 | Right A-pillar surround sound system tweeter | 38H |
| H21/3 | Left front door midrange speaker | 38H |
| H21/4 | Right front door midrange speaker | 38J |
| H21/11 | Left rear door surround sound system tweeter | 38J |
| H21/12 | Right rear tweeter (Premium) | 38J |
| H21/13 | Left rear mid-range speaker (Premium) | 38K |
| H21/14 | Right rear door midrange speaker | 38K |
| H21/33 | Left C-pillar surround sound system midrange speaker | 38K |
| H21/34 | Right C-pillar surround sound system midrange speaker | 38K |
| H21/35 | Rear sound system woofer | 38E |
| H21/35 | Rear sound system woofer | 38L |
| N3/10 | Engine management control unit | 3F |
| N3/10 | Engine management control unit | 24H |
| N30/4 | Electronic Stability Program (ESP®) control unit | 4D |
| N40/3 | Amplifier for sound system | 32J |
| N40/9 | Subwoofer amplifier | 32E |
| N73 | EIS [EZS] control unit | 8D |
| N112/9 | HERMES control unit | 2H |
| N112/9 | HERMES control unit | 24L |
| N127 | Drivetrain control unit | 2G |
| N127 | Drivetrain control unit | 24J |
| N166 | Head unit/instrument cluster control unit | 16F |
| U1199 | Valid for vehicles up to facelift | 15G |
| U1199 | Valid for vehicles up to facelift | 15E |
| U1199 | Valid for vehicles up to facelift | 11B |
| U1200 | Valid for vehicles as of facelift | 15H |
| U1200 | Valid for vehicles as of facelift | 11C |
| CAN C1 | CAN 1 for drive | 12F |
| CAN C1 | CAN 1 for drive | 12G |
| CAN C1 | CAN 1 for drive | 27K |
| CAN C1 | CAN 1 for drive | 27H |
| CAN HMI | User interface CAN | 12C |
| CAN HMI2 | CAN 2 for user interface | 12D |
| Flex E | Chassis FlexRay | 6C |
| MOST | Media Oriented System Transport | 26G |
| MOST | Media Oriented System Transport | 21G |
| 1 | Operation, signal | 14A |
| 2 | Vehicle speed, signal | 7C |
| 2 | Vehicle speed, signal | 14C |
| 2 | Vehicle speed, signal | 14B |
| 3 | Engine running, signal | 14E |
| 3 | Engine running, signal | 29H |
| 4 | Engine speed, signal | 13E |
| 4 | Engine speed, signal | 28H |
| 5 | Engine torque, signal | 14G |
| 5 | Engine torque, signal | 29J |
| 6 | Mute function, signal | 14H |
| 6 | Mute function, signal | 29K |
| 7 | Audio, signal | 36C |
| 7 | Audio, signal | 36J |
| 7 | Audio, signal | 36A |
| 7 | Audio, signal | 36E |
| 7 | Audio, signal | 29E |
| 7 | Audio, signal | 29G |
| 8 | Boosting of signals for communication in the vehicle, request | 28G |
| 9 | Microphone, signal | 14K |
| 9 | Microphone, signal | 28G |
