Remove/Install Wiring Harness For Trailer Socket And Swivel System Electrical Components - AR31.19-P-1501MFD
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177.0/1, 243.7, 247 with code 550 (Trailer coupling)
Shown on model 118 with code 550 (Trailer hitch)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||

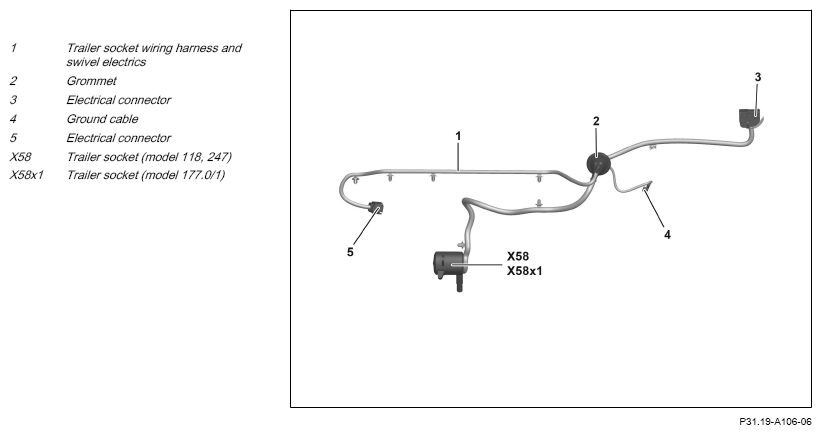

| 1 | Extend ball neck. | ||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3 | Release and disconnect electrical plug (3) and expose electric line. | AR31.19-P-1300MFA | |
| 4 | Remove rear bumper. | Model 243.7 with code 550 (Trailer coupling) | AR88.20-P-2200EQA |
| Model 118, 177.0/1, 247 with code 550 (Trailer coupling) | AR88.20-P-2200MFA | ||
| 5 | Remove trim for spare wheel well. | Model 177.0/1, 243.7, 247.0/7 with code 550 (Trailer coupling) | |
| 6 | Remove and expose ground line (4). | *BA00.19-P-1010-02E | |
| 7 | Remove grommet (2) and route trailer socket wiring harness and swivel electrics (1) outwards. | ||
| 8 | Release and disconnect electrical plug (5). | ||
| 9 | Unscrew bolts and remove trailer socket (X58, X58x1). | ||
| 10 | Expose wiring harness for trailer socket and swivel electrics (1) and remove. | ||
| 11 | Install in the reverse order. | ||
| Check | |||
| 12 | Perform function check of fully-electric trailer hitch. | AR31.19-P-1451MFA | |
| 13 | Check function of lighting signals on trailer socket (X58, X58x1). |
GROUND POINTS
| Number | Designation | Model 118 | Model 177 | |||
|---|---|---|---|---|---|---|
| BA00.19-P-1010-02E | Trailer hitch ground point | W7/9 | M6 | Nm | 10 | 10 |
GROUND POINTS
| Number | Designation | Model 243 | Model 247 | |||
|---|---|---|---|---|---|---|
| BA00.19-P-1010-02E | Trailer hitch ground point | W7/9 | M6 | Nm | 10 | 10 |
