Routing Diagram For Poly-V Belt - AR13.22-P-3902-02NKB

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Engine 260 in model 118, 177, 247

Engine 270 in model 242

Engine 270, 651 in model 117, 156, 176, 246

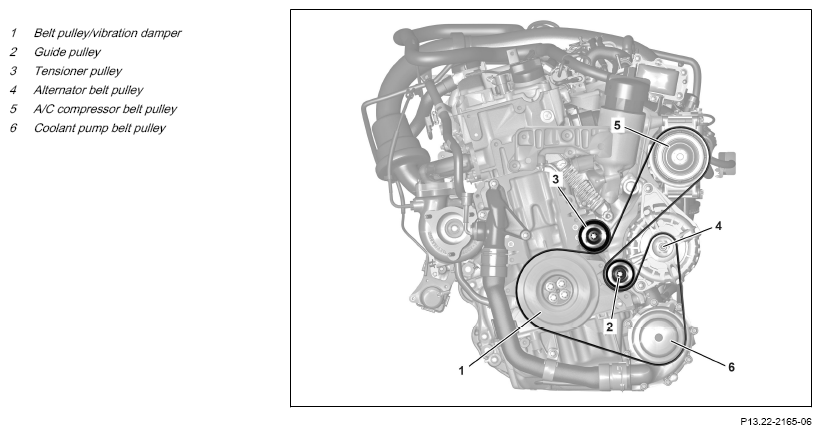

Engine 651.9

Courtesy of MERCEDES-BENZ USA

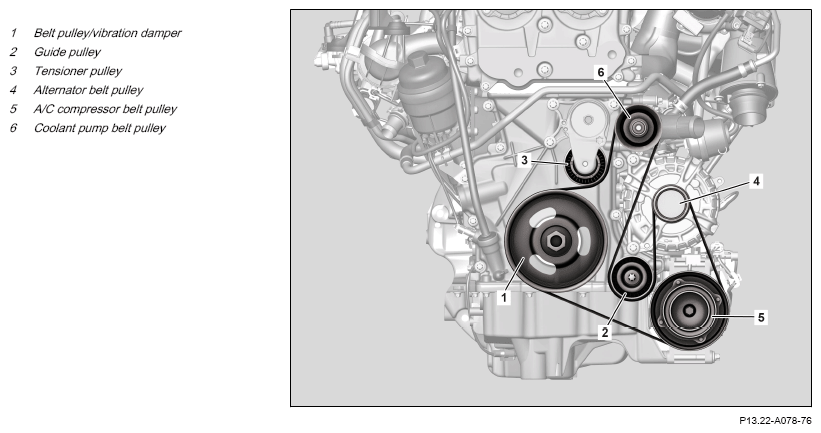

Engine 270.9 and engine 260

Fig 1: Routing Diagram For Poly-V Belt - Engine 260 In Model 118

Courtesy of MERCEDES-BENZ USA

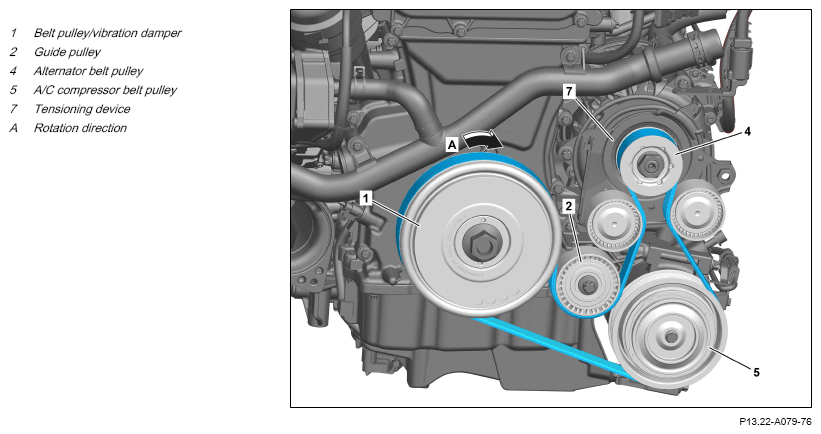

Engine 260 with code B01 (48V technology)

Fig 2: Routing Diagram For Poly-V Belt - Engine 260 In Model 118 With Code B01

Courtesy of MERCEDES-BENZ USA
