Check Visible Area Of Poly-V Belt For Wear - AP13.22-P-1352EW
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118 with engine 260, 282, 608, 654
Model 167 with engine 264, 654, 656
Model 177 with engine 260, 282, 608, 654
Model 205 (except 205.047/053/054/147/247/253) with engine 264, 274, 276, 626, 651, 654
Model 213 (except 213.050/053/054/153/155/253) with engine 264, 274, 276, 642, 654, 656
Model 217 with engine 157, 276, 278, 279
Model 222 with engine 157, 264, 276, 277, 278, 279, 642, 651, 656
Model 231
Model 238 with engine 264, 274, 276, 642, 654, 656
Model 247 with engine 260, 282, 608, 654
Model 253 (except 253.353/354/953/954) with engine 274, 276, 642, 651
Model 257 with engine 264, 654, 656
Model 463 with engine 264, 656
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury from engine start by remote start function | Prior to starting work, open engine hood, do not reach into rotation range or hazard area of freely rotating parts, wear closed and snug-fitting work clothes | AS00.00-Z-0024-01A | |
| Check | |||

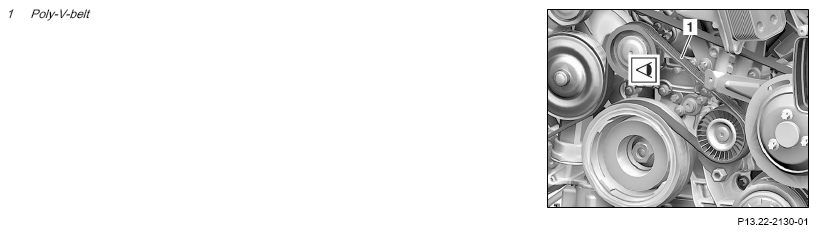

| 1 | Check poly-V-belt (1) from above in visible areas for wear and damage, and compare with damage profiles. | Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 If wear or damage is detected, ↓ Replace poly-V-belt (1). |
AP13.22-P-1351-01A |
| Remove | |||
| 2 | Remove front engine compartment lining. | ||
| Model 118, 177, 247 with engine 260 except code M016 (Uprated engine) | AR61.20-P-1105MFA | ||
| Model 118, 177, 247 with engine 282 Model 118, 177, 247 with engine 260 with code M016 (Uprated engine) |
AR61.20-P-1105MFR | ||
| Model 118 with engine 608, 654 Model 177 with engine 608, 654 Model 247 with engine 608, 654 |
AR61.20-P-1105MFE | ||
| Model 167 (except 167.117/317) with engine 264, 654, 656 | AR61.20-P-1105ME | ||
| Model 205 (except 205.047/053/054/147/247/253) with engine 264, 274, 276, 626, 651, 654 Model 253 (except 253.353/354/953/954) with engine 274, 276, 642, 651 | AR61.20-P-1105LW | ||
| Model 213 (except 213.011/050/053/054/153/155/211/216/253) with engine 264, 274, 276, 642, 654, 656 Model 238 with engine 264, 274, 276, 642, 654, 656 | AR61.20-P-1105LWE | ||
| Model 217 with engine 157, 276, 278, 279 Model 222 with engine 157, 264, 276, 277, 278, 279, 642, 651, 656 | AR61.20-P-1105LF | ||
| Model 231 | AR61.0-P-1105RK | ||
| Model 257 with engine 264, 654, 656 | AR61.20-P-1105FR | ||
| Model 463 with engine 264, 656 as of model year 2019 | AR61.20-P-1105XG | ||
| Check | |||
| 3 | Check poly-V-belt (1) in areas visible when vehicle is raised for wear and damage, and compare with damage profiles. | Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 If wear or damage is detected, ↓ Replace poly-V-belt (1). |
AP13.22-P-1351-01A |
| Install | |||
| 4 | Install front engine compartment lining. | ||
| Model 118, 177, 247 with engine 260 except code M016 (Uprated engine) Model 118, 177, 247 with engine 282 | AR61.20-P-1105MFA | ||
| Model 118, 177, 247 with engine 260 with code M016 (Uprated engine) | AR61.20-P-1105MFR | ||
| Model 118 with engine 608, 654 Model 177 with engine 608, 654 | AR61.20-P-1105MFE | ||
| Model 247 with engine 608, 654 Model 167 (except 167.117/317) with engine 264, 654, 656 |
AR61.20-P-1105ME | ||
| Model 205 (except 205.013/047/053/054/147/213/247/253) with engine 264, 274, 276, 626, 651, 654 Model 253 (except 253.353/354/953/954) with engine 274, 276, 642, 651 | AR61.20-P-1105LW | ||
| Model 213 (except 213.011/016/050/053/054/153/155/211/216/253) with engine 264, 274, 276, 642, 654, 656 Model 238 with engine 264, 274, 276, 642, 654, 656 | AR61.20-P-1105LWE | ||
| Model 217 with engine 157, 276, 278, 279 Model 222 with engine 157, 264, 276, 277, 278, 279, 642, 651, 656 | AR61.20-P-1105LF | ||
| Model 231 | AR61.20-P-1105RK | ||
| Model 257 with engine 264, 654, 656 | AR61.20-P-1105FR | ||
| Model 463 with engine 264, 656 as of model year 2019 | AR61.20-P-1105XG |
