Remove/Install Load Compartment Floor Support - AR68.80-P-0025MFH
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 247
with code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN))
Model 118, 177, 247
with code ME10 (Hybrid vehicle (plug-in, PHEV))
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | AH00.00-Z-0300-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on battery | AH54.10-P-0001-01A | |
| Notice | Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove voltage of high-voltage on-board electrical system. | Model 118, 177, 247 with engine 282 with code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN)) Model 118, 177, 247 with engine 282 with code ME10 (Hybrid vehicle (plug-in, PHEV)) |
AR47.70-P-1000MFH |
| 2 | Remove rear-end center-section trim. | Model 177.0 with engine 282 with code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN)) Model 177.0 with code ME10 (Hybrid vehicle (plug-in, PHEV)) |
AR68.30-P-4786MFA |
| Model 118.3, 177.1, 247 with engine 282 with code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN)) Model 118.3, 177.1, 247 with engine 282 with code ME10 (Hybrid vehicle (plug-in, PHEV)) |
AR68.30-P-4786MFV | ||

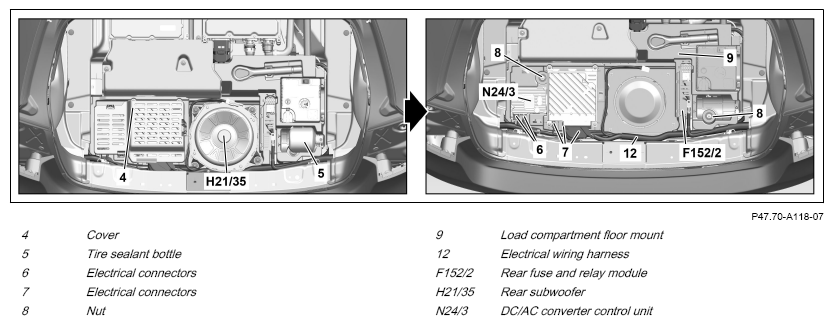

| 3 | Remove rear subwoofer (H21/35). | AR82.62-P-7841MFD | |
| 4 | Remove cover (4). | ||
| 5 | Remove tire sealant bottle (5). | ||
| 6 | Release and disconnect electrical connectors (6) from DC/AC converter control unit (N24/3). | ||
| 7 | Release and disconnect electrical connectors (7). | ||
| 8 | Remove fuse and relay module (F152/2) from the load compartment floor mount (9) and place to one side. | ||
| 9 | Remove electrical wiring harness (12) from the load compartment floor mount (9) and place to one side. | ||
| 10 | Loosen nuts (8) and remove load compartment floor mount (9) with DC/AC converter control unit (N24/3) and tire inflation compressor. | ||
| 11 | Install in the reverse order. | ||
| 12 | Put the high-voltage on-board electrical system into operation. | Model 118, 177, 247 with engine 282 with code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN)) Model 118, 177, 247 with engine 282 with code ME10 (Hybrid vehicle (plug-in, PHEV)) |
AR47.70-P-1000MFH |
