Retrofit Luggage Net For Passenger-Side Footwell - AZ68.50-P-0007MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 247
| Work preparation | |||
| 1 | Produce drilling template for luggage net bracket (1). | AZ68.50-P-0007-01MFA | |
| Install | |||
| 2 | Retrofit luggage net (1) with brackets. | Carefully drill bores for luggage net brackets (1). Body can be damaged. |
AZ68.50-P-0007-02MFA |

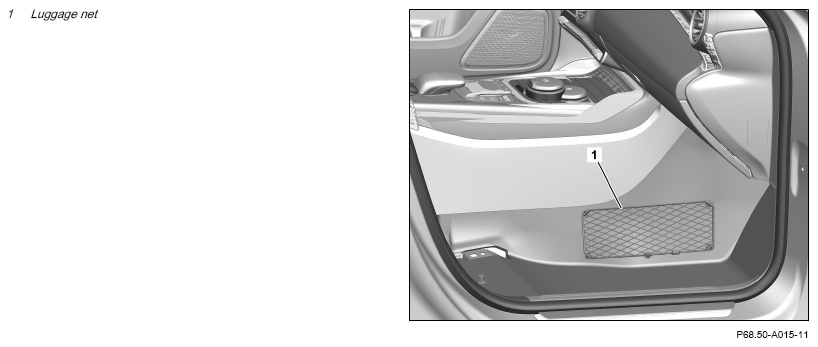

| Fig 1 | |||
| Document retrofitted equipment using vehicle documentation (VeDoc) | |||
| 3 | Attach note "Front-passenger side footwell luggage net retrofitted as per AZ68.50-P-0007MFA" under field organization texts to DG 68. |
PARTS ORDERING NOTE
| Part no. | Designation | Quantity |
|---|---|---|
| KG 98 (see EPC) | Parts kit front-passenger side footwell luggage net | 1 |
