Remove/Install Wi-Fi Antenna In Left Of Instrument Panel - AR82.85-P-0012MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177
Shown on model 177.0
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1.1 | Remove HERMES control unit (N112/9). | Model 118, 177 with code 362 (HERMES LTE) |
AR82.95-P-0019MFA |
| 1.2 | Remove light switch module. | Model 118, 177 except code 362 (HERMES LTE) |
AR54.25-P-3270MFA |

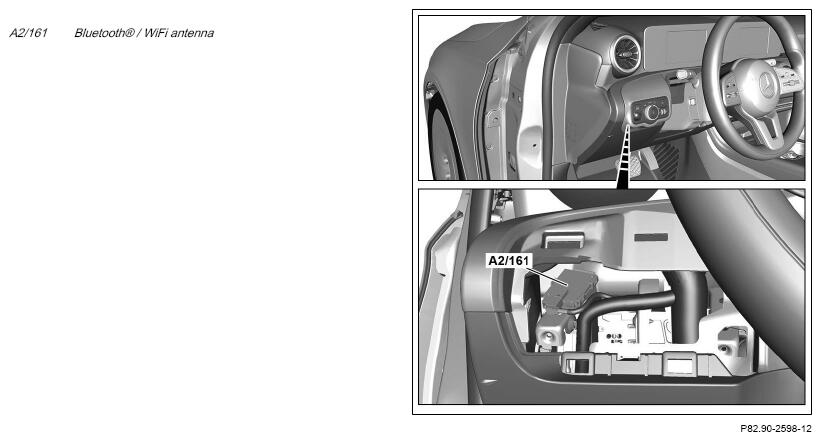

| 2 | Unclip Bluetooth®/Wi-Fi antenna (A2/161) carefully from holder. | Do not crush or kink or subject lines to tension. This will result in damage to the lines which may impair their functional capability. |
Fig 1 |
| 3 | Release and disconnect electrical connector from Bluetooth®/Wi-Fi antenna (A2/161). | ||
| 4 | Install in the reverse order. |
