Remove/Install Telephone Antenna - AR82.62-P-0011MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177
with code 274 (Telephone antenna)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Remove door trim from corresponding front door (5) | AR72.10-P-6575MFA | |
| 3 | Unclip, release and disconnect electrical connector (2) | ||
| 4 | Release grommet (4) from front door (5) | ||
| 5 | Route electrical subharness (3) through grommet (4) | ||
| 6 | Fasten pull-through device to electrical subharness (3) | ||
| 7 | Remove mirror glass | AR88.70-P-9020MFA | |
| 8 | Remove cover from outside mirror | AR88.70-P-9040MFA | |
| 9 | Remove screw/bolts (1) | ||

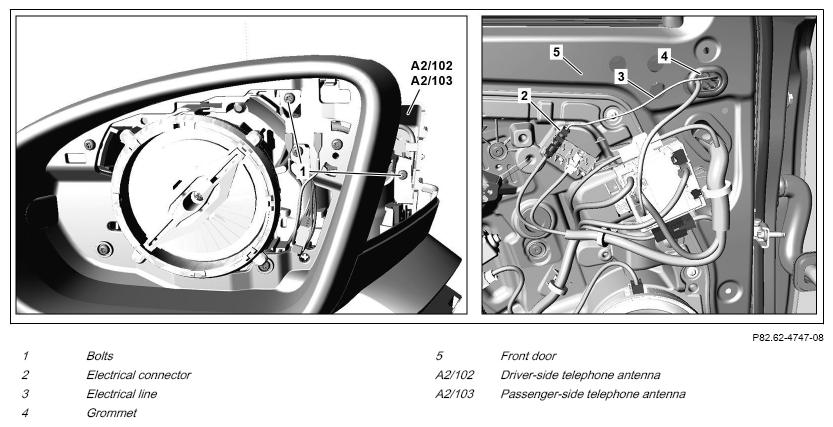

| 10 | Unclip driver's side telephone antenna (A2/102) or front passenger side telephone antenna (A2/103) from outside mirror | Fig 1 | |
| 11 | Route electrical subharness (3) carefully out through front door (5) and outside mirror and release pull-through device from electrical subharness (3) | ||

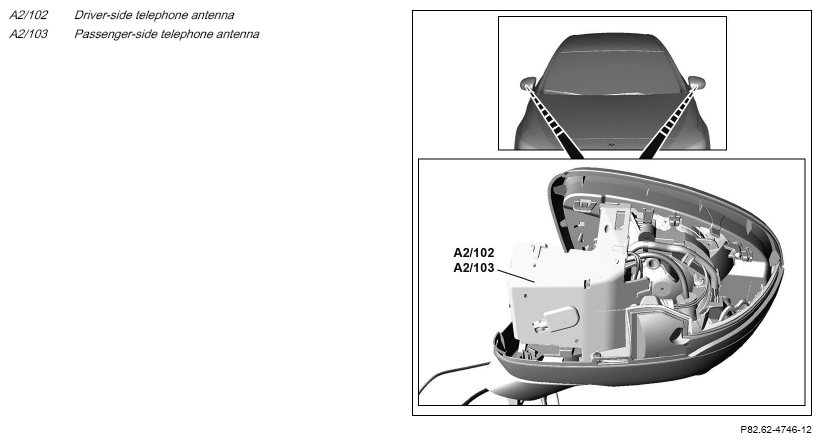

| 12 | Remove driver's side telephone antenna (A2/102) and front passenger side telephone antenna (A2/103) | ||
| 13 | Install in the reverse order |
