Check Setting Of High Beam - AP82.10-P-8260-02Y

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 118

Shown on model 177 with ECE version of headlamp

Courtesy of MERCEDES-BENZ USA

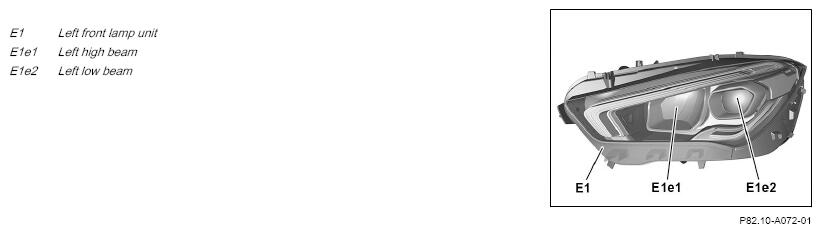

Halogen headlamp, shown on model 118

Courtesy of MERCEDES-BENZ USA

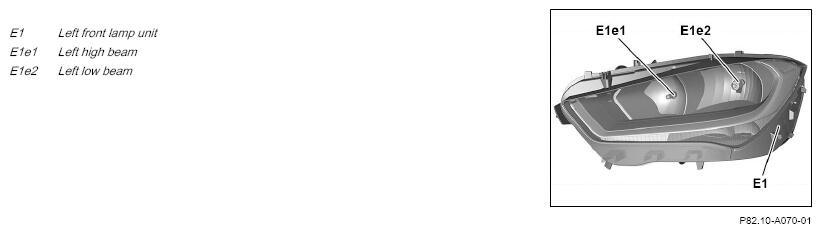

Static LED headlamp, shown on model 118

Courtesy of MERCEDES-BENZ USA

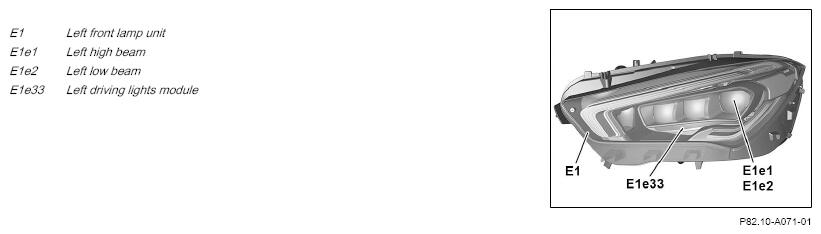

Dynamic LED headlamp, shown on model 118

Courtesy of MERCEDES-BENZ USA

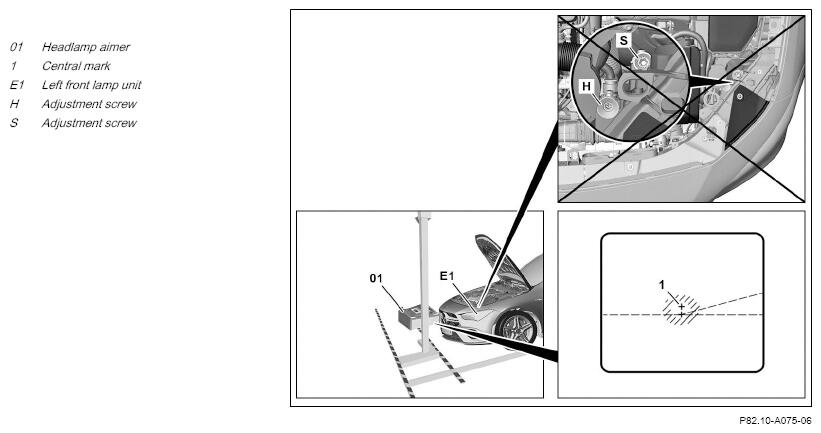

Align headlamp adjuster (01) parallel to the vehicle at the height of the left high beam (E1e1) in the left front lamp unit (E1).
Make sure that the headlamp adjuster (01) is aligned in front of the left high beam (E1e1) and not in front of the left low beam (E1e2) or the left driving light module (E1e33).

Otherwise it is possible that the high beam will not be correctly adjusted.

Proceed with the right along the same lines as the left.
Check setting of high beam.
Do not perform any correction to headlamp adjustment screws (H, S).

Otherwise, the previously adjusted low beams will be mis-adjusted.

The center of the light beam must be positioned on the central mark (1) in the headlamp adjuster (01).

If high beam setting is not correct,

↓

rectify the problems.

After obtaining special order.
