Remove/Install Partial Load Crankcase Ventilation System Valve - AR01.20-P-0040MFD
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine 260 in model 118, 177, 247 with code 460 (Canada version) with code 494 (US version) with code 835 (South Korea version) with code 945 (China Stage 6 exhaust treatment)
Shown on model 177 with Engine 260 without code M016 (performance-enhanced Engine)

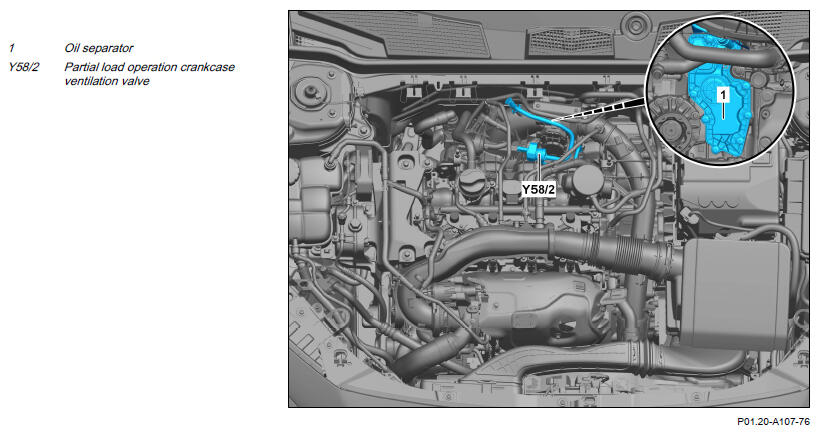

Fig 1: Partial Load Crankcase Ventilation System Valve Components Location - Model 118 With Engine 260 With Code 460, 494, 835, 945
| Picture no., etc. | Work notes | ||
|---|---|---|---|
| 1 | The partial-load operation crankcase ventilation valve (Y58/2) and the oil separator (1) form a single unit. The removal/installation is described in the document "Removal/Installation of Oil Separator". | AR01.20-P-9750MFD |
