Remove/Install Drive Unit For Oil And Coolant Pump - AR01.40-P-0006MFG
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine 139 in model 118, 177, 247
| Risk of injury to skin and eyes due to handling of Engine oil. Risk of poisoning caused by swallowing Engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill Engine oil into beverage containers. | AS18.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove drive gear of oil pump. | AR18.10-P-6019MFG | |

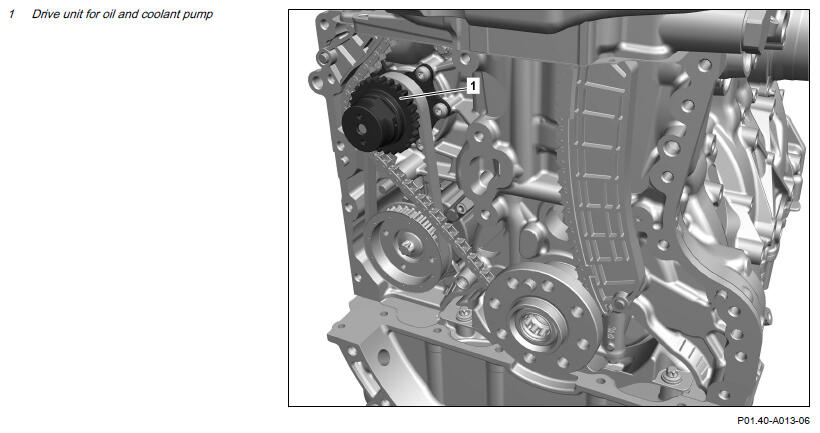

| 2 | Remove screws of drive unit for oil and coolant pump (1) in reverse order to tightening procedure. | Loosen/tighten oil and coolant pump drive unit screws/bolts |
AR01.40-P-0001-01MFG |
| *BA20.10-P-1013-01AC | |||
| 3 | Remove drive unit for oil and coolant pump (1). | ||
| 4 | Install in the reverse order. |
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | Engine 139 | ||
|---|---|---|---|---|
| BA20.10-P-1013-01AC | Bolt, secondary coolant pump drive unit to crankcase | Stage 1 | Nm | 3 |
| Stage 2 | Nm | 6 | ||
| Stage 3 | ∠° | 45 | ||
