Check Compression Pressure - AR01.00-P-1201MFD
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine 260, 282 in model 118, 177, 247
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of burn injuries, suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. | AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when Engine running. Risk of injury (bruises and burns) resulting from working on the Engine while it is being started or when it is running. | Secure vehicle of prevent it from starting off by itself. Wear closed and sung-fitting work clothes. Do not touch hot or rotating parts | AS00.00-Z-0005-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Bring Engine to operating temperature (approx. 80°C). | ||
| 2 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 3 | Remove spark plugs. | ||
| Engine 282 in model 118, 177, 247 | AP15.10-P-1580I | ||
| Engine 260 in model 118, 177, 247 | AP15.10-P-1580F | ||
| 4 | Connect compression pressure recorder (1). | AR01.10-P-0010-01MFD | |
| Fig 2 | |||
| 5 | Turn Engine for approx. 5 s. | Fig 2 | |

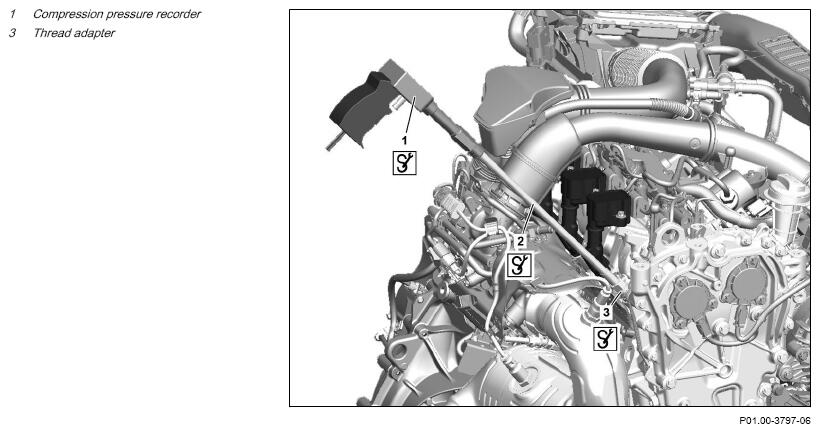

| 6 | Screw thread adapter into spark plug bore of cylinder to be checked. | Fig 1 | |
| 7 | Connect compression pressure recorder (1) to thread adapter (3). | Fig 1 | |
| Fig 2 | |||
| Check | |||
| 8 | Turn Engine until a pressure increase is no longer observed at compression pressure recorder (1). | Fig 1 | |
| Fig 2 | |||
| 9 | Perform check process in cylinder order on remaining cylinders in same manner. | ||
| 10 | Compare measured pressure values with specified test values. | Engine 260 Installation tolerance or new value of compression pressure |
*BE01.00-P-1001-01B |
| Engine 260 Compression pressure, permissible difference between the cylinders |
*BE01.00-P-1002-01B | ||
| Engine 260 Wear limit or limit value of compression pressure |
*BE01.00-P-1003-01B | ||
| Engine 282 Installation tolerance or new value of compression pressure |
*BE01.00-P-1001-04A | ||
| Engine 282 Compression pressure, permissible difference between the cylinders |
*BE01.00-P-1002-04A | ||
| Engine 282 Wear limit or limit value of compression pressure |
*BE01.00-P-1003-04A | ||
| Cylinder leakage: permissible loss total indication | *BE01.00-P-1001-02Z | ||
| If minimum pressure is undershot or permissible pressure difference between individual cylinders is exceeded ↓ Check cylinder leakage. |
AR01.00-P-1300MFD | ||
| 11 | Install in the reverse order. |
COMPRESSION PRESSURE
| Number | Designation | Engine 260 | |
|---|---|---|---|
| BE01.00-P-1001-01B | Installation tolerance or new value of compression pressure | bar | 13...17 |
CYLINDER LEAKAGE
| Number | Designation | Engine all (4xWD, CAR, smart) | |
|---|---|---|---|
| BE01.00-P-1001-02Z | Cylinder leakage: permissible loss total indication | % | ≤ 25 |
COMPRESSION PRESSURE
| Number | Designation | Engine 282 | |
|---|---|---|---|
| BE01.00-P-1001-04A | Installation tolerance or new value of compression pressure | bar | 1...17 |
COMPRESSION PRESSURE
| Number | Designation | Engine 260 | |
|---|---|---|---|
| BE01.00-P-1002-01B | Compression pressure, permissible difference between the cylinders | bar | ≤1, 5 |
COMPRESSION PRESSURE
| Number | Designation | Engine 282 | |
|---|---|---|---|
| BE01.00-P-1002-04A | Compression pressure, permissible difference between the cylinders | bar | ≤1, 5 |
COMPRESSION PRESSURE
| Number | Designation | Engine 260 | |
|---|---|---|---|
| BE01.00-P-1003-01B | Wear limit or limit value of compression pressure | bar | 11 |
COMPRESSION PRESSURE
| Number | Designation | Engine 282 | |
|---|---|---|---|
| BE01.00-P-1003-04A | Wear limit or limit value of compression pressure | bar | 10 |
