Notes On Sealant Path For Oil Engine Pan - AH01.45-P-0001-01MMA
Engine 133, 152.9, 157, 256, 260, 264, 270, 274, 276, 278, 282
Engine 176 in model 217, 222, 223
Engine 176, 177 in model 167
Engine 177 in model 205, 213
Engine 177 in model 217, 222, 223
Engine 177 in model 232
Engine 177 in model 253 with code M005 (Vehicles with 4MATIC/all-wheel drive)
Engine 177 in model 290
Engine 178 in model 190
The sealing surfaces must be cleaned.
The sealant bead must not be spread.
Use only the sealant indicated in the Repair Materials.

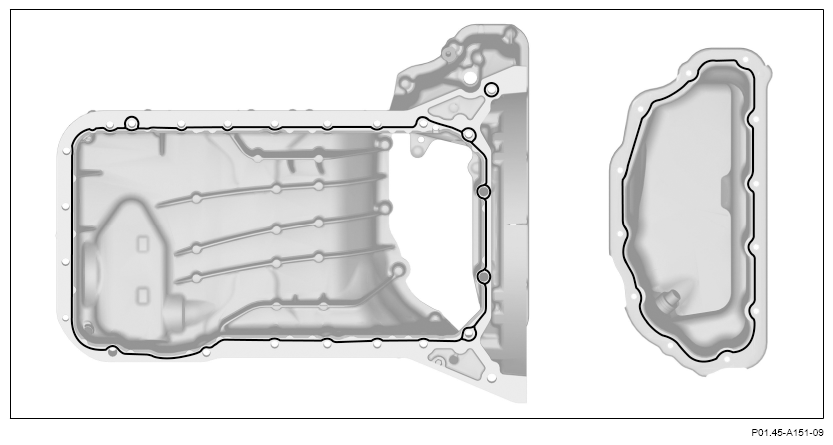

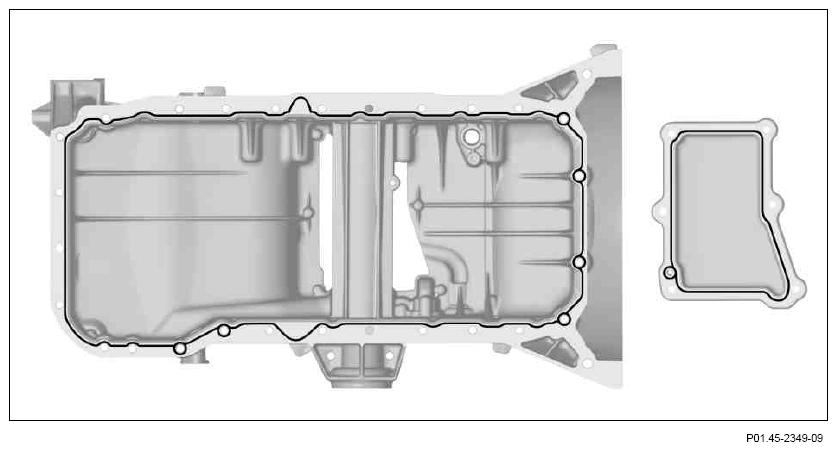

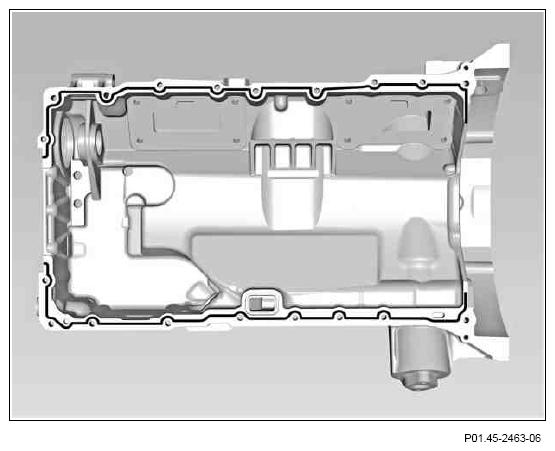

Engine 133, 260, 270
Only apply sealant to specified surfaces in form of a bead with a height and width of 2.0 mm (±1.0 mm).
Process the sealant within a period of 10 minutes.
Install oil pan within 10 min after application of sealant.

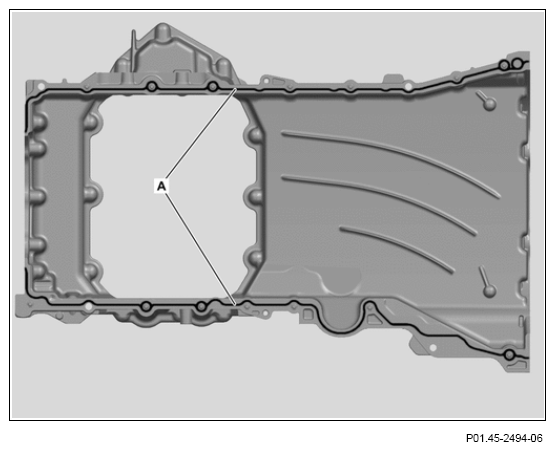

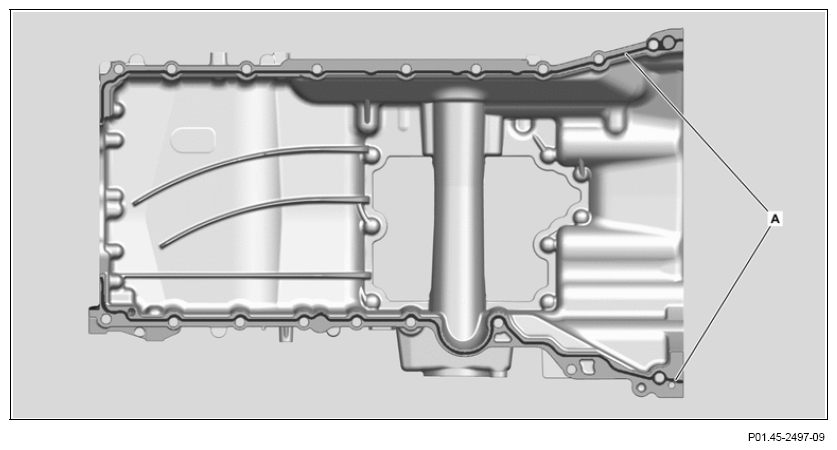

Oil pan with front sump except code M005 (4MATIC)
Engine 152.9, 157, 278
Only apply sealant to specified surfaces in form of a bead with a height and width of 2.0 mm (±1.0 mm).
Process the sealant within a period of 10 minutes.
Install oil pan within 10 min after application of sealant.

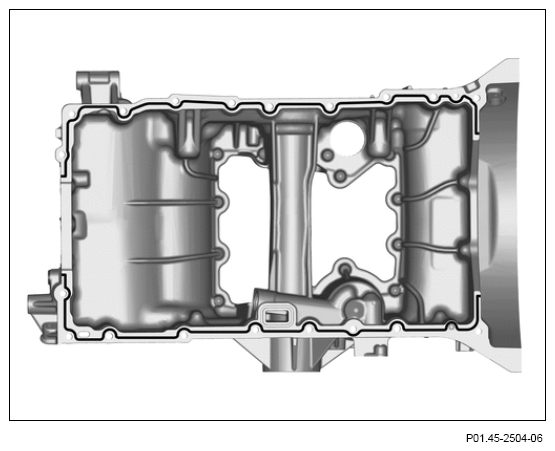

Oil pan with middle sump with code M005 (4MATIC)
Engine 152.9, 157, 278
Only apply sealant to specified surfaces in form of a bead with a height and width of 2.0 mm (±1.0 mm).
Process the sealant within a period of 10 minutes.
Install oil pan within 10 min after application of sealant.
Oil pan with rear sump except code M005 (4MATIC)
Engine 152.9, 157, 278
Only apply sealant to specified surfaces in form of a bead with a height and width of 2.0 mm (±1.0 mm).
Process the sealant within a period of 10 minutes.
Install oil pan within 10 min after application of sealant.

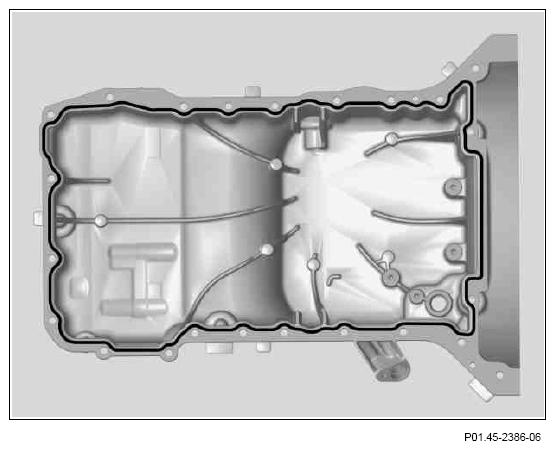

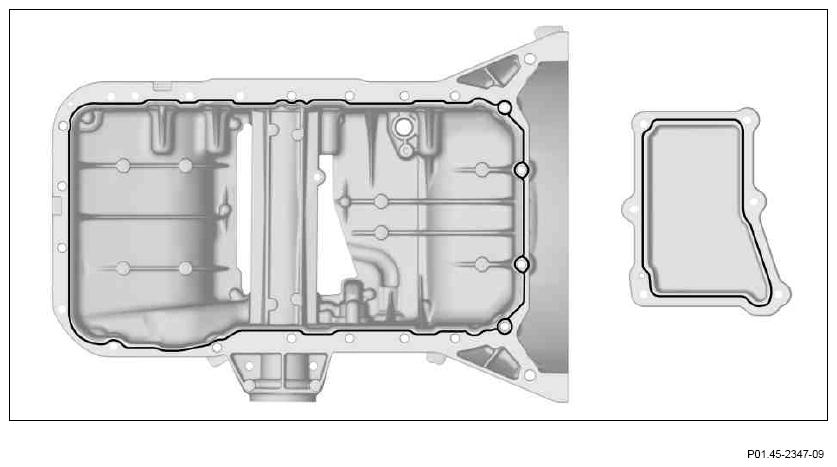

Engine 176, 177
Only apply sealant to specified surfaces in form of a bead with a height and width of 2.0 mm (±1.0 mm).
Process the sealant within a period of 10 minutes.
Install oil pan within 10 min after application of sealant.
Oil pan without code M005 (4MATIC)
Engine 176, 177
Only apply sealant to specified surfaces in form of a bead with a height and width of 2.0 mm (±1.0 mm).
Process the sealant within a period of 10 minutes.
Install oil pan within 10 min after application of sealant.
Oil pan with code M005 (4MATIC)

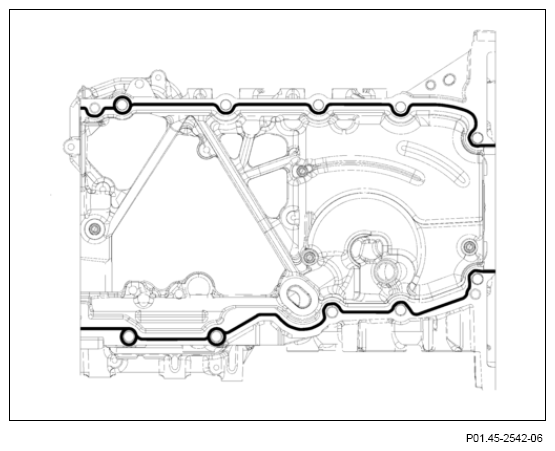

Engine 178
The sealant may only be applied to the specified surfaces in the form of a bead with a height and width of 2.0 mm (±1.5 mm).
The sealant must be processed within 7 minutes.
Install oil pan within 7 min application of sealant.

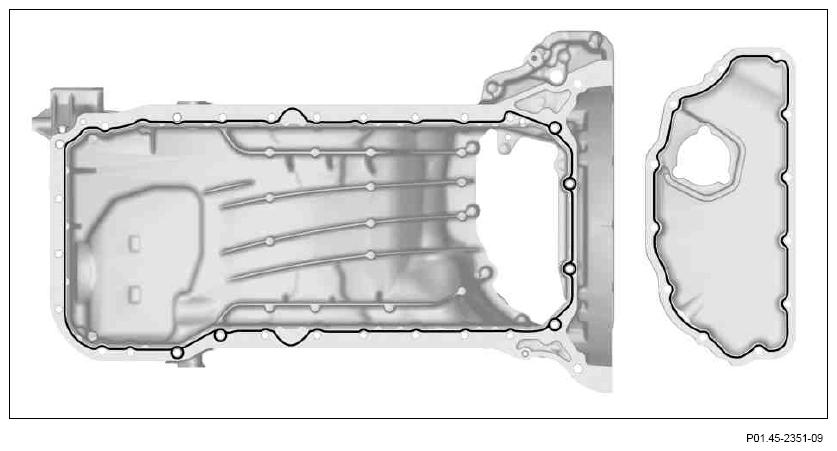

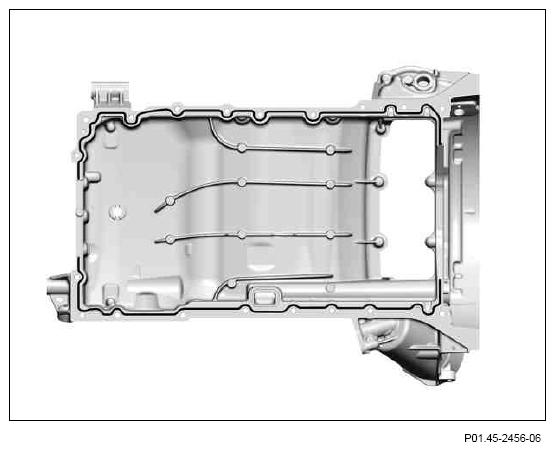

Engine 256
The sealant may only be applied to the specified surfaces in the form of a bead with a height and width of 1.5 mm (±1.0 mm).
The sealant must be processed within 7 minutes.
The entire assembly time, from the start of sealant application may not exceed 13 minutes.
Assembly part temperature: min. +7°C to max. +25°C Sealant temperature: min. +7°C to max. +25°C
Oil pan with front sump except code M005 (4MATIC)
Oil pan with middle sump with code M005 (4MATIC)

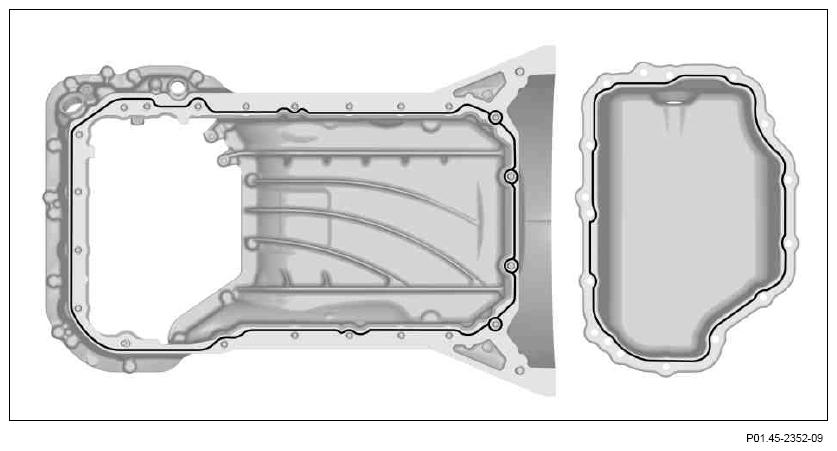

Engine 256
The sealant may only be applied to the specified surfaces in the form of a bead with a height and width of 1.5 mm (±1.0 mm).
The sealant must be processed within 7 minutes.
The entire assembly time, from the start of sealant application may not exceed 13 minutes.
Assembly part temperature: min. +7°C to max. +25°C
Sealant temperature: min. +7°C to max. +25°C

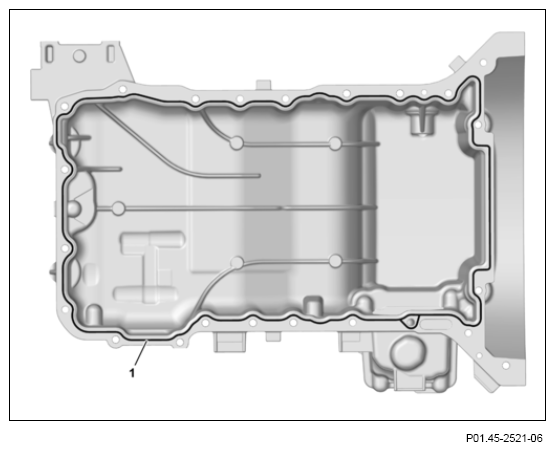

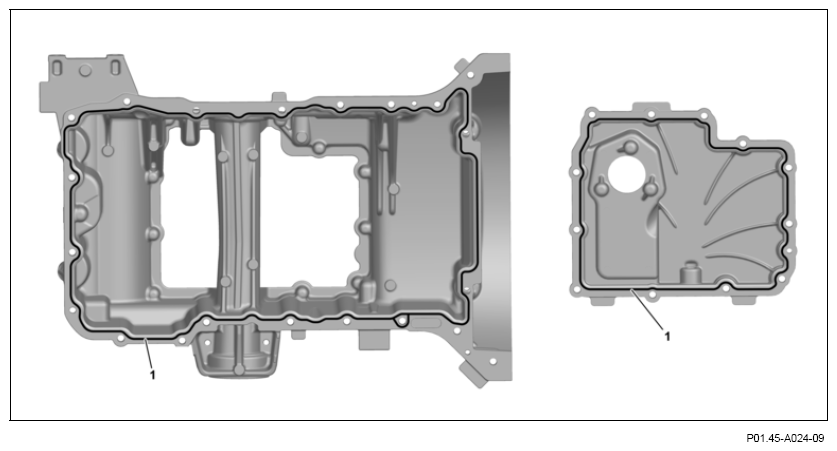

Engine 264 in model 205, 213, 238, 257, 222
The sealant (1) may only be applied to the specified surfaces in the form of a bead with a height and width of 2.0 mm (±0.5 mm).
The entire assembly time, from the start of sealant application may not exceed 13 minutes.
Oil pan without code M005 (4MATIC)
Oil pan top section with middle sump and oil pan bottom section with code M005 (4MATIC)

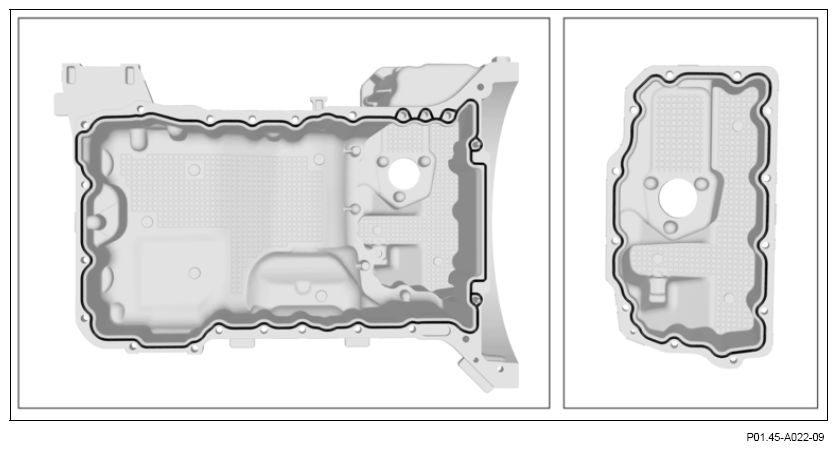

Engine 264 in model 205, 213, 238, 253, 257
The sealant (1) may only be applied to the specified surfaces in the form of a bead with a height and width of 2.0 mm (±0.5 mm).
The entire assembly time, from the start of sealant application may not exceed 13 minutes.
Oil pan top section to oil pan bottom section

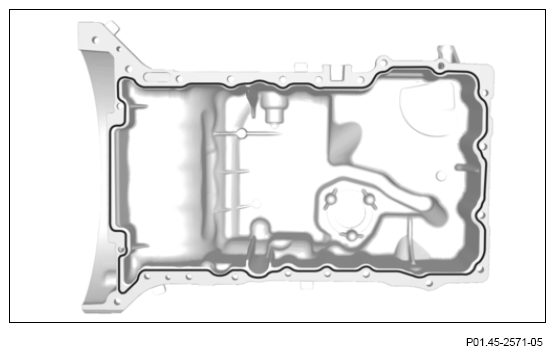

Engine 264 in model 167
The sealant may only be applied to the specified surfaces in the form of a bead with a height and a width of 2.0 mm (±0.3 mm).
The entire assembly time, from the start of sealant application may not exceed 13 minutes.
Only use sealant in a temperature range of +7°C to +25°C.

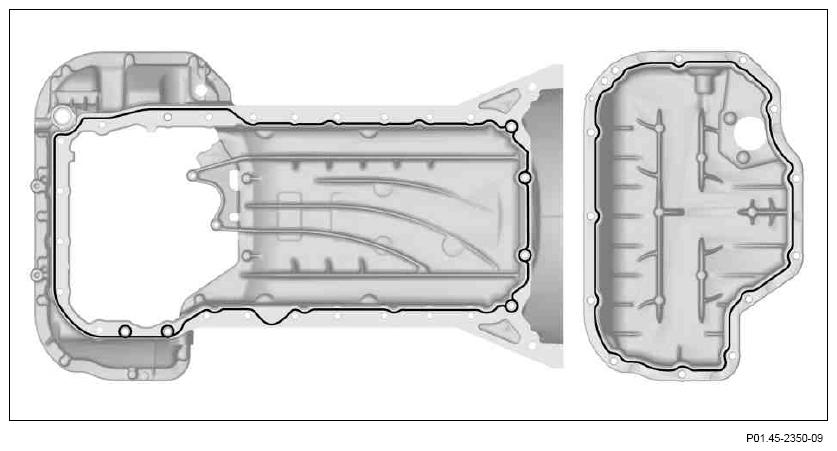

Engine 274
Only apply sealant to specified surfaces in form of a bead with a height and width of 2.0 mm (±1.0 mm).
Process the sealant within a period of 10 minutes.
Install oil pan within 10 min after application of sealant.
Oil pan with front sump except code M005 (4MATIC)
Engine 276
The sealant may only be applied to the specified surfaces in the form of a bead with a height and a width of 2.0 mm (±1.0 mm).
The sealant must be applied within 10 minutes.
Install oil pan within 10 min after application of sealant.
Oil pan with middle sump with code M005 (4MATIC)
Engine 276
The sealant may only be applied to the specified surfaces in the form of a bead with a height and a width of 2.0 mm (±1.0 mm).
The sealant must be applied within 10 minutes.
Install oil pan within 10 min after application of sealant.
Oil pan with rear sump except code M005 (4MATIC)
Engine 276
The sealant may only be applied to the specified surfaces in the form of a bead with a height and a width of 2.0 mm (±1.0 mm).
The sealant must be applied within 10 minutes.
Install oil pan within 10 min after application of sealant.

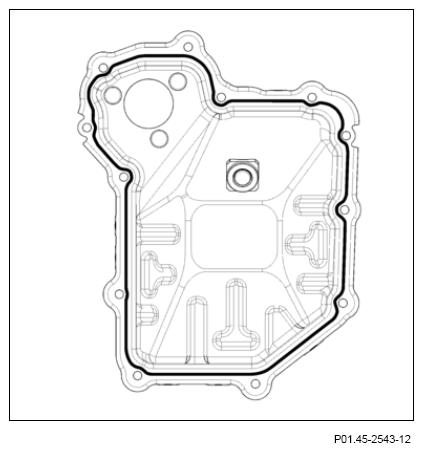

Engine 282
Apply sealant at specified surfaces only as a bead with a height and width of 1.5 mm to 2.5 mm.
The entire assembly time, from the start of sealant application may not exceed 13 minutes.
Only use sealant in a temperature range of +7°C to +25°C.
Oil pan bottom section
Engine 282
Apply sealant at specified surfaces only as a bead with a height and width of 1.5 mm to 2.5 mm.
The entire assembly time, from the start of sealant application may not exceed 13 minutes.
Only use sealant in a temperature range of +7°C to +25°C.
Oil pan top section
