Remove/Install Fuel Filler Flap Central Locking Actuator - AR80.20-P-4004MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 247

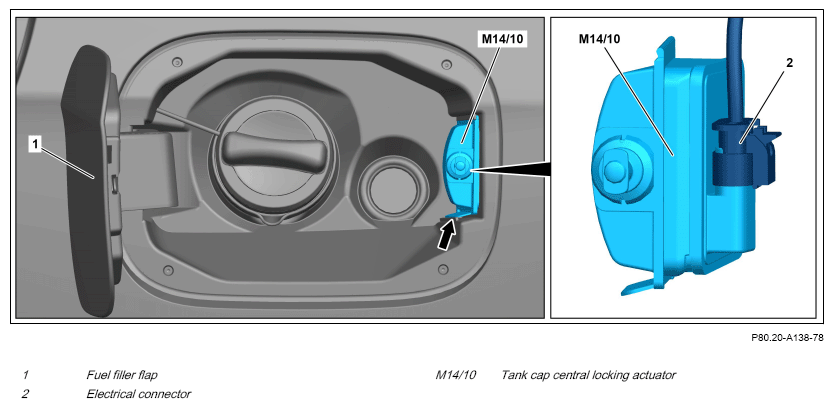

Fig 1: Fuel Filler Flap Central Locking Actuator Components Location - Model 118 (Shown On Model 177)
Shown On Model 177
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Open fuel filler flap (1). | ||
| 2 | Unclip fuel filler cap central locking system actuator (M14/10) at tank filler recess (arrow). | ||
| 3 | Pull out fuel filler cap central locking system actuator (M14/10) to extent that electrical connector (2) can be accessed. | Otherwise this can lead to damage to the line and can impair its function. |
|
| 4 | Release and disconnect the electrical connector (2). | ||
| 5 | Remove fuel filler cap central locking system actuator (M14/10). | ||
| 6 | Install in the reverse order. |
