Prepare Window For Installation - AR67.10-P-1000-03MFA

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 118, 177, 243, 247

Notes on safety-relevant components

AH00.00-Z-0019-01A

The bonding area on the windshield (1) must be absolutely free of dust and grease.

Otherwise the adhesive force of the adhesive material starts to decrease when installing the window.

Check windshield (1) or rear window for scratches and damage.
If the windshield (1) or rear window is used again.

If there is a problem,

↓

replace windshield (1) or rear window.
Coat over display window (2) for the vehicle identification number on the inside of the windshield (1) with the primer contained in the repair kit.
If a new windshield (1) is installed and the display window (2) is not required.

Do not coat over the adjustment marks for the windshield wiper (3).

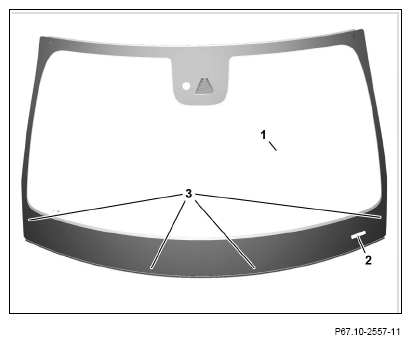

Shown on the windshield (1)

Courtesy of MERCEDES-BENZ USA
Fasten electrical connectors to the rear window (4) with fabric tape.
If electrical connectors are installed.
Remove remaining adhesive material from front or rear window (4) with a suitable scraper up to a height of approx. 2 mm and remove loose remaining adhesive material.
If the windshield or rear window (4) is used again.

Courtesy of MERCEDES-BENZ USA

The bonding area on the rear window (4) must be absolutely free of dust and grease.

Otherwise the adhesive force of the adhesive material starts to decrease when installing the window.
Repair damaged primer coat on the windshield or rear window (4) with the primer contained in the repair kit.
If the windshield or rear window (4) is used again. The primer must flash off for at least 10 min.

Otherwise the adhesive effect of the adhesive material will be impaired.
Apply cleaner (activator) contained in the repair kit to the bonding area on the windshield or rear window (4) and rub with a dry cloth.
If new windshield or rear window (4) is installed.
Coat bonding area on the windshield or rear window (4) with the primer contained in the repair kit.
If new windshield or rear window (4) is installed.

The primer must flash off for at least 10 min.

Otherwise the adhesive effect of the adhesive material will be impaired.

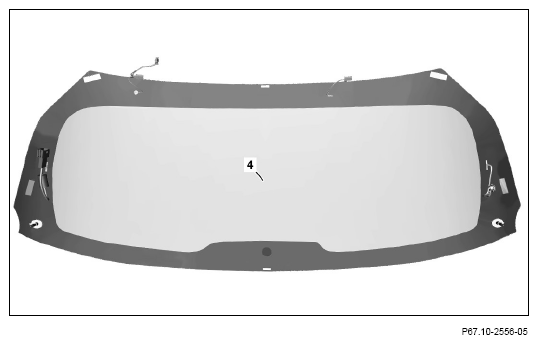

Shown on the rear window (4)
